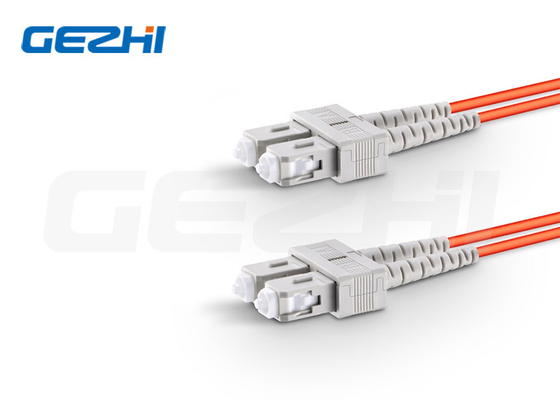

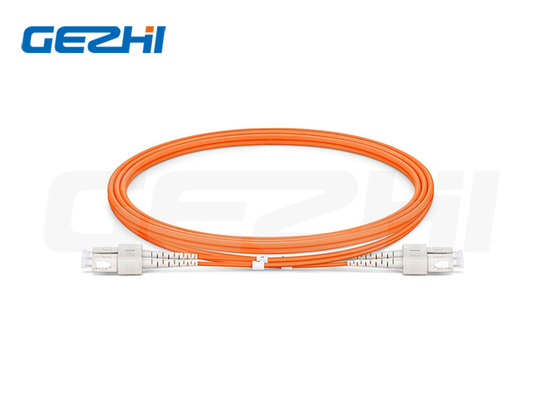

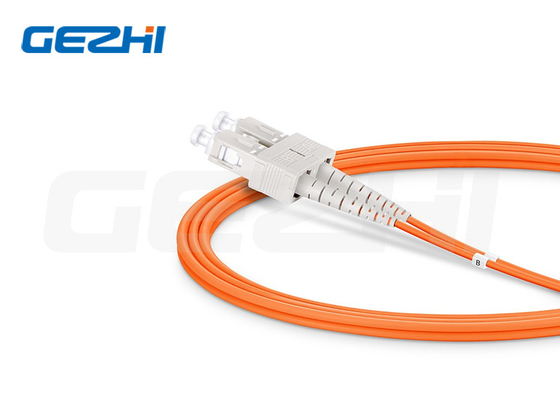

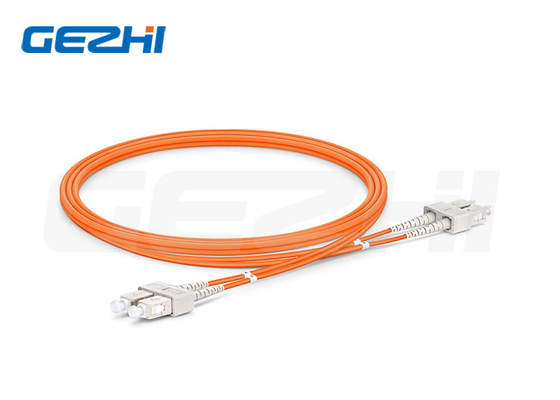

SC UPC To SC UPC Duplex OM1 Multimode Patch Cord For CATV Network

Name: SC UPC To SC UPC Duplex OM1 Multimode Patch Cord For CATV Network
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-OM1xxxx
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI
Model Number:	GZ-OM1xxxx

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Port:

Duplex

Wavelength:

850/1300nm

Connetor:

SC UPC To SC UPC

Fiber Grade:

G.651

Cable Jacket:

PVC

Application:

CATV Network

Highlight:

Multimode Patch Cord for CATV

OM1 Multimode Patch Cord

Duplex Multimode Patch Cord

Product Description

Product Description:

SC UPC to SC UPC Duplex OM1 Multimode Patch Cord for CATV Network

OM1 Patch Cord

The 62.5/125μm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.

This 62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.

Features

◆Low insertion loss
◆ High back reflection loss
◆ Stable capability and high reliability
◆Excellent mechanical capability
◆ PVC jacket as default
◆Ideal solution for high-speed data transmission
◆100% inspected for optical characteristics before shipment

Applications

◆Optical fiber communications system
◆Optical fiber access networks
◆Optical fiber CATV
◆Optical fiber test equipment
◆Optical fiber data communication

Technical Parameters

Fiber Type	Multimode OM1 62.5/125µm	Fiber Count	Duplex (2-fiber)
Connector Type	SC to SC	Polish	UPC to UPC
Cable Length	1m,2m,3m … 50m or Customize	Cable Diameter	2.0 mm
Tensile Strength	70 N	Length Tolerance	+/- 1cm
Insertion Loss	≤0.3dB	Return Loss	≥20dB
Repeatability	≤0.2dB	Interchangeability	≤0.2dB
Jacket Material	PVC (OFNR riser-rated)	Jacket Color	Orange
Environment	Operating: -20°C to 70°C Storage: -40°C to 85°C	Compliance	Telcordia GR-326-CORE RoHS compliant
Application	Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication	Application	Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations

SC UPC To SC UPC Duplex OM1 Multimode Patch Cord For CATV Network 0

FAQ

Q1:Can I have a sample order? What is your of OM1 Patch Cord?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of OM1 Patch Cord?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of OM1 Patch Cord?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
