| Brand Name: | GEZHI |
| Model Number: | GZ-LC Pigtail |
Product Description:

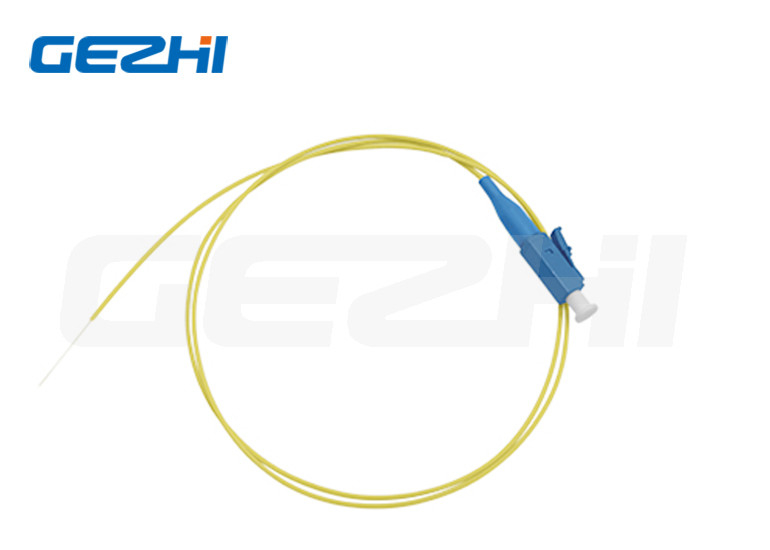

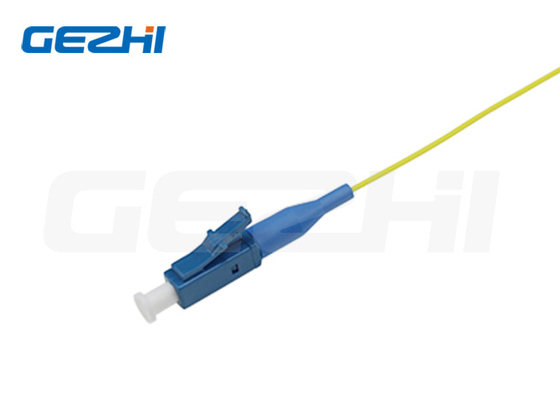

LC UPC Simplex Fiber Optic Pigtail for Test Equipment
Fiber Pigtail
Our pigtails are superior quality, and has up to 0,2dB insertion loss. Pigtails comply with ROHS requirements and feature high corrosion resistance and high interface performance. LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the ST. Incorrect connection of fiber is prevented by a special key. The UPC (Ultra Physical Contact) type fiber optic connectors lower the attenuation loss with a better surface finish.
Features
◆Low Smoke Zero Halogen (LSZH) buffer
◆900 micron buffer
◆Low bend loss design
◆Fully compatible with legacy fibers
◆Economical bend loss performance
◆Optical attenuation that is flat across the C & L-Bands
◆Complied the standards of ITU-T G.652.D ITU-T G.657.A
Applications
◆Telecommunication Networks
◆CATV Networks
◆Active Device Termination
◆LAN
◆Data System Networks
Technical Parameters
| Parameter | LC Connector | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Ferrule Concentricity | ≤1um | ≤4um | ||
FAQ
|
|
