| Brand Name: | GEZHI |
| Model Number: | GZ-STP100X |
Product Description:

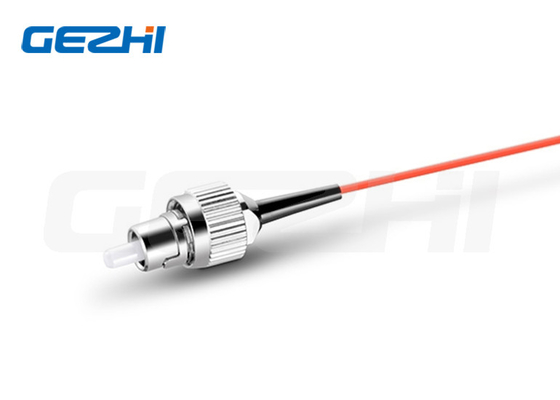

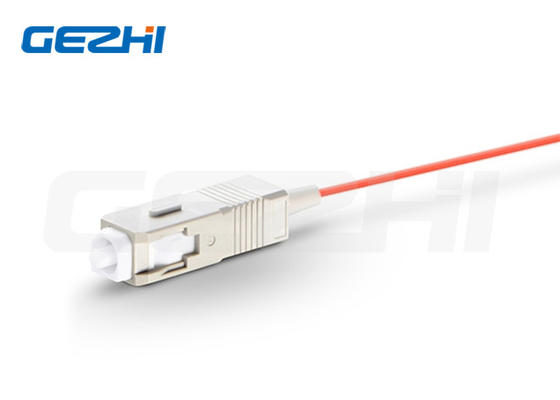

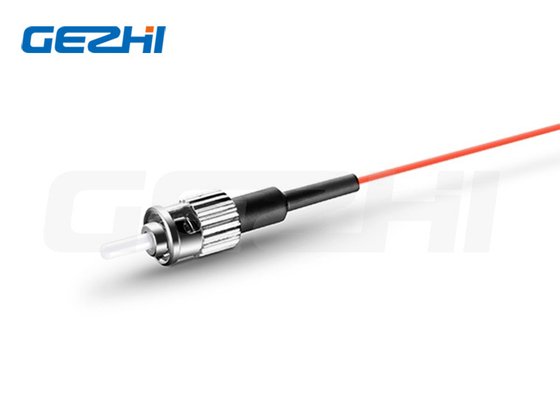

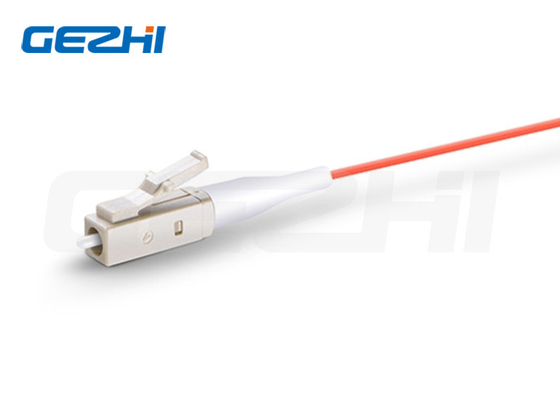

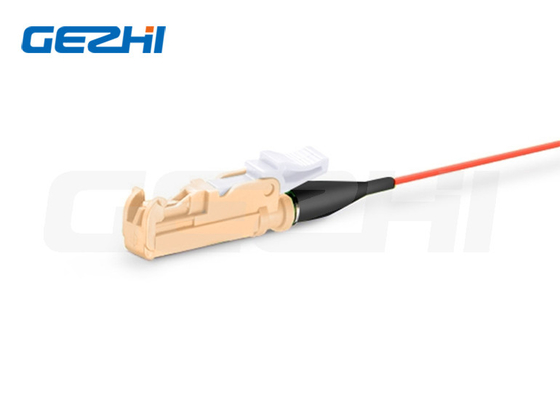

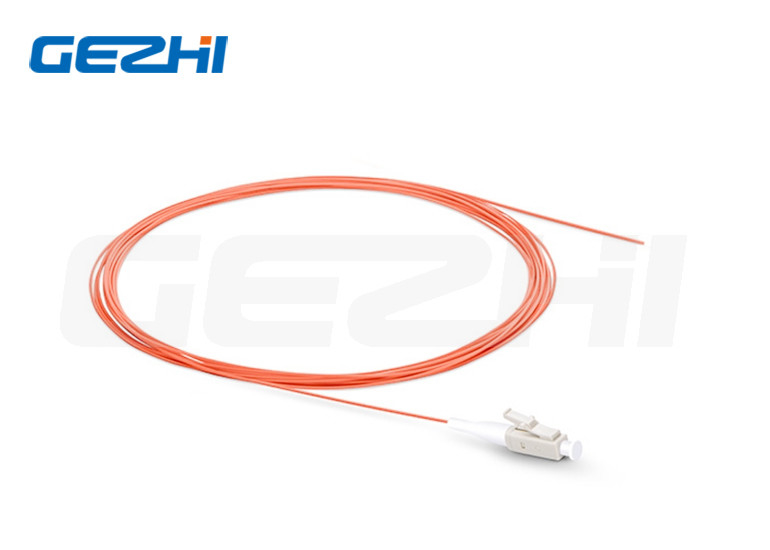

Customized Simplex OM1/OM2 LC/SC/FC/ST/LSH Fiber Optic Pigtail
Fiber Pigtail
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Features
◆Low insertion loss
◆ High back reflection loss
◆ Stable capability and high reliability
◆Boots in a variety of colors
◆ 100% inspected for optical characteristics before shipment
◆ Customized specifications are available
Applications
◆CATV,
◆FTTH/FTTX,
◆Telecommunication networks,
◆Premise installations,
◆Data processing networks,
◆LAN/WAN network,
Technical Parameters
|
Connector Type
LC/SC/FC/ST/LSH
Polish Type
UPC
Fiber Mode
OM1/OM2
Wavelength
850/1300 nm
Fiber Count
Simplex
Cable Jacket
PVC/LSZH/OFNP
Fiber Grade
G.651 (OM1)/Bend Insensitive (OM2)
Minimum Bend Radius
15 mm/7.5 mm
Cable Diameter
0.9/2.0 mm
Jacket Color
Orange
Insertion Loss
≤0.3 dB
Return Loss
≥20 dB
Attenuation at 850nm
3.0 dB/km
Attenuation at 1300nm
1.0 dB/km
Operating Temperature
-40~75°C
Storage Temperature
-45~85°C
|
FAQ
|
|
