| Brand Name: | GEZHI |
| Model Number: | GZ-STP100X |
Product Description:

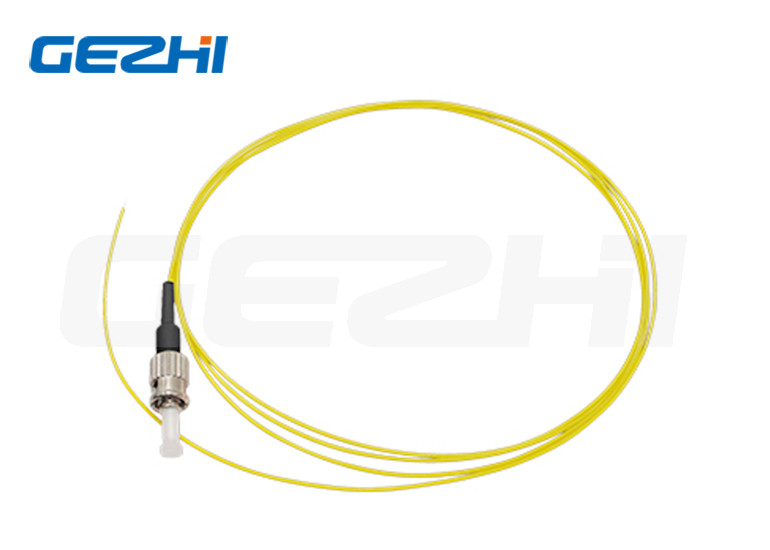

ST/UPC Singlemode 9/125µm 1310 nm/1550 nm Fiber Optic Pigtail
ST/UPC Fiber Pigtail
We offer simplex ST single-mode fiber optic pigtails at a very competitive price. Our ST single-mode fiber optic pigtail comprises an exposed 9/125μm fiber cable at one end and a pre-installed simplex ST connector at the other end. The fiber optic pigtails are commonly used to splice the fiber in the cable so that they can be connected to the patch panel or equipment. This pigtail features a typical 900μm tight-buffered cable as default. Available in different lengths, jacket materials, polish, and cable diameters,our fiber optic pigtail can be ordered to customize any fiber optic protocol to meet your different network applications.
Features
◆Low insertion loss
◆ High back reflection loss
◆ Stable capability and high reliability
◆UPC polish as default
◆Boots in a variety of colors
◆ PVC jacket as default, LSZH optional
◆0.9mm as default, 2.0mm and 3.0mm cable optional
◆ 100% inspected for optical characteristics before shipment
◆ Customized specifications are available
Technical Parameters
| Fiber Type | 9/125µm Singlemode | Fiber Count | Simplex |
| Connector Type | ST | Polish | UPC |
| Cable Length | 1m,2m,3m …5m or Customize | Cable Diameter | 0.9 mm as default |
| Tensile Strength | 5N (0.9mm), 70N (2.0mm) | Length Tolerance | +/- 1cm |
| Insertion Loss | ≤0.2dB | Return Loss | ≥50dB |
| Repeatability | ≤0.2dB | Interchangeability | ≤0.2dB |
| Jacket Material | PVC (OFNR riser-rated) as default | Jacket Color | Yellow |
| Environment | Operating: -20°C to 70°C Storage: -40°C to 85°C |
Compliance | RoHS |
| Application | Optical fiber communications system Optical fiber access networks Optical fiber CATV Optical fiber test equipment Optical fiber data communication |
Application | Premises Distribution Local Area Networks (LAN) Fiber-to-the-Home (FTTX) Device Terminations |
