Product Description:

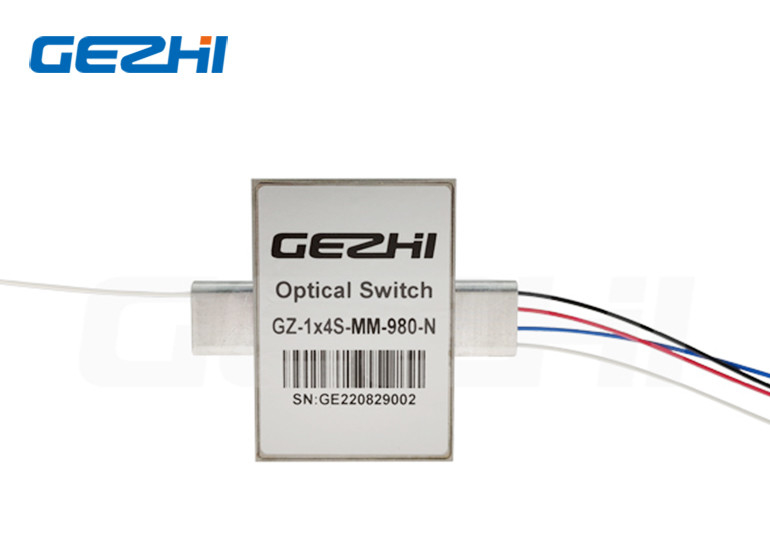

1x4S 105/125um fiber Optical Switch for Fiber Sensor
1x4S Optical Switch
This 1x4S Optical Switches from GEZHI Photonics is used 105/125um large core fiber. Which support 780nm, 850nm, 980nm, 1060nm, 1310nm, 1550nm or customized wavelength. The 105/125um fiber 1x4 Optical Switches is with Low insertion loss, High stability and Reliability and High Cross talk. Which widely used in Medical, Fiber sensor, Research, Laser and Aerospace etc.
Features
◆Low insertion Loss
◆High Channel Isolation
◆High Stability, High Reliability
◆Latching or Non-latching
Technical Parameters
|
Parameters |
GZ-1x4S | |
| Operating Wavelength | nm | 780, 980, 1060, 1310,1550 etc |
| Insertion Loss | dB | ≤1.5 |
| Wavelength Dependent Loss | dB | ≤0.40 |
| Polarization Dependent Loss | dB | ≤0.05 |
| Temperature Dependent Loss | dB | ≤0.20 |
| Return Loss | dB | SM≥50 MM≥30 |
| Cross Talk | dB | SM≥55 MM≥35 |
| Switch Time | ms | ≤8 |
| Repeatability | dB | ≤±0.02 |
| Durability | times | ≥107 |
| Operating Voltage | V | 3 or 5 |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | ℃ | －20~＋70 |
| Storage Temperature | ℃ | －40~＋85 |
| Optical Power | mw | 500, 1000, 2000, 5000, 10000 etc |
| Dimension | mm | 52.7.0L×37.2W×10.0H |
Optical Route
Dimension
Odering Information
| GZ | Mode | Wavelength | Voltage Type | Control Model | Working Power | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| 1x4S |
S=SM M=MM |
780=780nm 85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm 980=980nm 1060=1060nm S=Specify |
3=3V 5=5V |
L=Latching N=Non- Latching |
N=500mw 1=1W 2=2W 5=5W 10=10W S=Specify |
5=50/125 6=62.5/125 9=9/125 1=105/125 S=Specify |
25=250um 90=900um 20=2.0mm S=Specify |
05=0.5m 10=1.0m S=Specify |
00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/PC LA=LC/APC S=Specify |
