| Brand Name: | GEZHI |
| Model Number: | GZ-OLS100X |
Product Description:

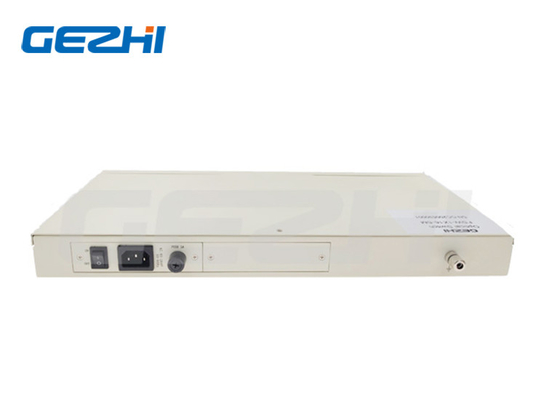

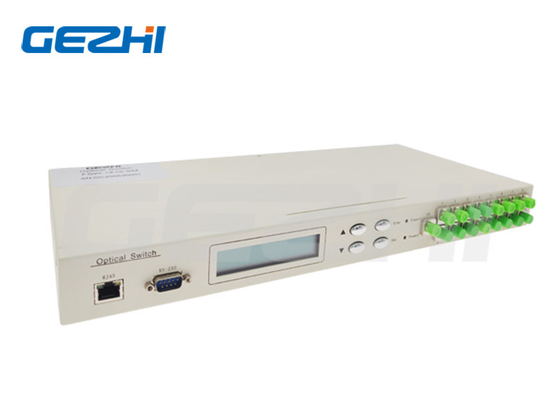

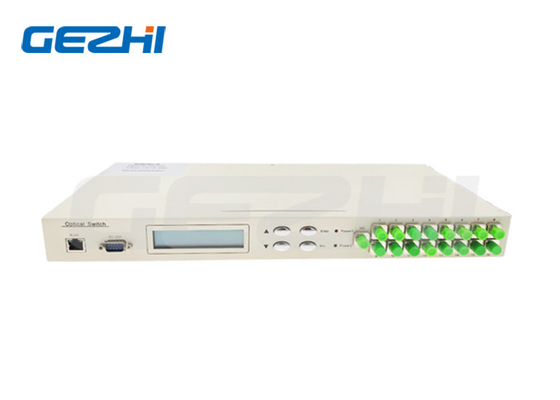

Multi-channel Singlemode Multimode Optical Link Selector Optical Switch
Multi-channel Optical Link Selector Optical Switch
Optical Link selector is mainly used in multi-channel optical monitoring of optical transmission system, LAN multi-source/detector auto-exchange, optical sensing multi-point dynamic monitoring system, cable test of optical fiber, optical devices, networks and field projects in optical test system, optical device debugging and installation, monitoring multi-link network data security in data security,etc.
Features
◆ Low insertion loss, fast switching
◆ Hot backup of double power supply, support hot-plugging.
◆ LED display panel. Visual display, convenient operation.
◆ Transparent transmission signal. High stability and reliability.
◆ Channel and time interval of automatic scanning can be set up.
◆ Support WEB,SNMP,TELNET,SSH, FTP log download,etc.
Technical Parameters
| Parameters | Unit | Indicators | |
| Channel No. | 16 to 2(D1×8) | 32 to 2(D1×16) | |
| Test Wavelength | nm | 1310 / 1550 | |
| Insertion Loss | dB | Typ: £ 0.6dB, Max: £ 1.0 dB | |
| Repeatability | dB | ≤ ±0.02 | |
| Return Loss | dB | ≥ 45 | |
| Crosstalk | dB | ≥ 70 | |
| WDL | dB | ≤ 0.25 | |
| PDL | dB | ≤ 0.1 | |
| Switching Time | ms | £ 10 ms(Sequence switch time of adjacent channel) | |
| Fiber Type | SM(9/125um) | ||
| Connector | LC / PC | ||
| Monitoring Port | RJ45,RS-232 | ||
| Working Power Supply(Plug-type) | V | AC:100 ～ 240(50/60Hz) or DC: 36 ～ 72 | |
| Power Consumption | W | ＜ 10 | |
| Operating Temperature | ℃ | -5 ～ 55 | |
OBP Module(Multi Channel Optical Switch) Working Theory
Odering Information
| Channel No. | Fiber Type | Operating Wavelength | Power Supply Mode | Connector | Chassis Size |
|
D1×8: 16 to 2 D1×16: 32 to 2 X:Others
|
SM:9/125 Single mode M6:62.5/125 multimode X: Others |
13/15: 1310/1550nm 850: 850nm X: Others |
AC: 100~240V DC: 36~72V AC/DC:100~240V&36~72V AC/AC: dual 100~240V DC/DC:dual 36~72V X: Others |
LP: LC/PC X: Others |
1U:482.6×250×44mm 2U:482.6×303×89mm X: Others |
FAQ
|
|
