| Brand Name: | GEZHI or OEM |
| Model Number: | FSW-1x8-Rack |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |
Desktop 1×8 Optical Switch Equipment RS-232 control Easy Operation
GEZHI's Desktop 1×8 Optical Switch Equipment RS-232 is the use of optical switch to realize optical path conversion products. Equipment each light path design a control button, Also can control the light path through the RS - 232 instructions, can be quickly switch button simple optical path and ultimately achieve 1 (input) * N (output) core optical fiber routing strictly non-blocking two-way cross connection, plays an important role in the optical communication applications.
In optical fiber transmission system, The Desktop 1×8 Optical Switch Equipment RS-232 control is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Features
Low insertion loss, Fast switching
SerialNet, High Reliability, High Stability
Each channel LED lights display status
Each channel button control independently
RS - 232 serial port command control switch
Applications
Cable Monitoring and Maintaining system
Optical Network Remote Monitoring
FITL
Automatic Measurement
Specification
| Parameters | Unit | Indicators |
| Unit Type | FSW-1X8-TR | |
| Wavelength Range | nm | 1260~1650 |
| Test Wavelength | nm | 1310/1550nm |
| Insertion Loss | dB | Typ. ≤0.8dB,Max.≤1.5 dB |
| Repeatability | dB | ≤ 0.02 |
| Return Loss | dB | ≥ 55 |
| Crosstalk | dB | ≥ 70 |
| WDL | dB | ≤ 0.25 |
| PDL | dB | ≤ 0.05 |
| Optical Power | mW | ≤ 500 |
| Switching Time | ms | ≤12 ms(adjacent channel) |
| Fiber Type | um | 9/125 |
| Connector | FC/APC | |
| Control Mode | Key or RS-232 | |
|
Working Power Supply (Plug-type) |
V |
AC:100～ 240 (50/60Hz) |
| Power Consumption | W | ＜ 10 |
| Operating Temperature | ℃ | -10 ～ +60 |
| Size | mm |
(W)245 mm x (D)230 mm x (H)95 mm
|

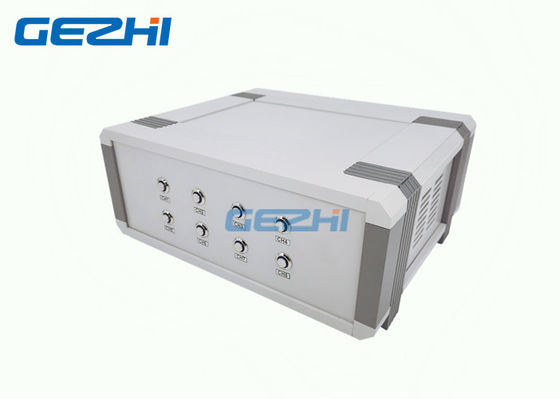

Fast switching Desktop 1×8 Optical Switch Equipment RS-232 control
Panel to Explain:
◆ 1~8: Light path switching button and indicator lights.

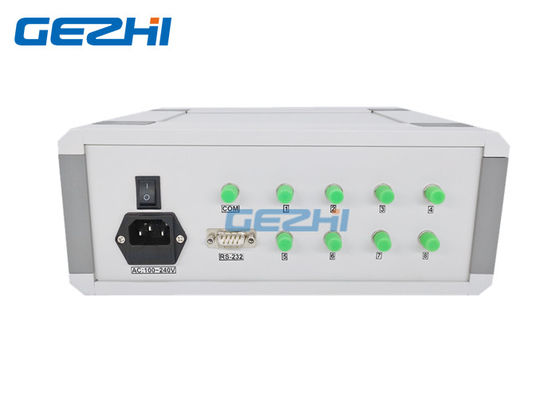

Back Panel
◆ AC:100~240V: Power supply interface
◆ ON/OFF: Power on and off
◆ COM:Optical fiber interface common terminal
◆ 1~8:Each channel of optical fiber interface
◆ RS-232: A serial port communication interface
Video
|
|
