| Brand Name: | GEZHI or OEM |
| Model Number: | FSW-48D1x2 |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

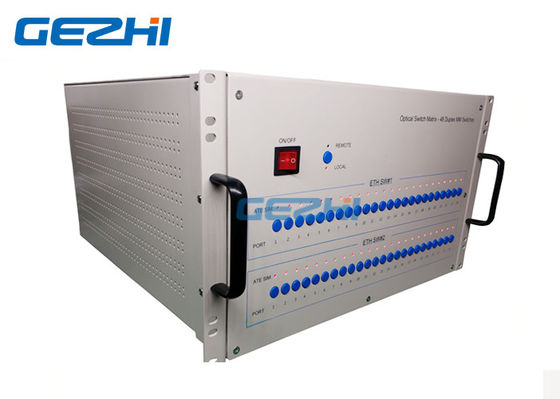

48pcs Duplex 1x2 Optical Switch Matrix Remote Control Programmable Optical Switches
GEZHI's 48pcs Duplex 1x2 Optical Switch Matrix Remote Control Programmable Optical Switches is a kind of light path control device. plays a control light path and convert the light path. The FSW-48D1x2 consists of 48pcs of Duplex 1x2 synchronous switch light path combinations of mechanical optical switch, optical switch light path control switch can be 48 button on the panel control, also can through the short-range RS - 232 serial port communication mode or remote RJ45 Ethernet communication by sending a program-controlled command control switch light path, equipment state of light path by the green light and red light shows light path.
Features
Low insertion loss, Fast switching
SerialNet, High Reliability, High Stability
RS232 Control and RJ45 Ethernet Remote Management
Remote and Local Control available
Channel and time interval of automatic scanning can be set up
Applications
FITL
Cable Monitoring and Maintaining system
Automatic Measurement
Optical Network Remote Monitoring
Specification
| Parameters | Unit | Indicators |
| Unit Type | FSW-48D1x2 | |
| Wavelength Range | nm |
850±40 or 1260~1650nm |
| Test Wavelength | nm |
850nm or 1310/1550nm |
| Insertion Loss | dB | Typ. ≤1.0dB, Max.≤1.5 dB |
| Repeatability | dB | ≤ 0.02 |
| Return Loss | dB |
MM≥30 SM≥55 |
| Crosstalk | dB |
MM≥35 SM≥ 70 |
| WDL | dB | ≤ 0.25 |
| PDL | dB | ≤ 0.05 |
| Optical Power | mW | ≤ 500 |
| Switching Time | ms | ≤10 ms(adjacent channel) |
| Fiber Type | um | 9/125 |
| Connector | LC/UPC | |
| Monitoring Port | RJ45 & RS-232 | |
|
Working Power Supply |
V |
AC:100～ 240 (50/60Hz) |
| Power Consumption | W | ＜ 10 |
| Operating Temperature | ℃ | -10 ～ 60 |
| Size | mm | 6U Rackmount |

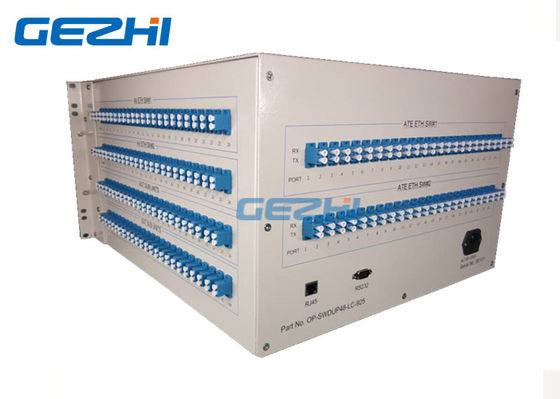

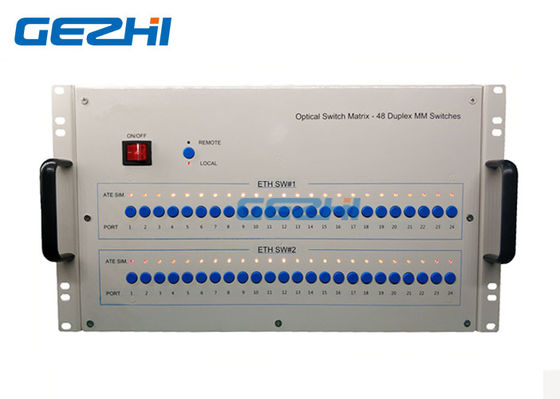

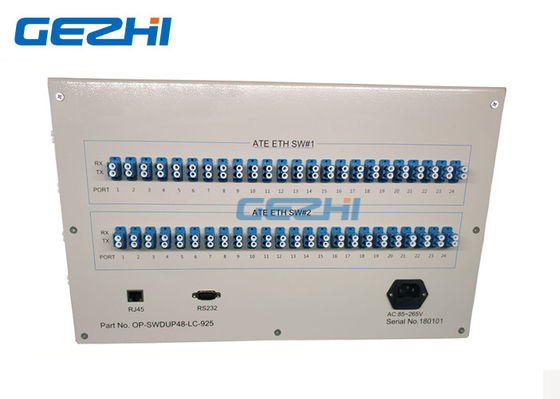

48pcs Duplex 1x2 Optical Switch Matrix Remote Control Programmable Optical Switches
◆Power: Master switch of power supply
◆RJ45:Communications network management interface ;
◆RS-232: Rs- serial interface ; RS232 serial communication interface;
◆AC:100~240V: Power cord interface;
