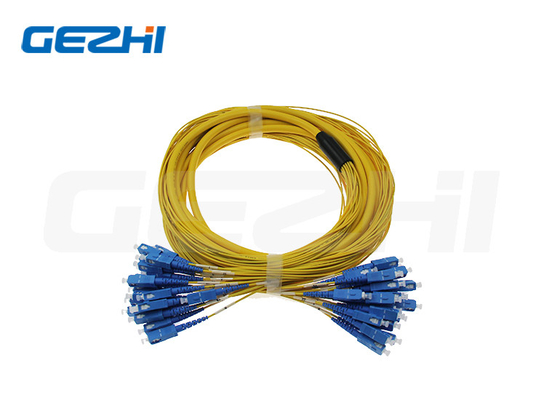

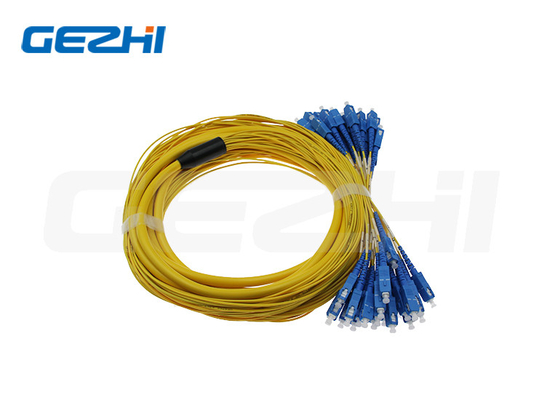

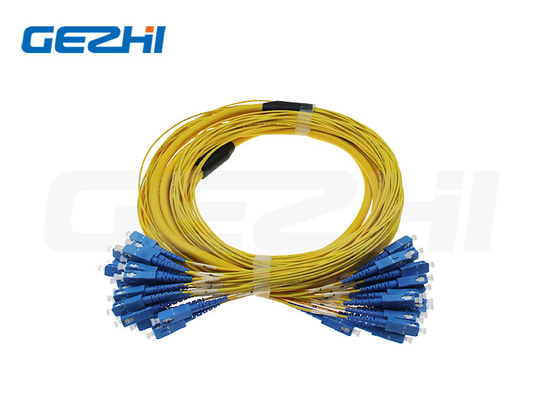

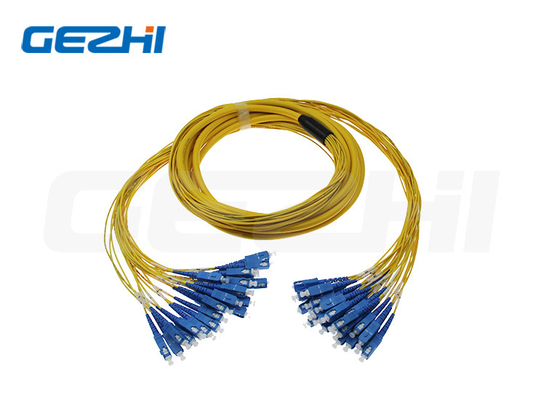

12 core Singlemode Indoor Fiber Optic Patch Cord with SC connector

Name: 12 core Singlemode Indoor Fiber Optic Patch Cord with SC connector
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: G-FPC200x
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	G-FPC200x
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Core:

Mode:

Singlemode

Connnector:

SC/UPC SC/APC Or Customized

Operating Temperature:

-40~+85°C

Warranty:

3 Years

Application:

Optical Access Network

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Product Description

Product Overview of 12 Core Patch Cord

12 core Singlemode Indoor Fiber Optic Patch Cord with SC connector

Fiber Patch Cord

GEZHI Photonics' Single Mode Patch cable are all-glass fibers supporting single-mode ligth propagation for many wavelength ranges like 460nm 630nm 780nm 980nm 1060nm 1950nm etc. Its features with low insertion loss, High stability and reliability which widely used in Optical Sensor, Research, Medical application.

We also provide Singlemode (SM) Patchcord/ optical jumper cord with customized specifications.

Features & Applications of 12 Core Patch Cord

Features

Pluggable structure, easy to intensive-installation
Low insertion loss and high return loss
High credibility and stability
Good in repeatability and exchangeability

Applications

Testing equipment
FTTX,LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specifications of 12 Core Patch Cord

Parameter		Single Mode			Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO
	Ferrule End-face	PC	UPC	APC	UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um			127um concentricity deviations:<=3um
	Suitable Fiber	9/125um			50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C

Other Types Connectors

12 core Singlemode Indoor Fiber Optic Patch Cord with SC connector 0

Odering Information of 12 Core Patch Cord

1st Connector

2nd Connector

Ferrule

Fiber Core

Cable Diameter

Fiber Type

Length

SMA905

FP=FC/UPC

FA=FC/APC

STP=ST/UPC

STA=ST/APC

S=Specify

SMA905

FP=FC/UPC

FA=FC/APC

STP=ST/UPC

STA=ST/APC

S=Specify

S=Stainless Steel

C=Ceramic

SX=Simplex

DX=Duplex

09=900um

20=2.0mm

30=3.0mm

S=Specify

S105/125

S200/240

S272/300

S365/400

S550/600

S=Specify

01=1M

02=2M

05=5M

10=10M

S=Specify

FAQ

Q1:Can I have a sample order? What is your MOQ of 12 core patch cord?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of 12 core patch cord?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of 12 core patch cord?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
