Product Overview of High Power Optical Switch

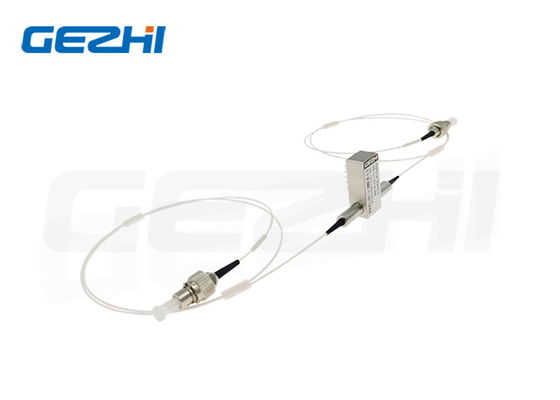

1×1, 1×2 High Power Fiber Optical Switch for Configurable OADM
High Power fiber optical Switch
GEZHI Photonics High Power 1×1, 1×2 fiber optical switches connects optical channels by redirecting an incoming optical signal into a selected output fiber. Latching operation preserves the selected optical path after the drive signal has been removed. The all High Power fiberoptic switch features low insertion loss, high extinction ratio, high channel isolation, and extremely high reliability and repeatability. It is designed to meet the most demanding switching requirements of continuous operation without failure, longevity, operation under shock/vibration environment and large temperature variations, and fast response time. The switch also has build-in Circulator and isolator functions. Electronic driver is available for this series of switches.Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
Features & Applications of High Power Optical Switch
|
Features Low Insertion Loss High Crosstal Compact package High Power |
Applications Configurable OADM Optical Cross & Connection system Network Monitor Optical Fiber Ring Protection |
Specifications of High Power Optical Switch
| Type | 1×1, 1×2 | ||
| Wavelength (nm) | 1310 +/30 or 1550+/-30 | 1310+/-30&1550+/-30 | |
| Insertion Loss (dB) | ≤0.7(Typ 0.6) | ≤0.9(Typ 0.7) | |
| Cross Talk (dB) | ≥55 | ≥55 | |
| Return Loss (dB) | ≥55 | ≥55 | |
| Repeatability (dB) | ≤±0.05 | ||
| Switch Time (ms) | 10 | ||
| Lifetime (cycle) | >1,000,000 | ||
| Switch mode | Latching or Non-latching | ||
| Operating Temperature (°C) | -5 ~ +70 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Drive Voltage (V) | 5 ±0.5 DC or 5V Pulse | ||
| Work Current (mA) | ＜50 | ||
| Power Handing(W) | <10 | ||
| Fiber Type | SMF-28e | ||
| Fiber length (m) | Read order information | ||
| Dimension (LxMxH) (mm) | (L)26.5×(W)13.4×(H)11 | ||
Package Dimension of High Power Optical Switch
| Type | Wavelength | Type | Power | Mode | Pigtail Type | Length | Connector |
| Handing | |||||||
| HPFSW | 1310=1310nm | 1×1 | 05W=5W | L=Latching | 25=250um bare | 05=0.5m | 0=None |
| 1X2 | 10W=10W | fiber | |||||
| 20W=20W | |||||||
| 1550=1550nm | N=Non-Latching | 90=900um loose | 10=1.0m | 1=FC/UPC | |||
| tube | |||||||
| 3155=1310/1550nm | 20=2mm cable | 2=FC/APC | |||||
| 3=SC/APC | |||||||
| 4=SC/UPC | |||||||
| 6=LC/PC |
|
|
