Product Overview of High Power In- Line Isolator
|

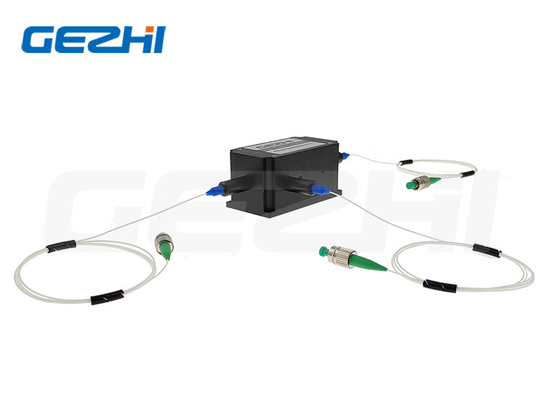

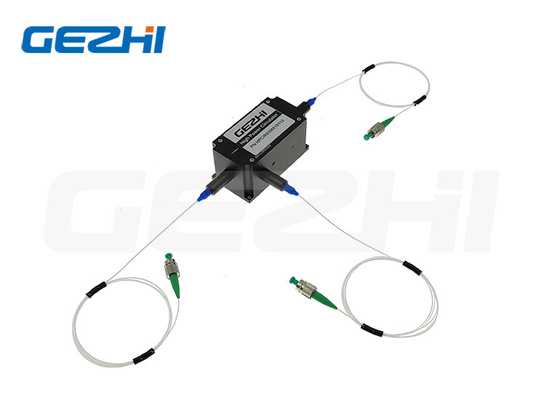

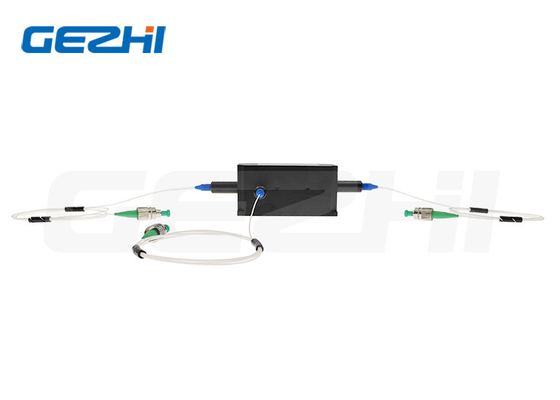

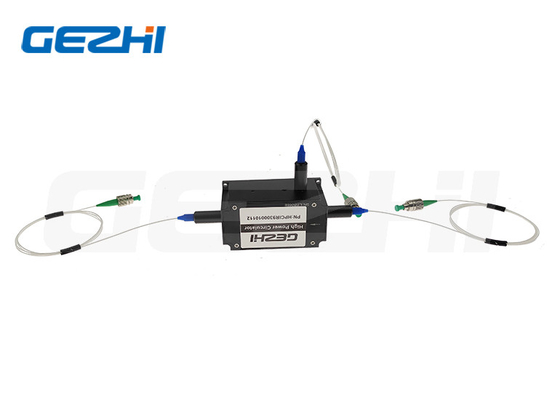

High Stability & Reliability 2000nm High Power In-line Isolator (up to 20W) for Fiber Sensor
High Power In-Line Isolator
GEZHI 2000nm High Power PM In-line Optical Isolator is a compact, high performance light wave Polarization Maintaining component that does not change its polarization state. They’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are most often used to prevent any reflected light from entering the source, thus preventing any feedback problems; it has been widely used in fiber laser system.
|
Features & Applications of High Power In- Line Isolator
Features:
•Low Insertion Loss
•High Power Handling
•High Isolation
•Fiber can be customized
•High Reliability
•Excellent Temperature Stability
Applications:
•High Power Fiber Lasers
•High Power Fiber Amplifier
•Instrumentation
•Test and Measurement
•Fiber Amplifier Lab Research
Specifications of High Power In- Line Isolator
| Parameter | Unit | Value | |
| Stage | - | Single | |
| Center Wavelength | nm | 2050, 2000, 1950 | |
| Operating Wavelength Range | nm | ±10 | |
| Min. Isolation at 23℃ | dB | 18 | |
| Max. Insertion Loss, λc at 23℃ | dB | 1.6 | |
| Min. Extinction Ratio (PM Fiber Type) | dB | 18 | |
| Max. Polarization Dependent Loss (SM Fiber Type) | dB | 0.15 | |
| Min. Return Loss at 23℃ (input/output) | dB | 45/45 | |
| Max. Optical Power (CW) | W | 1, 2, 5,..., 20 | |
| Max. Peak Power for ns pulse | kW | 10 or Specified | |
| Max. Tensile Load | N | 5 | |
| Package Dimensions | Input Power ≤5W | mm | φ5.5x35 |
| Input Power ≤10W | mm | 70x12x8 | |
| Input Power ≤20W | mm | 45x19x14 | |
| Operating Temperature | ℃ | 0~+70 | |
| Storage Temperature | ℃ | -40~+85 | |
|
With connectors, the handing power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. |
|||
Package Dimension
Odering Information of High Power In- Line Isolator
HPMIS-1111-23-444-56-7-88-99AA (PM Fiber Type) / HPIIS-1111-23-444-56-7-88-99AA (SM Fiber Type)
| 1111 - Wavelength: | 2050=2050nm, 2000=2000, 1950=1950nm, SSSS=Specified |
| 2 - Stage: | S=Single-core stage |
|
3 - Working Axis: F=Fast axis blocked, B=Both axis working, N=Non-PM |
B=Both axis working, F=Fast axis blocked, N=Non-PM |
| 444 - Fiber Type: | 001=PM1550, 008=SMF-28E, 045=PM1950, 090=SM1950, SSS=Specified |
| 5 - Package Dimension: | 0=φ5.5x35mm, 1=70x12x8mm, 2=45x19x14mm, S=Specified |
| 6 - Pigtail Type: | 0=bare fiber, 1=900μm loose tube |
| 7 - Fiber Length: | 0.8=0.8m, 1.0=1m, S=Specified |
| 88 - Connector Type: | 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
| 99 - Average Power: | 01=1W, 05=5W, 10=10W, 20=20W, SS=Specified |
| AA - Peak Power: | 00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, SS=Specified |
FAQ
