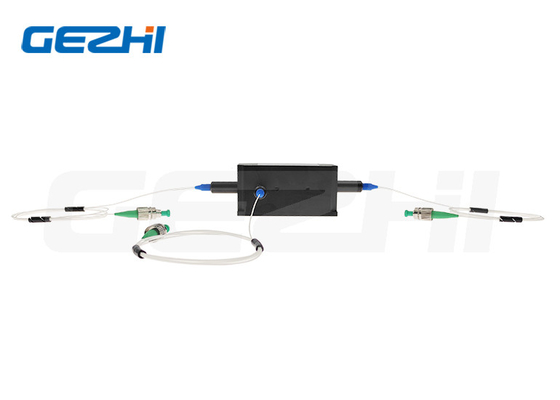

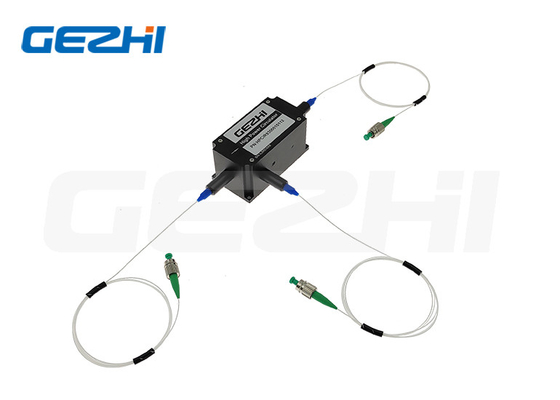

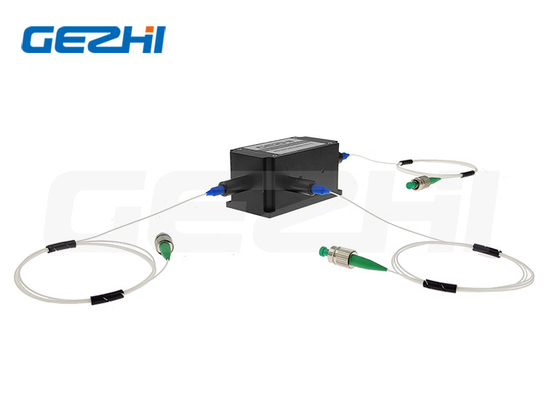

780-2050nm High Power PM Fused Coupler 20W High Reliability For Fiber Sensor

Name: 780-2050nm High Power PM Fused Coupler 20W High Reliability For Fiber Sensor
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: High Power Coupler
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	High Power Coupler
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

High Power Coupler

Wavelength:

780nm-2050nm

Fiber Type:

PM Fiber

Warranty:

3 Years

Application:

Fiber Sensor

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

High Power PM Fused Coupler

20W PM Fused Coupler

Product Description

Product Overview of High Power Coupler

High Reliablity 780-2050nm High Power PM Fused Coupler (up to 20W) for Fiber Sensor

High Power Coupler

GEZHI high power optical fiber couplers are fused fiber devices that combine light for high power optical fiber and laser applications. We offers a variety of standard, WDM and polarization maintaining (PM) splitters and couplers that separate or combine multiple, high power optical signals.
GEZHI offers additional customization options such as pigtail lengths, fiber type, and packaging.

Features & Applications of High Power Coupler

Features:

• Low insertion loss
• Low polarization dependent loss (PDL)
• High stability and reliability
• High Power Handling

Applications:

•Coherent Communication
•Power Monitor
• Fiber Sensor
•Fiber Amplifiers

Specifications of High Power Coupler

Parameter		Unit	Value
Center Wavelength		nm	2050, 2000, 1950	1550, 1480, 1310	1064, 1030, 980	850, 808, 780
Operating Bandwidth		nm	±15	±15	±10	±10
Max. Excess Loss		dB	0.8	0.5	0.6	0.8
Min. Extinction Ratio		dB	16	20	20	20
Min. Directivity		dB	50
Min. Return Loss		dB	50
Max. Optical Power		W	5, 10, 20 or Specified
Package Dimensions	Input Power <5	mm	φ3x60
	Input Power ≤20	mm	70x12x8
Operating Temperature		℃	-5~+75
Storage Temperature		℃	-40~+85
Splitting Ratio Tolerance
Splitting Ratio	50	%	±3.0
	40	%	±2.5
	30	%	±2.0
	20	%	±1.5
	10	%	±1.0
	5	%	±0.7
	1	%	±0.3

Note:With connectors, the handling power is 1W only, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.

Package Dimension

780-2050nm High Power PM Fused Coupler 20W High Reliability For Fiber Sensor 0

Odering Information of High Power Coupler

HPMFUC-1111-233-444-56-7-888-99AA (1x2 Type) / HPMFUC-1111-233-444-56-7-8888-99AA (2x2 Type)

1111 - Wavelength:	2000=2000nm, 1550=1550nm, 1064=1064nm, 980=980nm, SSSS=Specified
2 - Port Type:	3=1x2, 4=2x2
33 - Tap Ratio:	01=1/99, 05=5/95,..., 50=50/50
444 - Fiber type:	001=PM1550, 002=PM1310, 003=PM980, 045=PM1950, 067=PM780-HP, SSS=Specified
5 - Package Dimensions:	0=φ3.0x60, 1=70x12x8mm, S=Specified
6 - Pigtail type:	0=bare fiber, 1=900μm loose tube
7 - Fiber length:	0.8=0.8m, 1.0=1m, S=Specified
8888 - Connector type:	0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
99 - Average Power:	01=1W, 05=5W, 10=10W, 20=20W, SS=Specified
AA - Peak Power:	00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, SS=Specified

FAQ

Q1:Can I have a sample order? What is your MOQ of High Power Coupler?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of High Power Coupler?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
