| Brand Name: | GEZHI or OEM |
| Model Number: | 1×N(N≤8) Optical Switch |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
RS232 and Ethernet Interface Rackmount 1×N(N≤8) Optical Switch
Product Description
1X8 Optical Switches Rack Mount allow the automated and repeatable connection of one common fiber to 8 number of output or input fibers. These all-optical switches are bi-directional and can be used in either the 1x8 or 8x1 direction. Rack-Mounted Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port. This Fiber optical switch is available in any 1xN size up to 1x128.
Except single mode 1260~1650nm (1310/1550), GEZHI Photonics also produce 460nm , 630nm , 780nm , 850nm , 980nm , 1064nm or customized Optical Switch. Also large diameter fiber optical switches are available like 105/125um , 400um etc.
|
Applications FITL Automatic Measurement Optical Network Remote Monitoring Cable Monitoring and Maintaining system |
Features Low Insertion Loss and Fast Switching SerialNet, High Reliability, High Stability LCD Display RS232 Control and Ethernet Remote Management |
Ordering Information OSW-XxX-X-XX-X-XX-XX-XX-XX
| OSW | Mode | Wavelength | Package | Fiber Type | Fiber Diameter | Connector |
|
1x4 1x8 1x16 1x32 1x64 1x128 S=Specity |
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm 460nm 780nm 980nm S=Specify |
1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify |
M5=50/125 M6=62.5/125 S9=9/125 S105/125 S200/240 S272/300 S365/400 S550/600 S=Specify |
AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V |
00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify |
Technical Index
| Parameter | Unit | 1x4 | 1x8 | 1x12 | 1x16 | 1x24 | 1x32 | 1x64 | 1x128 |
| Wavelength Range | nm | 1260~1650 or customized | |||||||
| Testing Wavelength | nm | 1310/1550 or customized | |||||||
| Insertion Loss (Max) | dB | ≤1.0 | ≤1.0 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤2.0 |
| Return Loss | dB | SM ≥ 50 | |||||||
| Crosstalk | dB | ≤-70 | |||||||
| PDL | dB | ≤0.05 | |||||||
| WDL | dB | ≤0.25 | |||||||
| TDL | dB | ≤0.20 | |||||||
| Repeatability | dB | ≤0.02 | |||||||
| Switching Time | ms | ≤10 (Adjacent Channel) | |||||||
| Optical Power | mW | ≤500 | |||||||
| Fiber Type | um | 9/125 | |||||||
| Connector | / | FC, SC, LC, ST, SMA or customized | |||||||
| Monitor Port | / | RJ45 & RS232 or customized | |||||||
| Working Power Supply (Plug Tyep) | V | AC:220V (50/60Hz) or DC:36V~72V | |||||||
| Operating Temperature | ℃ | -10~+60 | |||||||
| Storage Temperature | ℃ | -40~+85 | |||||||
| Rack mount Dimensions | mm | 1U L483XW230XH44.5 (Up to 16 channel) customization is available. | |||||||
|
2U L483XW230XH89 (Up to 36 channel) customization is available. 2U L483XW350XH89 (Up to 64 channel) customization is available. |
|||||||||
| 3U L483XW350XH133.5 (Up to 128 channel) customization is available. | |||||||||
| 4U L483XW350XH178 (Up to 256 channel) customization is available. | |||||||||

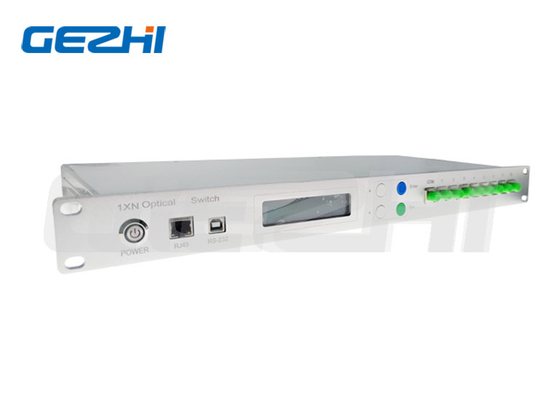

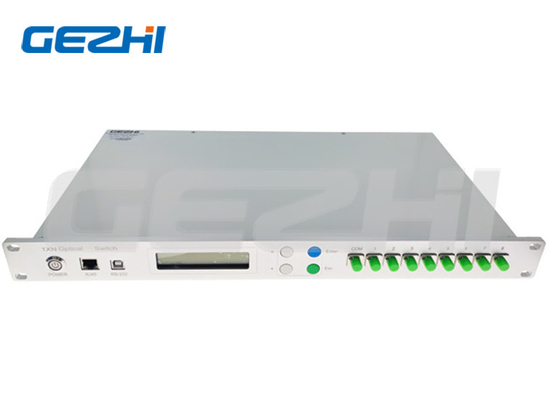

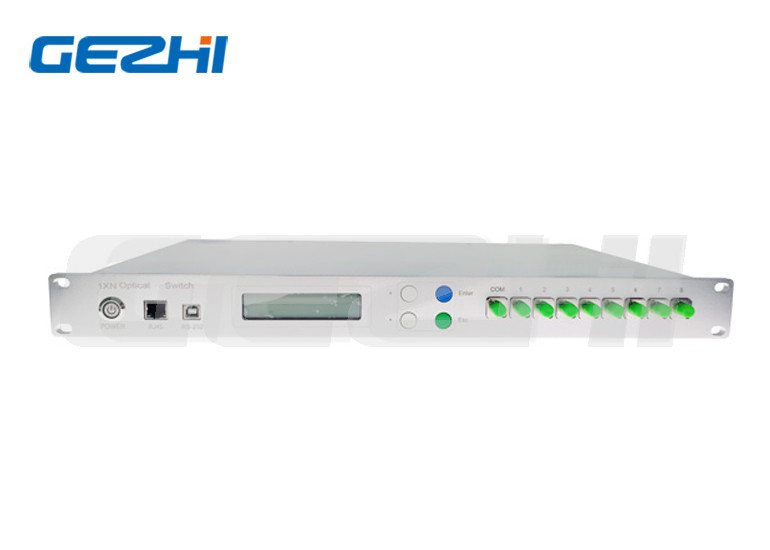

Front Panel

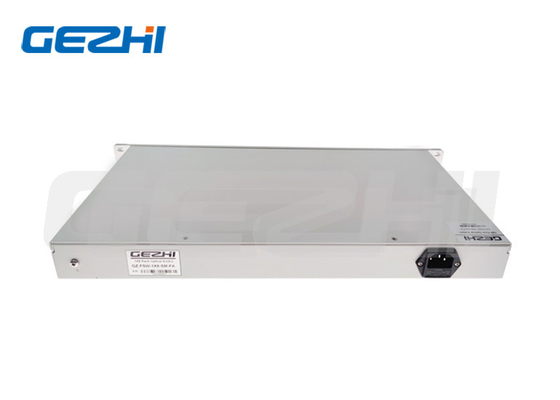

Back Panel
|
|
