| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-MxN-MOS200x |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Product Overview of Matrix Optical Switch Rackmount
High Stability MxN Matrix Rack-mount Optical Switch for Optical Network

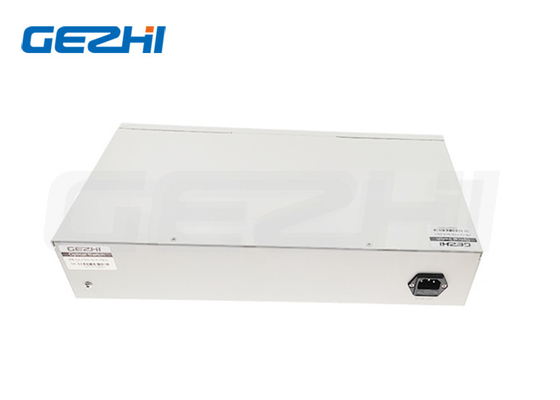

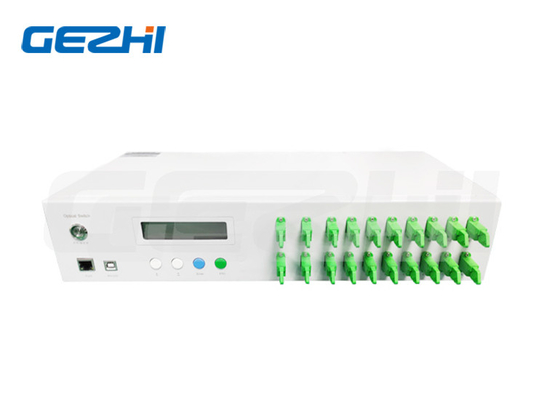

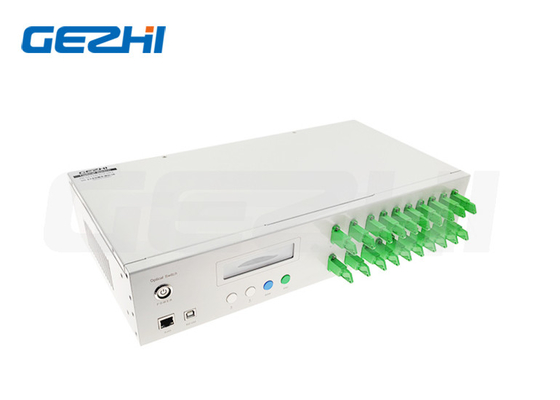

Matrix Optical Switch Rackmount
The matrix optical switches are high-performance, fully non-blocking all-optical matrix switches, available with port counts from 4x4 up to 128x128. It has been proven in the most challenging defense applications and field proven in a wide range of commercial applications by major network equipment manufacturers, they are designed to meet the highest performance, security and reliability needs of mission-critical applications with low optical loss, low power requirements and fast switching speeds.
The customized wavelength, fiber type, input & Outputchannel can available.
GEZHI Photonics produce full range of Matrix Optical switch like 2x8 , 2x16 , 2x64 , 4x4 , 4x16 , 4x32 , 8x8 , 8x16 , 16x16 , 20x20......128x128 matrix optical switch etc.
Features & Applications of Matrix Optical Switch Rackmount
Features
*SerialNet, High Reliability, High Stability
*LED display panel. Visual display, Convenient operation
*Transparent transmission signal. High stability and reliability
*Channel and time interval of automatic scanning can be set up
*RS232 Control and RJ45 Ethernet Remote Management
Applications
*FITL
*Automatic Measurement
*Optical Network Remote Monitoring Cable Monitoring and Maintaining system
Specifications of Matrix Optical Switch Rackmount
| Parameter | Unit | 2x4 | 2x8 | 2x12 | 2x16 | 2x24 | 2x32 | 2x64 | 4x4 | 8x8 | 16x16 |
| Wavelength Range | nm | 1260~1650 | |||||||||
| Testing Wavelength | nm | 1310/1550 | |||||||||
| Insertion Loss | dB | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.8 | ≤1.8 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.5 |
| Return Loss | dB | SM ≥ 50 | |||||||||
| Crosstalk | dB | ≤-55 | |||||||||
| PDL | dB | ≤0.05 | |||||||||
| WDL | dB | ≤0.25 | |||||||||
| TDL | dB | ≤0.25 | |||||||||
| Repeatability | dB | ≤0.02 | |||||||||
| Lifetime | times | >107 | |||||||||
| Switching Time | ms | ≤8 (Adjacent Channel) | |||||||||
| Optical Power | mW | ≤500 | |||||||||
| Connector | / | FC, SC, LC, ST, SMA or customized | |||||||||
| Monitor Port | / | RJ45 , RS232 | |||||||||
| Working Power Supply (Plug Tyep) | V | AC:220V (50/60Hz) or DC:36V~72V | |||||||||
| Operating Temperature | ℃ | -10~+60 | |||||||||
| Storage Temperature | ℃ | -40~+85 | |||||||||
| Rackmount | mm | 19”Rack mount 1U , 2U, 3U or 4U | |||||||||
Sketch Map of Matrix Optical Switch Rackmount
| OSW | Mode | Wavelength | Package | Fiber Type | Fiber Diameter | Connector |
|
2x4 2x8 2x64 4x16 16x16 20x20 S=Specity |
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 85/13=850/1300 13/15=1310/1550nm 460nm 780nm 980nm S=Specify |
1U=1U Rackmount 2U=2U Rackmount 3U=3U Rackmount 4U=4U Rackmount S=Specify |
M5=50/125 M6=62.5/125 S9=9/125 S105/125 S200/240 S272/300 S365/400 S550/600 S=Specify |
AC=Single 85~265V DC=Single 36~72V AA=Dual 85~265V DD=Dual 36~72V AD=AC85~265V+DC36~75V |
00=None FP=FC/UPC FA=FC/APC SP=SC/UPC SA=SC/APC LP=LC/UPC LA=LC/APC S=Specify |
Video
|
|
