| Brand Name: | GEZHI |
| Model Number: | CWDM08M |
CWDM Mux Demux is a multiplexer and de-multiplexer that can combine and separate up to 18 channels of optical signals in the 1470-1610nm range, with each channel having a wavelength spacing of 20nm. The product is made up of a module, box, or rack and comes with LC/UPC connectors. It offers a return loss of more than 45dB and isolation of more than 25dB, enabling reliable data transmission. This product is an ideal solution for expanding the capacity of fiber-optic networks.
The lc/upc connectors allow for a low-loss, high-performance connection, providing low insertion loss and low back reflection. The product can also be used in a variety of WDM applications, such as voice, data, video, and CATV. It is also ideal for Ethernet, SONET, and other high-speed networks.
| Parameter | Specification |
|---|---|
| Connector Type | FC/SC/ST/LC |
| Insertion Loss | ≤7.0dB |
| Application | FTTH/FTTX/CATV |
| Channel Spacing | 20nm |
| Wavelength Temperature Coefficient | ≤0.002nm/℃ |
| Package Type | Module/Box/Rack |
| Wavelength | 1470-1610nm |
| Channel Number | 8/16/18/20/24 |
| Temperature Stability | ≤0.2dB/℃ |
| Return Loss | ≥45dB |
The GEZHI CWDM08M is a passive device for multiplexing 8/16/18/20/24 channels of wavelength from 1470nm to 1610nm on a single fiber. This device is suitable for single fiber bidirectional transmission applications such as FTTH/FTTX/CATV. The device has a low insertion loss, low polarization dependent loss, and low back reflection loss. It provides a maximum insertion loss of ≤0.3dB and a return loss of ≥45dB. This device is an ideal solution for customers looking for a reliable and cost-effective solution for their optical networks.

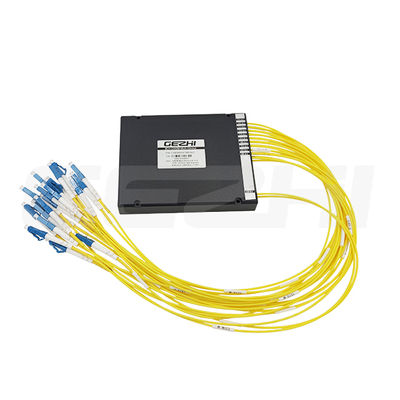

GEZHI CWDM08M CWDM Mux Demux
Easily integrate CWDM Mux Demux into your single-fiber network with a low insertion loss. The GEZHI CWDM08M is the perfect choice for your optical communication needs.
The GEZHI CWDM08M CWDM Mux Demux is the perfect solution for your single fiber CWDM network applications. With a return loss of ≥45dB, Wavelength Temperature Coefficient of ≤0.002nm/℃, and an Isolation of ≥25dB, this CWDM Mux Demux is guaranteed to provide the highest quality performance.
This CWDM Mux Demux is also designed to work in a wide range of temperatures. With an Operating Temperature of -40~85℃, you can be sure that your network will be reliable and stable in any environment.
The GEZHI CWDM08M CWDM Mux Demux is also available in a variety of package types including Module, Box, and Rack. This ensures that you can find the perfect solution for your CWDM network.
For more information about the GEZHI CWDM08M CWDM Mux Demux, please contact us today.
A1: CWDM Mux Demux is a product of GEZHI, Model Number CWDM08M, which is made in China. It is a passive optical device used to combine multiple optical signals onto a single fiber and divide a single optical signal into multiple paths.
A2: CWDM Mux Demux can be used in a variety of applications, such as in the access network, metropolitan area network (MAN) and optical transport network (OTN). It is also used in optical monitoring and testing systems.
A3: CWDM Mux Demux provides a cost-effective solution for increasing network capacity by allowing multiple wavelengths to be transmitted on the same fiber. It also helps reduce the amount of cabling needed since all channels are transmitted on the same fiber.
A4: The transmission range of CWDM Mux Demux is up to 80km with a single fiber, depending on the specific configuration of the device.
A5: The insertion loss of CWDM Mux Demux is typically less than 0.6dB per channel. The exact insertion loss depends on the specific configuration of the device.
|
|
