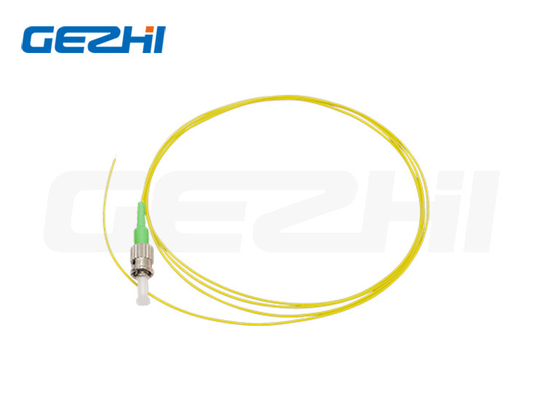

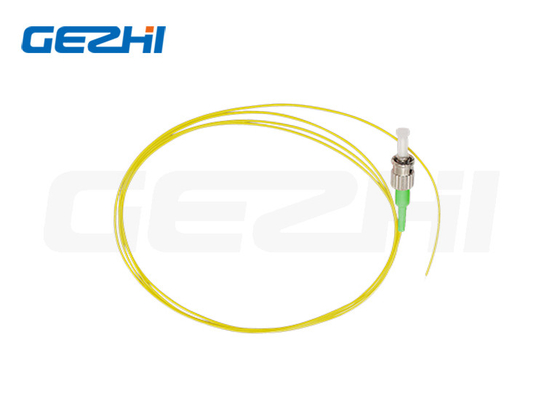

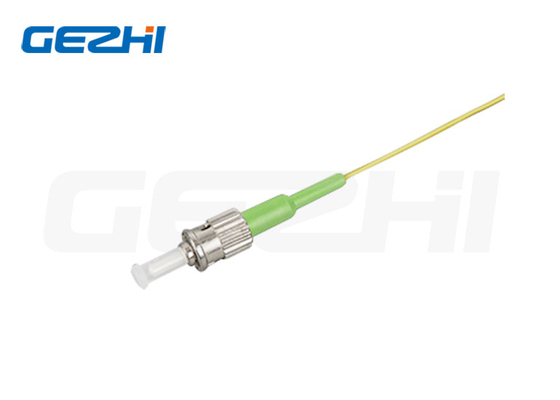

1310nm Or 1550nm Simplex Patch Cable Series ST APC Optical Pigtail

Name: 1310nm Or 1550nm Simplex Patch Cable Series ST APC Optical Pigtail
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GZ-ST-Pigtail
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GZ-ST-Pigtail
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Connector Type:

Polish Type:

APC

Durability:

>1000 Times

Fiber Mode:

9/125 μm

Wanvelength:

1310 Nm/1550 Nm

Jacket Color:

Yellow

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

Simplex Patch Cable Series

1310nm Patch Cable Series

ST APC Optical Patch Cable

Product Description

Overview of ST Fiber Pigtail

1310 nm or 1550 nm Simplex ST APC Optical Pigtail

Fiber Optical Pigtails

Gezhi Fiber optic pigtails are typically used to link the fibre optic cable with fibre optic equipment. The connector side of the pigtail is used to link the equipment, while the other side is fusion spliced together with the fibre cable. By splicing together the fibre glasses, it can reach a minimum insertion loss.

Features & Applications of ST Fiber Pigtail

Features

1.High Stability & Reliability

2.Compact Design

3.Low Insertion Loss

4.Meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements

Applications

1.Telecommunication Networks
2.Connections Between Patchcords
3.Communication System
4.Local Area Networks (LANs)
5.FTTX, CATV
6.Wide Area Networks (WANs)
7.Connections Between Devices

Specifications of ST Fiber Pigtail

Parameter	ST Connector
	SM			MM
	PC	UPC	APC	PC
Insertion loss	≤0.25dB	≤0.25dB	≤0.25dB	≤0.25dB
Return loss	≥50dB	≥55dB	≥60dB	/
operating wavelength	1310nm, 1550nm			850nm, 1300nm
Ferrule concentricity	≤1um			≤4um

Other Types of Fiber Pigtails

1310nm Or 1550nm Simplex Patch Cable Series ST APC Optical Pigtail 0

High Quality & Stability Material

FAQ

Q1:Can I have a sample order? What is your MOQ of ST Fiber Pigtail?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms of ST Fiber Pigtail?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of ST Fiber Pigtail?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
