| Brand Name: | GEZHI or OEM |
| Model Number: | SC SC SM/MM/OM3 |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

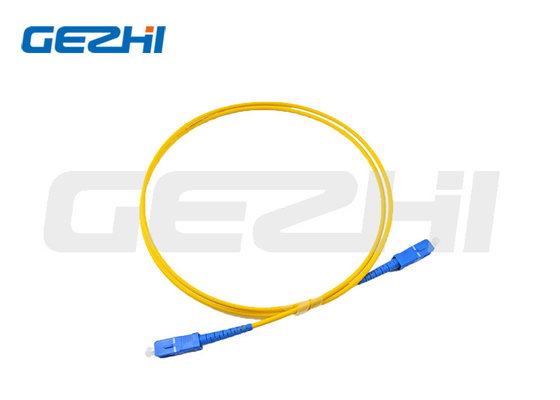

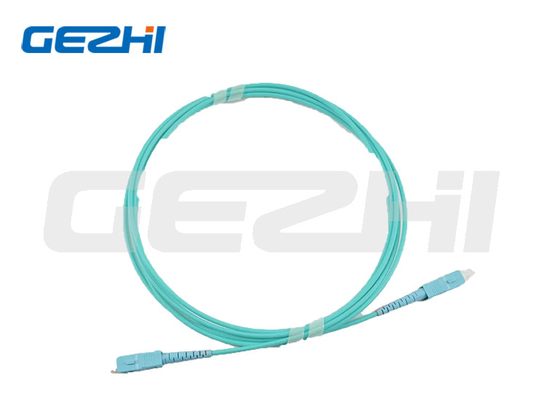

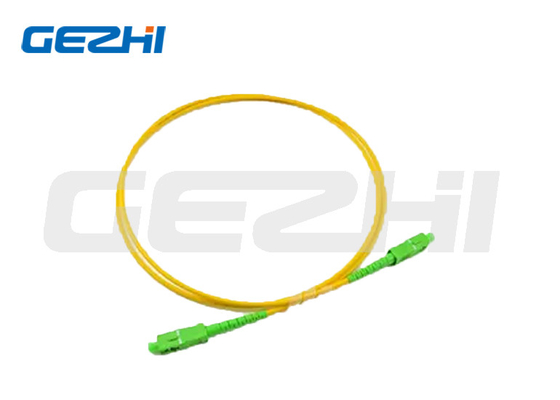

Customized Length Optical Fiber Patch Cord SC SC SM/MM/OM3 PVC/OFNR/LSZH UPC/APC
Product Description
Fiber Optic Patch Cord have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
Features
Low Insertion Loss
High return Loss
Factory-terminated and Tested
ApplicationsCommunication roomsTelecom
Optical Fiber Test Equipment
Optical Fiber Communication System
FTTH,LAN,PON & Optical CATV.
Specifications
| Item | SM | MM | ||
| Type | FC/APC | FC/UPC | FC/APC | FC/UPC |
| SC/APC | SC/UPC | SC/APC | SC/UPC | |
| ST/APC | ST/UPC | |||
| Return Loss | >=45dB | >=50dB | >=60dB | >=35dB |
| Insertion Loss | <=0.2dB | |||
| Operating Temperature | -40°C ~ +80°C | |||
| Repeatability | <=0.1dB | |||
| Interchangeability | <=0.2dB | |||
| Insertion and Pull Times | 1000 | |||
| Tensile Strength | >100N | |||
Ordering Information
Connector type: FC, SC, LC, ST, MTRJ, MU, MPO, DIN, D4, SMA
Ferrule End-face: PC, UPC, APC
Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
Cable Length: 1, 2, 3 meter or customized
Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
|
|
