| Brand Name: | GEZHI or OEM |
| Model Number: | Single Core Pigtail |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

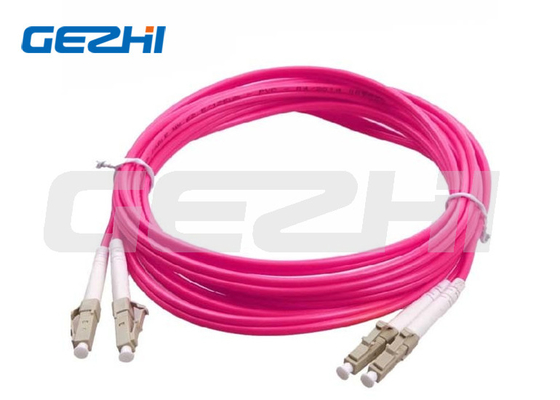

LC-LC Carrier Grade Single-Mode Single Core Pigtail 10M Extension Cable Orange Purple
Product Description
The LC-LC fiber optic cable is available in both single mode and multimode versions, and is fully intermateable with fiber optic products. Both single mode and multimode versions LC fiber patch come with a zirconia ceramic ferrule with pre-polished UPC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.
Features
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
ApplicationsCommunication rooms
TTH (Fiber to The Home)
LAN (Local Area Network)
FOS (fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment
Defense combat readiness
Specifications
|
Parameter
|
PC
|
UPC
|
APC
|
Multi-mode
|
|
Insertion loss
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
≤0.3dB
|
|
Return loss
|
>40dB
|
>50dB
|
>60dB
|
/
|
|
Exchange
|
≤0.2dB
|
|||
|
Repeatability
|
≤0.2dB
|
|||
|
Service life
|
>1000times
|
|||
|
Tensile strength
|
>10kg
|
|||
|
Temperature range
|
-40℃ to +85℃
|
|||
Ordering Information
|
Fiber Mode
|
Connector1Type
|
Connector2Type
|
Cable Type
|
Length of Fiber/Cable
|
|
S=Single mode
M=Multimode
P=PM fiber
X=others
|
SC=SC/PC
FC=FC/PC FU=FC/UPC SU=SC/UPC FA=FC/APC SA=SC/APC ST=ST/PC LC=LC/PC xx=Others |
SC=SC/PC
FC=FC/PC FU=FC/UPC SU=SC/UPC FA=FC/APC SA=SC/APC ST=ST/PC LC=LC/PC xx=Others |
1=0.9mm
2=2mm 3=3mm x=Others |
01=1.0m
02=2.0m 03=3.0m 04=4..0m xx=others |
|
|
