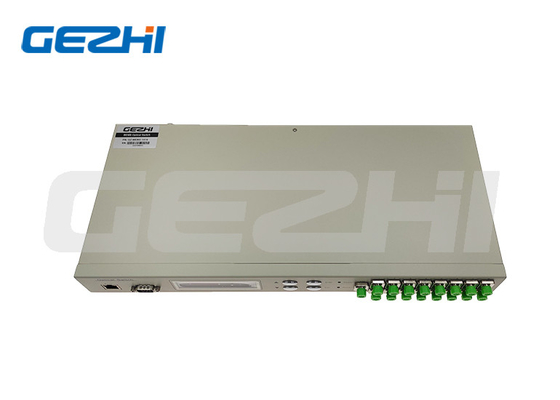

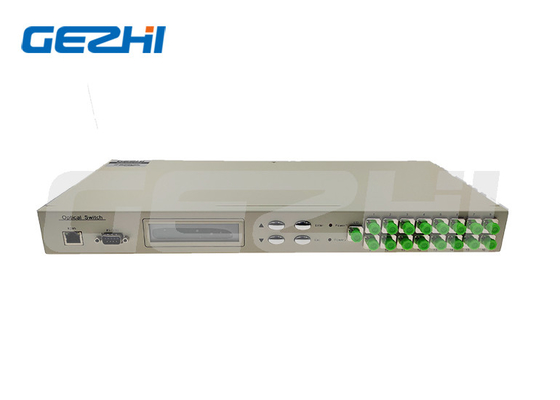

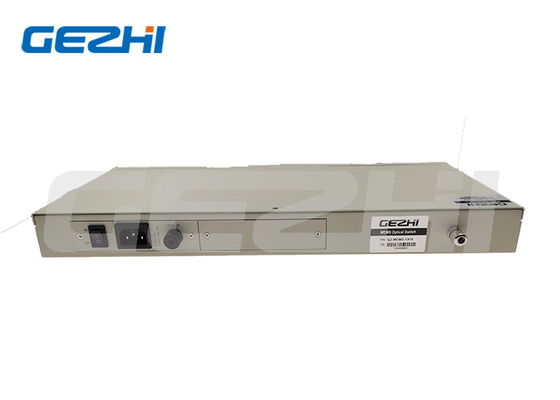

Single mode and Multimode Rackmount 1X16 Optical Switch for Secure Communications
Product Description Rackmount 1X16 Optical Switch
Features
Low loss,High Reliability,High Stability
Many configuration possibilities
Easy-to-use Rackmount Housing,LCD Display
RS232 and Ethernet Interface,User Friendly
Applications
High-volume production testing
Testing of fiber,optical component
Dynamic Management of Optical Networks
Secure Communications
Specifications
| Parameters | GEZHI-FSW-1X16 | ||
| Operating wavelength | nm | 850±40 / 1300±40 | 1260~1650 |
| Test Wavelength | nm | 850/1300 | 1310/1550 |
| Insertion loss | dB | Typ:0.8 Max:1.0 | |
| Return loss | dB | SM≥55 MM≥30 | |
| Crosstalk | dB | ≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.05 | |
| Lifetime | times | ≥107 | |
| Transmission power | mW | ≤500 | |
| Switch time | ms | ≤10(Sequence switch time of adjacent channel) | |
| Operating temperature | ℃ | -10～+60 | |
| Storage temperature | ℃ | -40～+80 | |
| Relative Humidity | % | 5 ~ 95 | |
| Supervision interface | Ethernet Interface and RS232( or RS-485 ) | ||
| Power supply | V | AC 85-264V,50/60Hz OR DC(36-72)V | |
| Dimensions | mm | 1U L483XW200XH44 (Up to 20 channel) customization is available. | |
| 2U L483XW303XH89 (Up to 64 channel) customization is available. | |||
| 3U L483XW303XH139 (Up to 128 channel) customization is available. | |||
| 4U L483XW303XH177 (Up to 256 channel) customization is available. | |||
Optical Path of Rackmount Optical Switches
Ordering Information
| N | A | B | C | D | E | F |
| Channel | Package | Mode | Wavelength | Voltage Type | Fiber type | Connector |
| 1~32 32~64 64~128 128~256 256~512 |
1U 2U 3U 4U 6U 8U X: Other |
S:SM M:MM X: Other |
85: 850nm 13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Other |
AC: 85-264V DC: 36-72V AC/ DC: 220V&48V |
5:50/125 6:62.5/125 9: 9/125 X: Other |
FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other |
|
|
