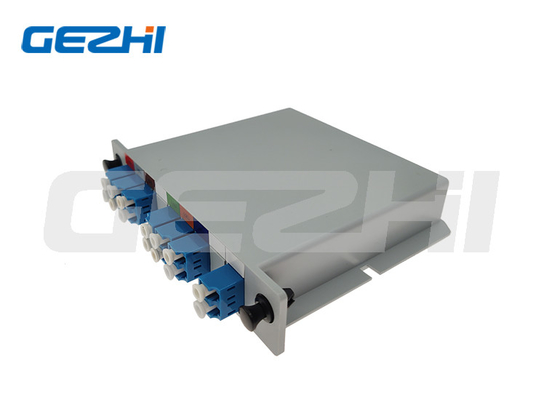

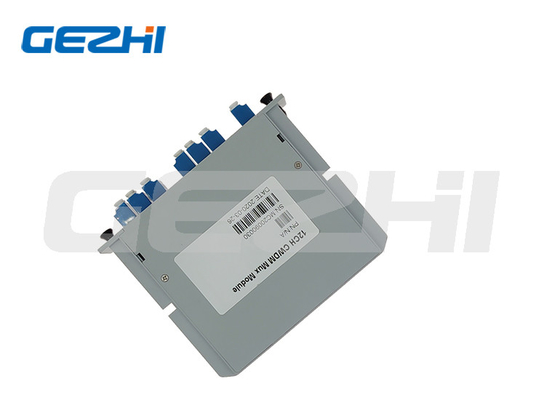

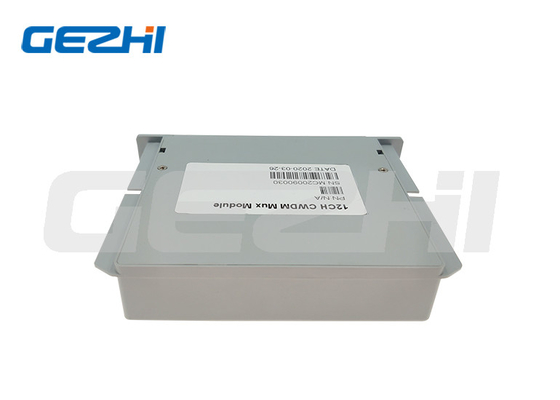

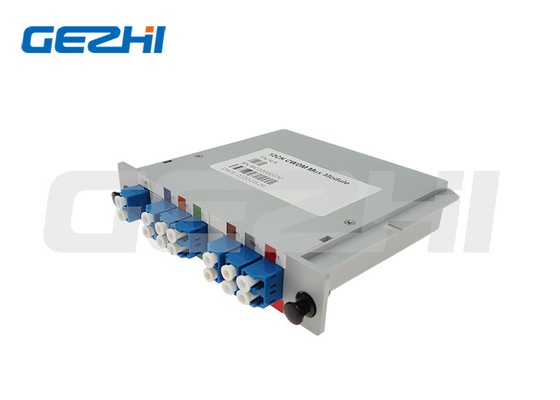

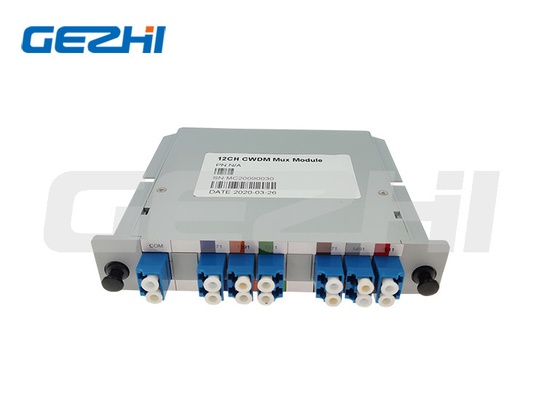

High Isolation 12CH MUX Fiber CWDM Module For Optical Transport Networking System Passive
Product Description
1 * 12 mux demux CWDM insert type
Description:
CWDM is using optical multiplexers to reuse different wavelengths of light into a single fiber to transmit signals.
At the receiving end of the link, the mixed signal is decomposed into signals in the fiber by means of an optical demultiplexer.
Different wavelengths are connected to the corresponding receiving equipment.
The device has broad passband and high isolation, makingit ideal for functioning with inexpensive, uncooled lasers.
Application:
Fiber Optical amplifier
Line Monitoring
Telecommunication
CWDM system
PON network
Cable chain
Features:
High Channel Isolation
Low PDL
Compact design
Good channel-to-channel consistency
Wide working wavelength:1270-1610nm
Wide operating temperature:-20 ℃ ~ 70 ℃
Low insertion loss
High reliability and stability
Technical Parameters
| Parameter | 4CH | 6CH | 8CH | 12CH |
| Center wavelength (nm) | ITU or ITU+1(Customizable starting wavelength) | |||
| Product Features | Mux orDemux or Mux&Demux | |||
| Channel wavelength (nm) | 1270~1610 | |||
| Center wavelength accuracy (nm) | ±0.5 | |||
| Channel pitch (nm) | 20 | |||
| Channel passband (@ -0.5db bandwidth (nm) | >14 | |||
| Insertion loss (dB) | ≤1.4 | ≤2.6 | ≤3.0 | |
| Channel uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 | |
| Channel ripple (dB) | 0.3 | |||
| Isolation (dB) adjacent | >30 | >30 | >30 | |
| Isolation (dB) Non-adjacent | >40 | >40 | >40 | |
| Polarization-dependent loss (dB) | <0.2 | |||
| Polarization Mode Dispersion (PS) | <0.1 | |||
| Directivity (dB) | >50 | |||
| Return loss (dB) | >45 | |||
| Connector type | LC/APCOr customer specified | |||
| Maximum power (mW) | 500 | |||
| Working temperature (℃) | -20~70 | |||
| Storage temperature (℃) | -40~85 | |||
| Package type (mm) | LGX,Box, rack or customer specified | |||
| Package size (mm) | LGX:201x256x44 or 155x100x29 | |||
| Box:100x80x10 or 120x80x18 or 141x120x28 | ||||
| Rack :1U: 484x260x44 or 2U: 482x260x88 | ||||
