| Brand Name: | GEZHI or OEM |
| Model Number: | 2-core Armored Fiber Optic Patch Cord |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

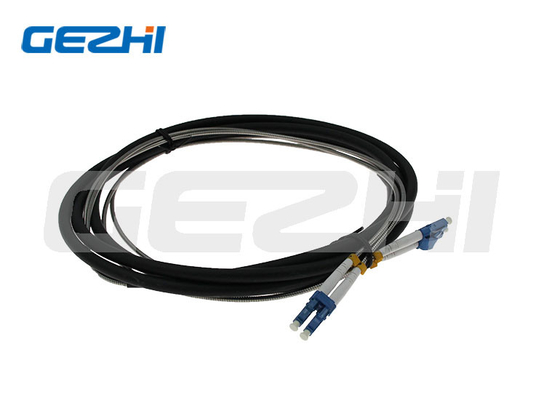

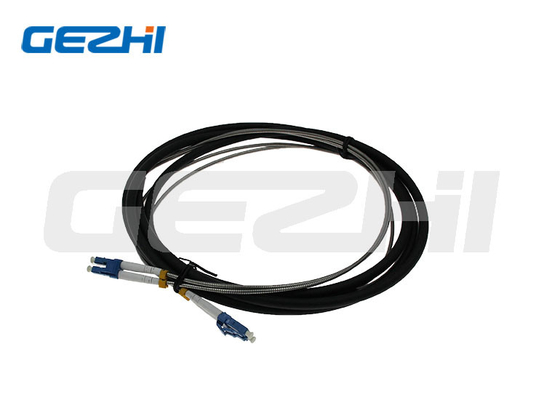

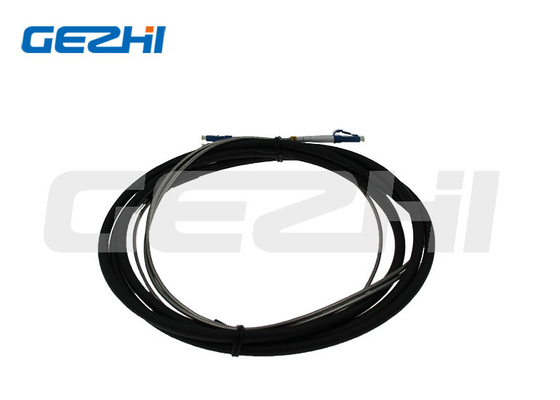

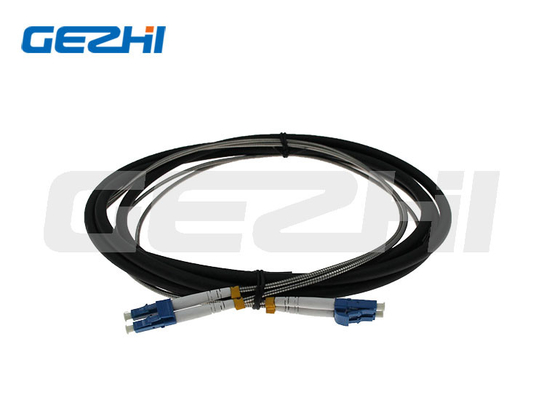

Field optical fiber single mode fiber optic jumper armored leather wire, 2-core outdoor indoor LC jumper
Description
Armored Fiber Optic Patch Cable as the name implies, there is an helical stainless steel tape over a buffered fiber surrounded by a layer of aramid and stainless steel mesh with an outer jacket to better protect the cable work well in data center rooms and harsh environments. Gezhi can supply the armored fiber optic patch cable with different terminal connectors such as SC, FC, LC, ST, SC/APC, FC/APC, LC/APC, ST/APC, E2000, E2000/APC, DIN, MU, SMA, FDDI, ect. With the cable in simplex, duplex, 2 cores or more. Welcome to order our armored fiber optic patch cable in stock.
Applications
- CATV (Cable Television)
- Telecommunication networks
- Computer fiber networks and fiber test equipment
- Communication rooms
- FTTH (Fiber to The Home)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness, etc.
Features
- Low insertion loss;
- High return loss;
- Good repeatability;
- Good interchange;
- Excellent environmental adaptability.
Specification
| Type | Standard,Master |
| Connector Style | LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, ... Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type | 9/125 SMF-28 or equivalent (Single mode) OS1
50/125, 62.5/125 (Multimode) OM2&OM1
50/125 10G (Multimode) OM3 G652 (all type), G657(all type), G655(all type) |
| Cable Type | Simplex, Duplex (Zip cord)
Φ3.0mm, Φ2.0mm Φ0.9mm buffered fiber |
| Cable Cover material | PVC LSZH Armored Water-proof FTTH Outdoor |
| Return Loss (For Single mode) | ≤ 0.15dB (For Single mode Master) ≤ 0.30dB (For Single mode Standard) ≤ 0.30dB (For Multi mode) Tested by JDS RM 3750 |
| UPC ≥ 50dB
SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
| Repeatability | ±0.1dB |
| Operating Temperature | -40°C to 85°C |
Ordering
| Connector type | SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc |
| Polish | UPC,APC,PC |
| Cable type | Simplex,Duplex straight,Duplex Reverse |
| Fiber | SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655) |
| Cable Jacket | Riser,Plenum,LSZH |
| Cable Diameter | 3.0mm,2.0mm,0.9mm,etc |
| Cable Length | Length in meter |
Type
Ferrule endface: PC,UPC,APC,etc.
Connector type: FC,SC,ST,LC,MT-RJ,MU,etc.
Fiber type: single mode,polarization-maintaining optical fiber,multimode 50/125,mutimode 62.5/125,etc.
Number of fiber connected: single-core connector,dual-core connector and multi-core connector.
Cable diameter: 0.9mm,2.0mm,3.0mm,etc.
