| Brand Name: | GEZHI or OEM |
| Model Number: | Duplex LC TO ST Patch Cable |
| MOQ: | 1pc |
| Price: | egotiable |
| Payment Terms: | T/T, Western Union |
Good quality Duplex LC TO ST Patch Cable Fiber Optic Patch Cord for FTTH
Application
Cabling system
Telecom system
High Density optical laser
QSFP devices
Features
IEC61754-7 Compliant;Telcordia GR-1435-CORE compliant
Push -Pull locking type
Ferrules are available for SM Standard,SM LowLoss
MM Standard,MM LowLoss
Cable are available for Jacket ribbon,Bare ribbon
Round mini Cable
High precision guide pins for exact alignment
High Return Loss;Low Insertion Loss
Product specifications
| Model NO. | LC-ST fiber optic patch cord |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type |
9/125 SMF-28 or equivalent (Singlemode) OS1&OS2 50/125, 62.5/125 (Multimode) OM4,OM3,OM2,OM1 50/125, 10G (Multimode) OM3 |
| Cable Type |
Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating Temperature | -40C to 85C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |

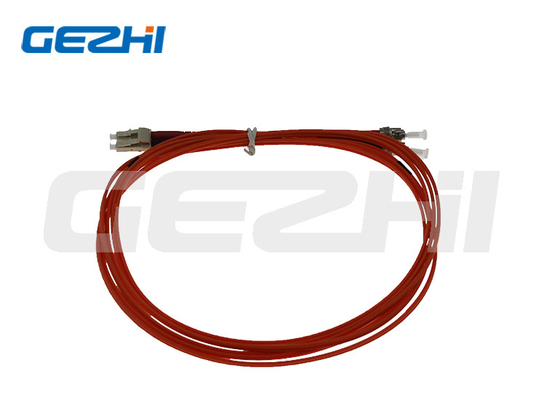

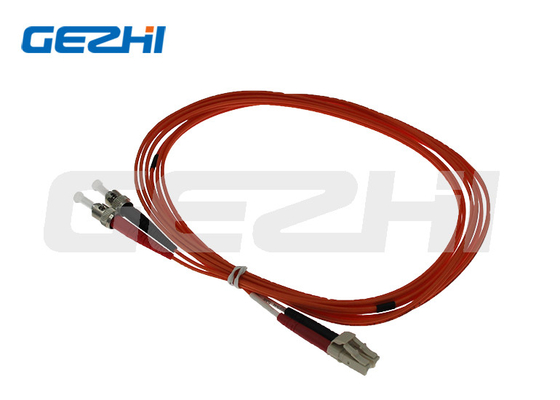

Product image
|
|
| Brand Name: | GEZHI or OEM |
| Model Number: | Duplex LC TO ST Patch Cable |
| MOQ: | 1pc |
| Price: | egotiable |
| Packaging Details: | Paper box |
| Payment Terms: | T/T, Western Union |
Good quality Duplex LC TO ST Patch Cable Fiber Optic Patch Cord for FTTH
Application
Cabling system
Telecom system
High Density optical laser
QSFP devices
Features
IEC61754-7 Compliant;Telcordia GR-1435-CORE compliant
Push -Pull locking type
Ferrules are available for SM Standard,SM LowLoss
MM Standard,MM LowLoss
Cable are available for Jacket ribbon,Bare ribbon
Round mini Cable
High precision guide pins for exact alignment
High Return Loss;Low Insertion Loss
Product specifications
| Model NO. | LC-ST fiber optic patch cord |
| Style | LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.MU/APC Duplex MTRJ/Female, MTRJ/Male |
| Fiber Type |
9/125 SMF-28 or equivalent (Singlemode) OS1&OS2 50/125, 62.5/125 (Multimode) OM4,OM3,OM2,OM1 50/125, 10G (Multimode) OM3 |
| Cable Type |
Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750 |
| Return Loss (For Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
| Repeatability | ±0.1dB |
| Operating Temperature | -40C to 85C |
| Geometry Requirement (For Singlemode) | Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Product image
