Created with Pixso. Fiber Optic Transceiver Module Er4 40km 40g Qsfp+ Optical Transceivers

Fiber Optic Transceiver Module Er4 40km 40g Qsfp+ Optical Transceivers

Brand Name: GEZHI or OEM
Model Number: QSFP+-40G-LR4
MOQ: 1pc
Price: Negotiable
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Data Rate:
40G
Certification:
CE RoHS FCC
Use:
FTTH FTTB FTTC
Distance:
40km
Model Number:
DWDM-SFP+-ZR-XX
Wavelength:
1264~1337nm
Storage Temperature:
0 To 70°C (32 To 158°F)
Network Distance::
Wireless Lan, Wired LAN, TCP, Ip, POE, Wifi
Interface:
LC
Packaging Details:
2pcs in a foam with plastic Box
Supply Ability:
50000pcs per month
Highlight:

40km Fiber Optic Transceiver Module

,

Er4 Fiber Optic Transceiver Module

,

40g Fiber Optic Transceiver Module

Product Description

Fiber Optic Transceiver Module Er4 40km 40g Qsfp+ Optical Transceivers

Product Description

fiber optic transceiver module ER4 40km 40G QSFP+ Optical Transceivers

ER4 40km 40G QSFP+ Optical Transceivers (DT-ER4-QSFP+-40G-40KM),To Be Used On a Series of Switches, Routers, Servers, Network InterfaceCard Etc,Package:QSFP+,Data Rate:40G,Wavelength:1271-1331nm,Reach:40km, TX:DFB,RX:APD,TX Power:-2.7~4.5dBm,RX Sensitivity:-19dBm,Compatible With the Brand:Cisco,Juniper,Brocade,Arista,Mellanox,HPE,Dell,Dell Force10,Huawei...Etc is Optional.

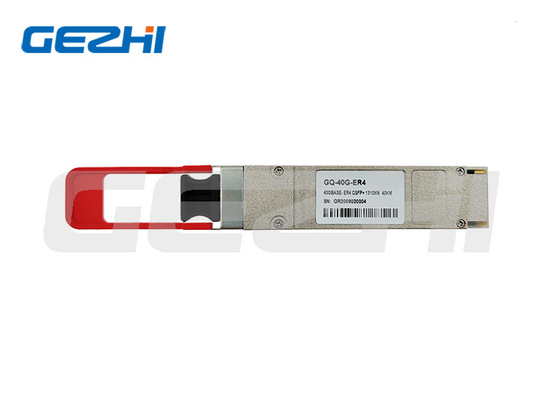

Fiber Optic Transceiver Module Er4 40km 40g Qsfp+ Optical Transceivers 0

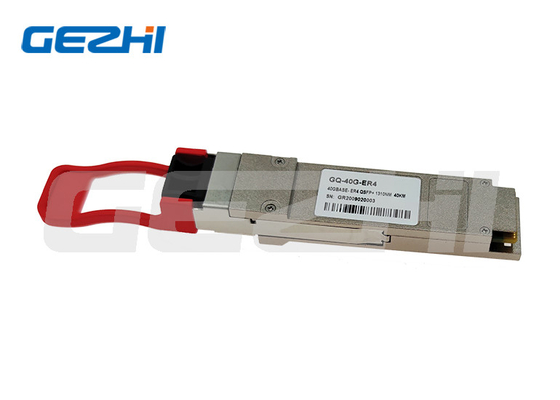

Fiber Optic Transceiver Module Er4 40km 40g Qsfp+ Optical Transceivers 1



Features

⊙ APD receiver

⊙Duplex LC Receptacle
⊙4 Parallel lanes design
⊙Single +3.3V power supply
⊙Hot-pluggable QSFP+ form factor
⊙Aggregate Bandwidth of up to 44.0G
⊙Maximum power consumption 3.5W
⊙Digital Diagnostics Monitoring Interface
⊙Transmission datarate up to 11.2Gbps per channel
⊙Up to 40km transmission on single mode fiber (SMF)
⊙Commercial operating case temperature range:0~70ºC RoHS-6 Compliant

Application

Datacenter and Enterprise networking

40GBASE-LR4 40G Ethernet links

Infiniband QDR, DDR and SDR

Specification



Absolute Maximum Ratings
Parameter
Symbol
Min
Max
Unit
Storage Ambient Temperature
TSTG
-40
85
C
Operating Humidity
HO
5
95
%
Power Supply Voltage
Vcc
0
3.6
V
Damage Threshold, each Lane
THd

3.3
dBm
Damage Threshold, each Lane
TH

5.5
dBm



Recommended Operating Conditions
Parameter
Symbol
Min
Typical
Max
Unit
Operating Case Temperature (Commercial)
Tc
0

70
C
Power Supply Voltage
Vcc
3. 13
3.3
3.47
V
Power Consumption
Pdiss


2.5
W
Signaling Speed Per Channel


10.3125
11.2
Gbps
Control Input Voltage High

2

Vcc
V
Control Input Voltage Low

0

0.8
V
Fiber Length 9/ 125μm core SMF

-
-
40
KM

Test Enxiroment

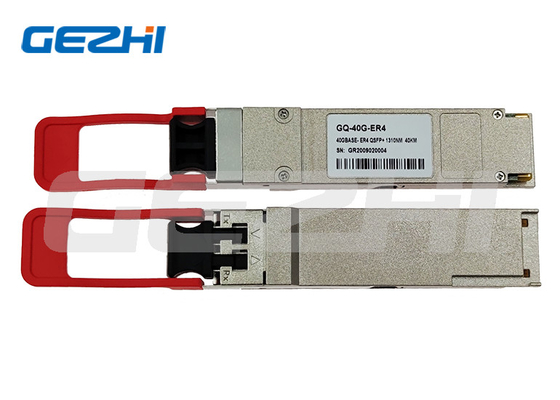

Fiber Optic Transceiver Module Er4 40km 40g Qsfp+ Optical Transceivers 2

Packing & Shipping

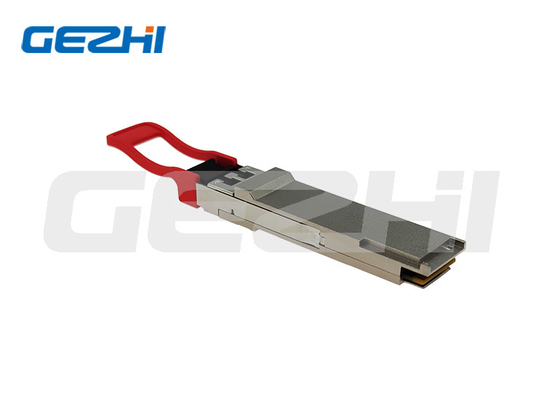

Fiber Optic Transceiver Module Er4 40km 40g Qsfp+ Optical Transceivers 3



More Questions:

1. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.



2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


3. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.



4. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.



5. What is your warranty time
We promise 3 years warranty for all products shipped from us.



6. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.



7. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.
