CWDM Mux Demux
Created with Pixso. 4CH Fiber CWDM Cassette Module with LC UPC Adaptor

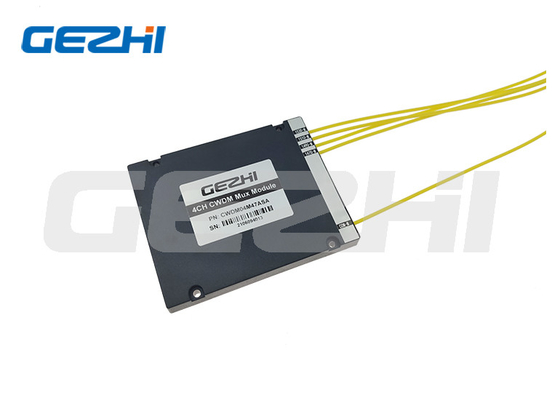

4CH Fiber CWDM Cassette Module with LC UPC Adaptor

Brand Name: GEZHI or OEM
Model Number: CWDM04MXXX
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Product Name:
4CH CWDM
Connector:
LC/UPC
Center Wavelength:
1270~1610nm
Fiber Type:
G657A1
Package:
ABS Box
Application:
WDM Network
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

LC UPC CWDM Cassette Module

,

4CH CWDM Cassette Module

,

Fiber CWDM Cassette Module

Product Description



 Description of 4CH CWDM



4CH Fiber CWDM Cassette Module with LC UPC Adaptor



CWDM



 CWDM MUX DEMUX Module is compact coarse wavelength division multiplexer, It     provides channels up to 16 even 18 with 20nm channel spacing from 1260~1610.CWDM   MUX DEMXU Modules based on optic bench platform(that consists of multiple filter   collimator and substrate,wedges) to greatlyy reduce manfuacturing cost and improve     optical performance.For compact CWDM MUX DEMUX applications.









 Features & Applications of 4CH CWDM

Features:



High Isolation

High Stability and Reliability

Wide Pass Band

Operating Temperature: -10 to 70ºC

Low Optic Loss and Polarization Sensitivity







Applications:



CWDM network in PON
CWDM Upgrade in Metro Network
CATV
FTTH/FTTx









 Specifications of 4CH CWDM

Type 4Channel Mux/Demux 4Channel+1 Mux/Demux
Operating Wavelength range(nm) 1270~1610 or 1271~1611
Center Wavelength Accuracy(nm) ±0.5
Channel Spacing(nm) 20
Channel Pass band (nm) Channels ±7.5/±6.5
Express Port N/A 1310±50,or others specified
Insertion Loss (Max.dB) 1.0
Channel Ripper( Max.dB) 0.3
Fiber Type Corning SMF-28e
Isolation (Min.dB) Adjacent 30
Non-adjacent 40
Express Port 15
Insertion Loss Temperature Sensitivity ( Max. dB/℃) 0.005
PDL(Max.dB) 0.15
Polarization Mode Dispersion( Max.dB) 0.1
Directivity (Max.dB) 50
Return Loss(Min.dB) 45
Maximum Power Handing(mW) 500
Operating Temperature(℃) -5~+70
Storage Tmepreature(℃) -40~+85
Package 44(L)X28(W)X6(H), 44(L)X28(W)X7(H) or 53.8(L)X28(W)X8(H)


Note: 1. Customized specifications is available.

Specified without connector, If with connector, IL will increase 0.2dB.







 Optical Path

Single Fiber Bidirectional Transmission

The wavelength of TX and RX is

Different



Dual Fiber Bidirectional Transmission

The wavelength of TX and RX can be Same or Different

 4CH Fiber CWDM Cassette Module with LC UPC Adaptor 0



CWDM systems can transport 18 wavelengths (1270~1610nm) with a channel spacing of 20nm. In custom application typically use 1470 to 1610nm in the spectrum grid. Compare with DWDM, CWDM has a wider channel spacing than DWDM.



4CH Fiber CWDM Cassette Module with LC UPC Adaptor 1









 FAQ

Q1:Can I have a sample order? What is your MOQ of 4CH CWDM?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
