| Brand Name: | GEZHI or OEM |
| Model Number: | Duplex LC to LC Fiber Patch Cable |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

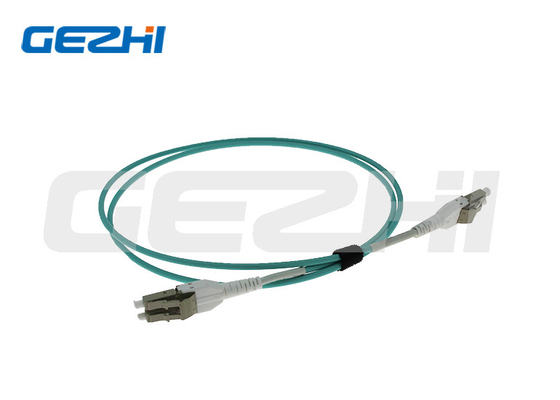

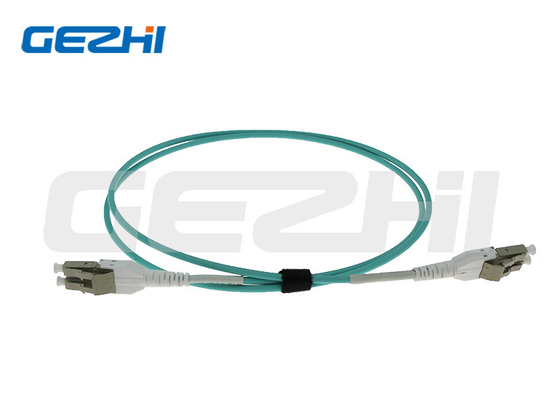

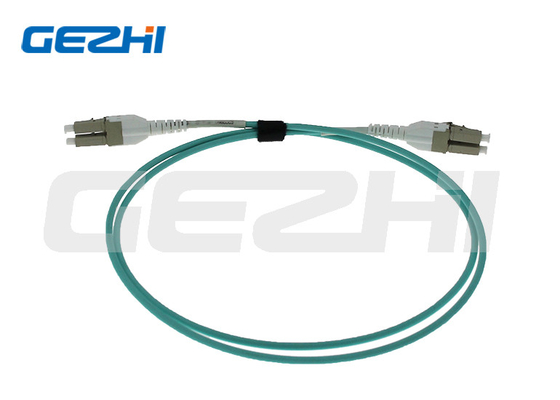

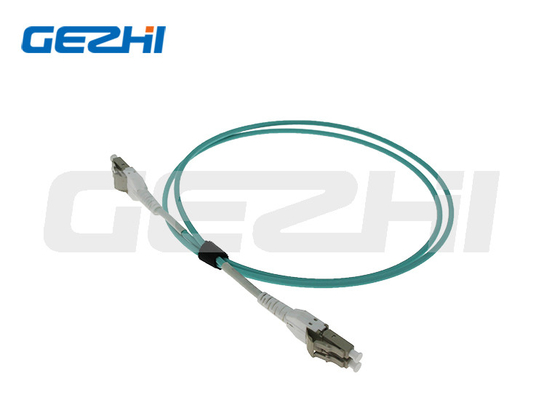

Duplex Fiber Optic Jumper Cables Dual LC TO LC Fiber Patch Cable for Optical fiber CATV
Description:
Length: 3m 5m 10m 20m
Connectors: LC to LC
Density: Duplex
Finish/Size: PC Polish
Mechanical properties:
Interchangeability (dB): ≤ 0.1
Vibration (dB): ≤ 0.1 (5 to 50Hz, 1.5mm)
Tensile strength (dB): ≤ 0.1 (0 to 15Kg pull)
The high temperature ≤ 0.2dB (+85 ° C for 50 hours)
Low temperature ≤ 0.2dB (-40 ° C for 50 hours)
Temperature cycling ≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles)
Humidity ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)
Application:
Fiber-optic broadband-home, FTTH fiber to the home
Telecommunications network, local area network (LAN), metropolitan area networks, optical fiber communication systems
Fiber optic test equipment / instrumentation
Signal transmission and data transmission
Optical fiber CATV (cable television), optical fiber sensors
Fiber optic patch panels, rack and wall mount fiber optic wiring unit
Features:
* Good exchangeability
* Low insertion loss and back reflection loss
* High temperature stability
* Superior quality standard PC/UPC/APC Polishing
* Good durability
Ordering Options:
| Connector type | SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc |
| Polish | UPC,APC,PC |
| Cable type | Simplex,Duplex straight,Duplex Reverse |
| Fiber | SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655) |
| Cable Jacket | Riser,Plenum,LSZH |
| Cable Diameter | 3.0mm,2.0mm,0.9mm,etc |
| Cable Length | Length in meter |
|
|
| Brand Name: | GEZHI or OEM |
| Model Number: | Duplex LC to LC Fiber Patch Cable |
| MOQ: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Paper box |
| Payment Terms: | T/T, Western Union |
Duplex Fiber Optic Jumper Cables Dual LC TO LC Fiber Patch Cable for Optical fiber CATV
Description:
Length: 3m 5m 10m 20m
Connectors: LC to LC
Density: Duplex
Finish/Size: PC Polish
Mechanical properties:
Interchangeability (dB): ≤ 0.1
Vibration (dB): ≤ 0.1 (5 to 50Hz, 1.5mm)
Tensile strength (dB): ≤ 0.1 (0 to 15Kg pull)
The high temperature ≤ 0.2dB (+85 ° C for 50 hours)
Low temperature ≤ 0.2dB (-40 ° C for 50 hours)
Temperature cycling ≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles)
Humidity ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)
Application:
Fiber-optic broadband-home, FTTH fiber to the home
Telecommunications network, local area network (LAN), metropolitan area networks, optical fiber communication systems
Fiber optic test equipment / instrumentation
Signal transmission and data transmission
Optical fiber CATV (cable television), optical fiber sensors
Fiber optic patch panels, rack and wall mount fiber optic wiring unit
Features:
* Good exchangeability
* Low insertion loss and back reflection loss
* High temperature stability
* Superior quality standard PC/UPC/APC Polishing
* Good durability
Ordering Options:
| Connector type | SC,FC,ST,LC,E2000,DIN,MU,MTRJ,etc |
| Polish | UPC,APC,PC |
| Cable type | Simplex,Duplex straight,Duplex Reverse |
| Fiber | SM(G652),62.5/125um,50/125um,OM2,OM3,SM(G655) |
| Cable Jacket | Riser,Plenum,LSZH |
| Cable Diameter | 3.0mm,2.0mm,0.9mm,etc |
| Cable Length | Length in meter |
