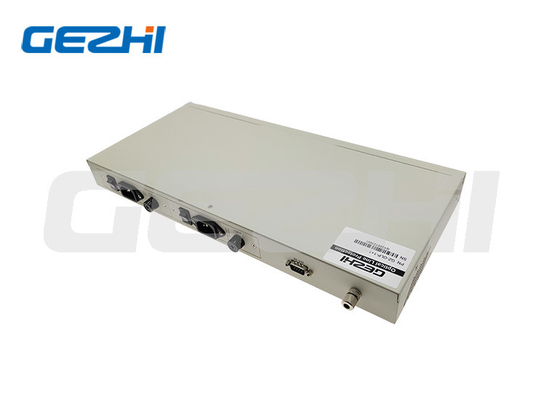

Low Insertion Loss Fiber Optic OLP Optical Line Protection System LC/UPC Chassis

Brand Name:	GEZHI or OEM
Model Number:	Olp
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Connector:

LC/UPC

Name:

Optical Line Protection

Operating Temperature:

10~+50

Operating Wavelength:

1310±50nm/1550±50nm

Chassis:

1U/2U/4U

Application:

Monitoring System

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

Chassis Fiber Optic OLP

Product Description

Description of Optical Line Protection

Low Insertion Loss Fiber Optic OLP Optical Line Protection System LC/UPC Chassis

Optical Line Protection

OLP-Optical Line Protection is a device that is used in the protection of network transmission line, it can realize optical power monitoring and automatic switching. In optical communication network, OLP constantly monitors optical power of working optical fiber and standby optical fiber. When the optical power value of working optical fiber is below the set switching threshold, the system raise the alarm prompt and switches to standby fiber automatically, which achieve line protection of optical transmission system.

GEZHI provides 3 types of line protection: 1:1 line protection, 1+1 line protection and 1-1 line protection . Wavelengths and connectors can be customized to meet special control and applications

Features of Optical Line Protection

◆Wide Wavelength Range

◆ Low Crosstalk

◆ High Stability, High Reliability

◆ Modularized Design

Technical Parameter

Parameters	Unit	OLP-1:1	OLP-1+1	OLP-1-1
Wavelength Range	nm	1260 ~ 1650
Test Wavelength	nm	1310 / 1550
Insertion Loss	dB	TX<1.2,RX<1.2	TX<4,RX<1.2	<1.2
Return Loss	dB	SM ≥ 45
Crosstalk	dB	SM ≥ 50
PDL	dB	≤ 0.20
WDL	dB	≤ 0.30
PD dark current	nA	＜1
PD responsivity	mA/W	24 ~ 40
PD report accuracy	dB	±0.5 (at -50 to 23 dBm)
Operating voltage	V	4.5 ~ 5.5
Operating current	mA	80 ~ 120
Operating Temperature	℃	-5 ~ +60
Storage Temperature	℃	-30 ~ +80
Dimension	mm	120×80×18

Dimension

Odering Information

Type

Fiber Type

Test Wavelength

Tube Type

Fiber Length
(Include connector)

Connector

Dimension

Optical Line Protection System Module
1:1 :OLP 1:1
1+1:OLP 1+1
1-1: OLP 1-1

X: Others

SM: SM, 9/125
X: Others

1310: 1310nm
1550: 1550nm
1310/1550:
1310/1550nm
X:Others

90:900um
X: Others

05: 0.5m±5cm
10: 1.0m±5cm
X: Others

OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others

01: 120×80×18(ABS)
X: Others

FAQ

Q1:Can I have a sample order? What is your MOQ of Optical Line System?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
