Created with Pixso. Optical switch 1x32 Optical Switches Module

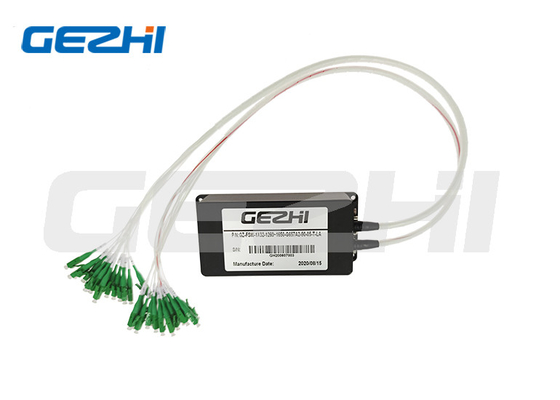

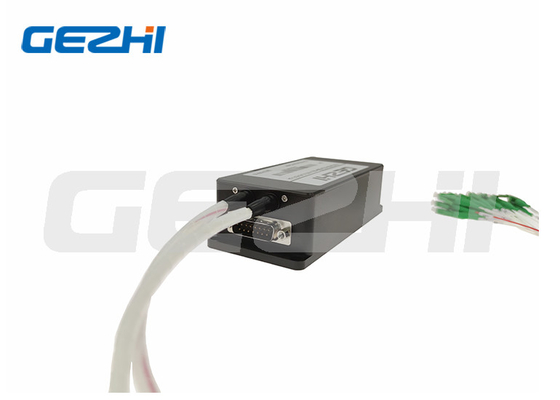

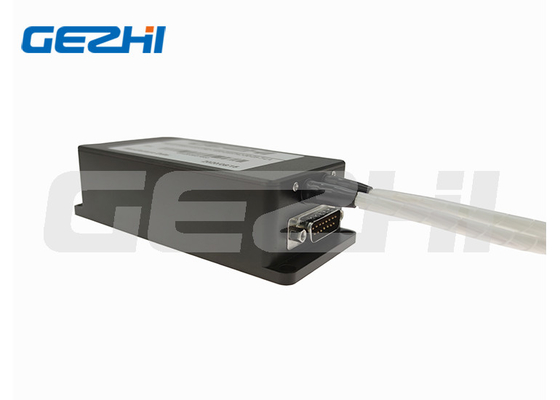

Optical switch 1x32 Optical Switches Module

Brand Name: GEZHI or OEM
Model Number: 1x32 Optical Switch
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Fiber Connector:
LC/UPC, LC/APC, SC/UPC Etc.
Name:
1x32 Optical Switch
Interface Protocol:
TTL Or Customized
Port:
1x32
Voltage:
3v~5v
Application:
Ring Network
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

1x32 Optical Switches Module

,

1x32 Optical switch

,

1x32 Optical Switch Module

Product Description



 Odering Information

Channel Fiber Type Test Wavelength Tube Type Fiber Length Connector
1 ~ 128 SM: SM, 9/125
M5: MM, 50/125
M6: MM, 62.5/125
X: Others
850: 850nm
1310: 1310nm
1550: 1550nm
13/15:1310/1550nm
X:Others
90: 900um
20: 2.0mm
30: 3.0mm
X: Others
05: 0.5m
10: 1.0m
15: 1.5m
X: Others
OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
STP: ST/PC
STA: ST/APC
LP: LC/PC
LA: LC/APC
X: Others








 Similar Products

Optical switch  1x32 Optical Switches Module 0  Optical switch  1x32 Optical Switches Module 1Optical switch  1x32 Optical Switches Module 2

         1x2 optical switch       1x4T optical switch            1x8T optical switch







 Specifications

Parameter
Unit
OSW-1x32
Wavelength Range
nm
850±40/1300±40
1260~1650
Operating Wavelength
nm
850/1300
1310/1550
Insertion Loss
dB
<1.2
<1.0
Return Loss
dB
MM≥30 SM≥50
Crosstalk
dB
MM≥35 SM≥55
Polarization Dependent Loss
dB
0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power Supply
V
5.0 or 12v
Lifetime
times
≥107
Switch Time
ms
≤8
Optical Power
mW
≤500
Operating Temperature
-20~+75 (-40~+85 available)
Storage Temperature
-40~+85
Dimension
mm
135×64×32







 Product Overview



Optical switch 1x32 Optical Switches Module



1x32 Multi Channel Optical Switches



GEZHI 1×32 Multi-Channele Fiber Optical switches is a kind of functional component, with the ability of switching optical route. In optical fiber transmission system, it is used for multi light source/ detector selection, multi-channel fiber monitoring, and ptical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test,outdoor cable test and multi-spot optical sensors monitoring system.









 Features

Low Insertion Loss

More Than 128 Channels
High Stability & Reliability
Parallel Interface (TTL)
Modularized Design
Customzied Wavelength available
