Created with Pixso. FTTH 1x32 fiber optic switch with rackmount

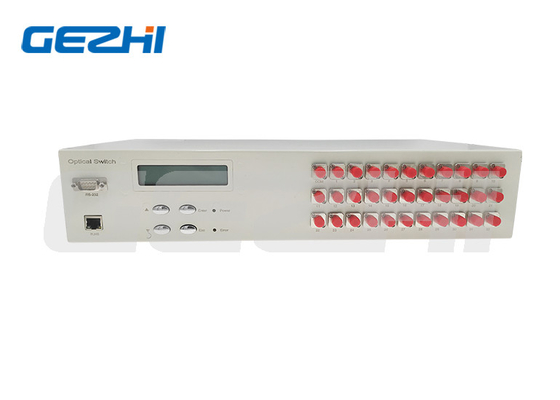

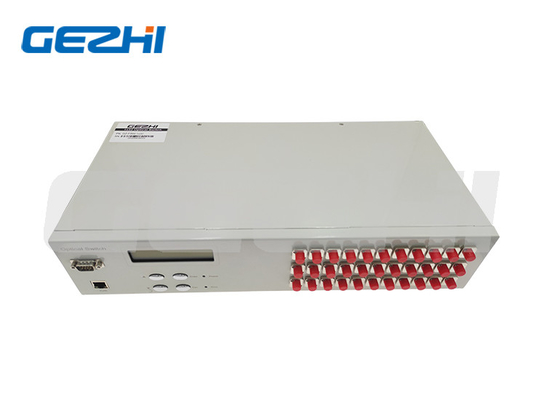

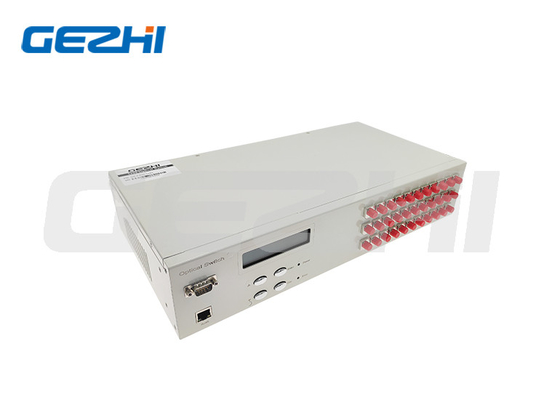

FTTH 1x32 fiber optic switch with rackmount

Brand Name: GEZHI or OEM
Model Number: 1x32 Optical Switch
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength:
1260-1650nm
Warranty:
3 Years
Control Type:
Latching Or Non-Latching
Port:
1x32
Voltage:
3V Or 5V
Application:
Cable Monitoring And Maintaining System
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

1x32 fiber optic switch

,

FTTH fiber optic switch

,

Rackmount fiber optic switch

Product Description



 Product Package

FTTH  1x32  fiber optic switch with rackmount 0 FTTH  1x32  fiber optic switch with rackmount 1FTTH  1x32  fiber optic switch with rackmount 2

           Finished Item             Inner Package                 Carton







 Similar Products

FTTH  1x32  fiber optic switch with rackmount 3  FTTH  1x32  fiber optic switch with rackmount 4FTTH  1x32  fiber optic switch with rackmount 5

         1x2 optical switch       1x4T optical switch            1x1 optical switch







 Product Overview



FTTH 1x32 fiber optic switch with rackmount



1x32 Desktop Optical Switches Rackmount



1×N rack-mounted optical switch is used for selecting and controlling optic path. It has an   important  role in the optical communication and applies to multipoint monitoring of optical transmission   system, LAN light source/detector auto exchange and optical sensor monitoring system. It also can be   used for optic fiber, optical passive components, optical network and cable testing.



.





 Specifications

Parameter
Unit
OSW-1x32-U
Wavelength Range
nm
850±40/1300±40
1260~1650
Operating Wavelength
nm
850/1300
1310/1550
Insertion Loss
dB
Typ. ≤0.8dB, Max.≤1.5 dB
Typ. ≤0.8dB,Max.≤1.5 dB
Return Loss
dB
MM≥35 SM≥50
Crosstalk
dB
MM≥50 SM≥70
Polarization Dependent Loss
dB
0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤±0.02
Power Supply
V
AC:100~ 240 (50/60Hz)
Lifetime
times
≥107
Switch Time
ms
≤10
Optical Power
mW
≤500
Operating Temperature
-10~+60
Storage Temperature
-40~+85
Dimension
mm
1U:483 x 230 x 45








 Features



Low insertion loss, Fast switching



SerialNet, High Reliability, High Stability

LED display panel. Visual display

Transparent transmission signal

RS232 Control & RJ45 Ethernet Remote Management
