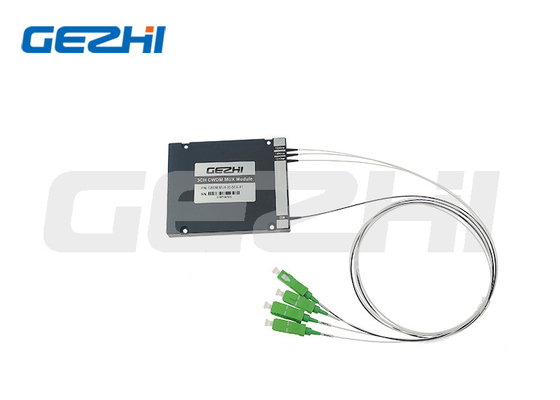

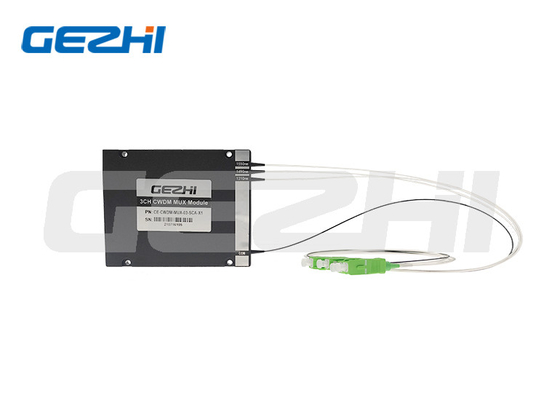

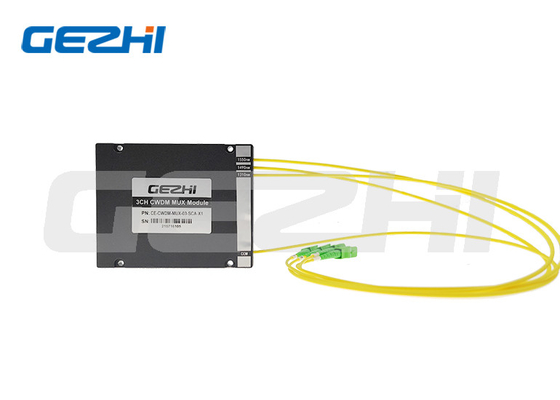

3 Channel CWDM Splitter Module Single Fiber 1470nm 1490nm 1510nm 1530nm

3 Channel CWDM Splitter Module Single Fiber 1470nm 1490nm 1510nm 1530nm

3 Channel CWDM Splitter Module Single Fiber 1470nm 1490nm 1510nm 1530nm

Brand Name:	GEZHI or OEM
Model Number:	3 Channel CWDM Splitter Module
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Use:

WDM System

Channel Spacing:

20nm

Center Wavelength:

1270~1610nm

Warranty Time:

3 Years

Application:

Data Center

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

3 Channel Cwdm Splitter

,

1470nm Cwdm Splitter

,

1490nm CWDM MUX DEMUX

Product Description

3 Channel CWDM Splitter Module Single Fiber 1470nm 1490nm 1510nm 1530nm

Product Overview

CWDM Mux Demux

CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems. GEZHI Photonics supplies a variety of WDM devices and are promoting higher speed and more reliable optical network.

FEATURES AT A GLANCE


			Features
Low Insertion Loss
Low Crosstalk
High Stability & Reliability
Epoxy-free on Optical Path

			Application
Line Monitoring
WDM Network
Telecommunication
Acess Network

PRODUCT SPECIFICATIONS

			Parameter

			Unit

			CWDM Mux Demux

			Channel Spacing

			nm

			20nm

			Center Wavelength

			nm

			1270~1610 or 1271~1611

			Channel Passband

			nm

			±6.5

			Channel Number

			/

			4CH

			8CH

			16CH

			Insertion Loss

			dB

			<1.5

			<2.5

			<5.5 or <3.5(with skip)

			Isolation @Adjacent Channel

			dB

			>30

			Isolation @Non-adjacent Channel

			dB

			>40

			Isolation @Express Port

			dB

			>15

			Polarization Dependent Loss

			dB

			<0.2

			Polarization Mode Dispersion

			dB

			<0.1

			Directivity

			dB

			>50

			Return Loss

			dB

			UPC >45 APC>50

			Power Handling

			mW

			<500 (High Power type available)

			Fiber Type

			/

			SMF-28e (Polarization Maintaining Type available)

			Operating Temperature

			℃

			-20~+75 (-40~+85 available)

			Storage Temperature

			℃

			-40~+85

			Package Type

			mm

			ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

ABS Package Size

Rackmount Package Size

Ordering Information

			CWDM
			Number of Channels
			Configuration
			Module type
			Cable type
			Fiber length
			connector

			CWDM
			01=1Channel

			02=2 Channel

			03=3 Channel

			04=4 Channel

			......

			16=16Channel

			17=17Channel

			18=18Channel
			M=Mux

			D=Demux

			A=Mux+Demux
			A0=ABS box 80x60x12mm
A1=ABS box 100x80x10mm

			A2=ABS box 120x80x18mm

			A3=ABS box 140x115x15mm

			L1=LGX 129*29*130mm

			L2=LGX insert in 2slot Rack

			L4=LGX insert in 4slot Rack

			R1=19" 1 U Rack

			R2=2slot 19″1U Rack

			R4=4slot 19″1U Rack

			S=Specify

			09=900um loose tube

			20=2.0mm

			30=3.0mm
			05=0.5m

			10=1.0m

			15=1.5m

			S=Specify
			00=none

			LP=LC/UPC

			LA=LC/APC

			SP=SC/UPC

			SA=SC/APC

			FP=FC/UPC

			FA=FC/APC

			S=Specify

FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time

A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
