| Brand Name: | GEZHI or OEM |
| Model Number: | D2x2B-SM-13/15-5N |
| MOQ: | 1pc |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |

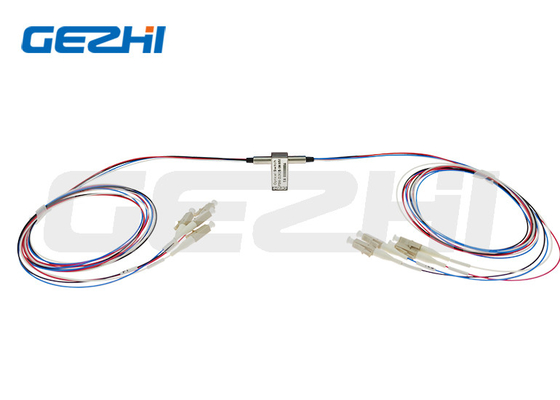

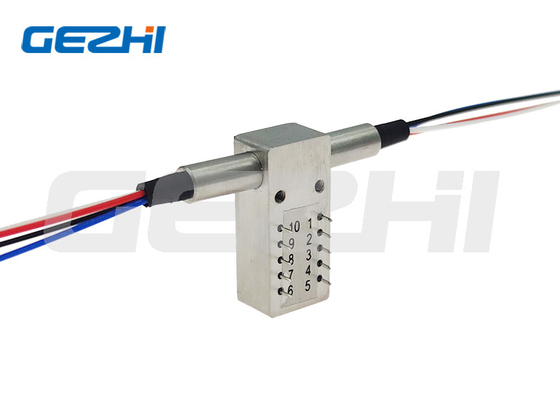

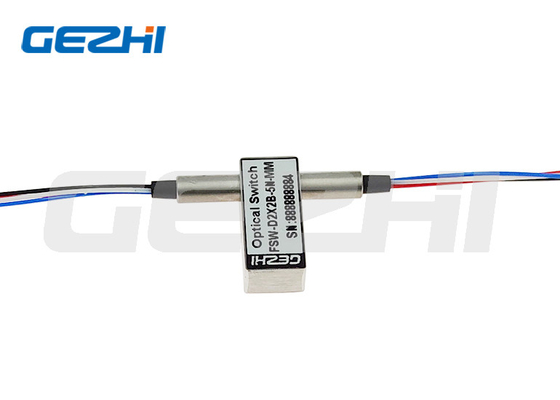

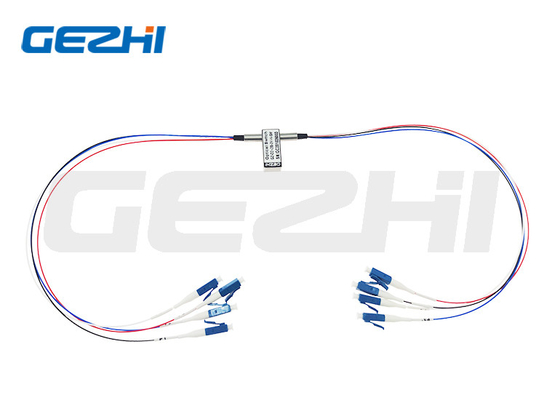

Dual 2x2 Bypass Opto-Mechanical Optical Switches
(4x4 Fiber Optical Switch)
Description
GEZHI Photonics Dual 2x2B Single-mode or Multi-Mode Mechanichal Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.
GEZHI’s Dual 2x2B (D2x2B) SM or MM Mechanichal Optical Switch support all wavelength at Singlemode 1310/1550nm and Multimode 850nm wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
|
Features Low cross talk, Low Insertion LossWide operating wavelength RangeSeam-seal packageHighly Stable & ReliableEpoxy-free on Optical PathSingle mode or Multimode optionalFail-Safe Latching and Non-latching |
Applications Network switchingSystem monitoringModule and System IntegrationMetropolitan Area Network (MAN)Network protection and restorationInstrumentation, testing, and measurement |
Technical Paremeter
| Model | Unit | GZ-FSW-D2x2B | |
| Operatingwavelength | nm | 850±40/1300±40 | 1260～1620 |
| wavelength | nm | 850&1300 | 1310&1550 |
| Insertion loss | dB | Typ:1.0 Max:1.5 | |
| Return loss | dB | MM≥30 SM≥50 | |
| Cross talk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Voltage | v | 3.0 or 5.0±0.5 | |
| Operating life | Time | ≥107 | |
| Switch time | ms | ≤8 | |
| Power handling | mW | ≤500 | |
| Operating temperature | ℃ | -20～+70 | |
| Storage temperature | ℃ | -40～+85 | |
| Fiber color |
P1,P1’:Black P2,P2’:Red P3,P3’:Blue P4,P4’:White |
||
| Size | mm | 27.0×12.0×8.2 | |
| Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. | |||
