| Brand Name: | GEZHI or OEM |
| Model Number: | 2x2B-SM-13/15-5N |
| MOQ: | 1pc |
| Price: | Negotiable |

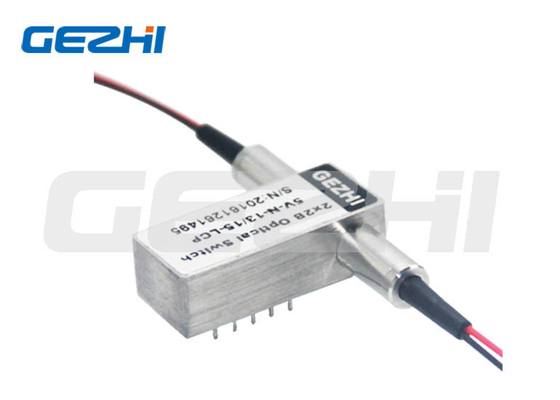

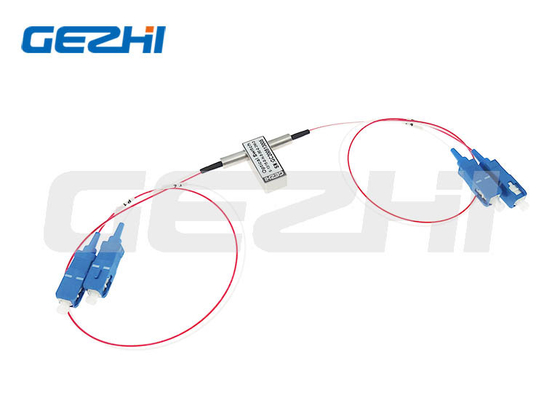

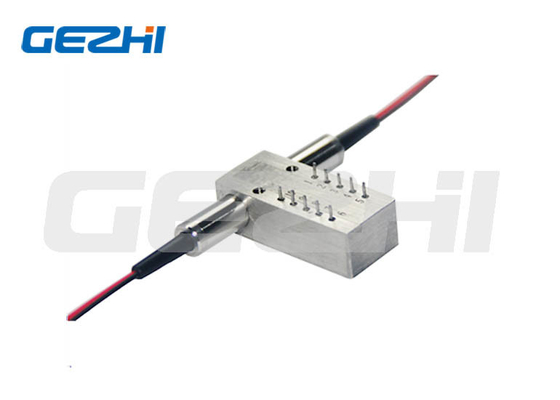

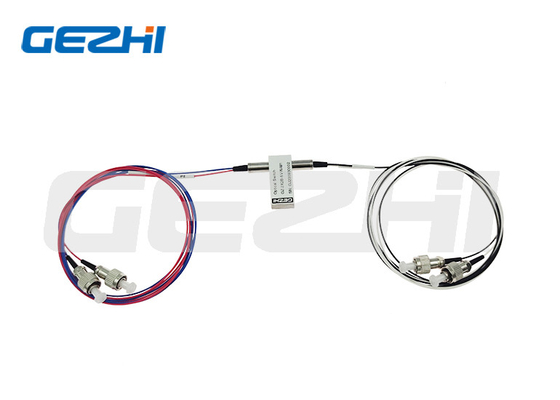

2x2 Bypass Opto-Mechanical Optical Switches
The 2x2B Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.
| Features: | Applications: |
|
Low Insertion Loss |
Network switching |
|
Wide Wavelength Range |
System monitoring |
|
Low Crosstalk |
Channel Blocking |
|
High Stability, High Reliability |
Module and System Integration |
|
Epoxy-free on Optical Path |
Metropolitan Area Network |
| Latching and Non-latching | Network protection and restoration |
Technical Paremeter
| Parameters | Unit | GZ-FSW-2×2B | |
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating avelength | nm | 850/1300 | 1310/1550 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 | |
Pins
| Parameters | Pins | Electric Drive | Status Sensor | ||||||
| 2×2B | Optical Path | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Non-latching | P1-P3 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P4,P2-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
| latching | P1-P3 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P4 P2-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
Optical Route
FAQ
Q1:Can I have a sample order? What is your MOQ?
Video
|
|
