RJ45 Ethernet Remote Management 1x32 Ports 100M Fiber Optical Switches Low Insertion Loss

Name: RJ45 Ethernet Remote Management 1x32 Ports 100M Fiber Optical Switches Low Insertion Loss
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OSW-1x32-13/15-U
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	OSW-1x32-13/15-U
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Feature:

Fast Switching Time

Connector:

FC/UPC Or Customized

Warranty Time:

3 Years

Application:

Cable Monitoring And Maintaining System

Control Type:

Latching Or Non-Latching

Wavelength:

1310/1550nm

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

Low Insertion Loss fiber optical switches

100M fiber optical switches

32 Ports fiber optic ethernet switch

Product Description

RJ45 Ethernet Remote Management 32 Ports 100M Fiber Optical Switches Low Insertion Loss

Product Overview

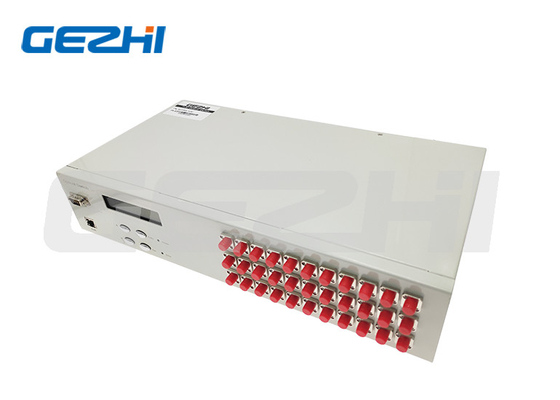

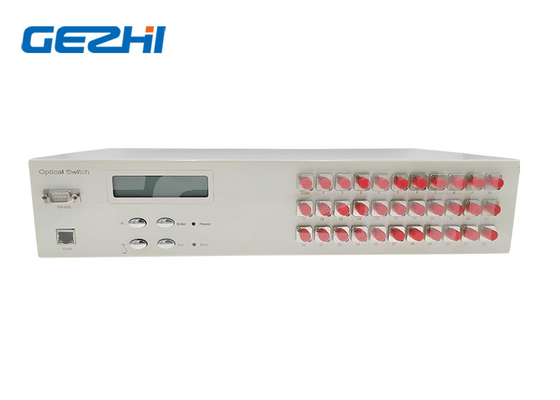

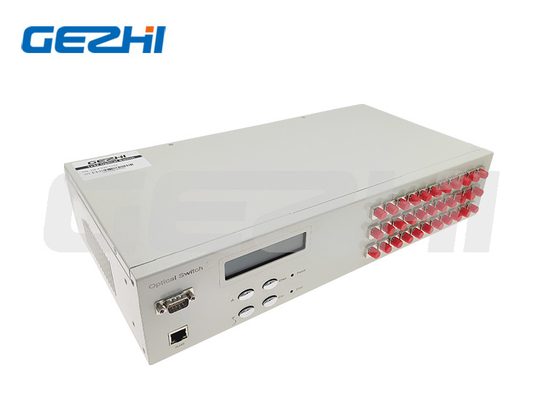

1x32 Multi Channel Optical Switches Rackmount

This 1x32 Optical switches Rackmount is composed of one input and 32 output optical fiber ports, which can selectively transmit, redirect or block the optical power in the optical fiber transmission line. These optical switches are bidirectional and can be used in 1x128 or 128x1 directions. Optical fiber switches are designed for optical fiber communication networks and measuring instruments.

The front panel bulkheads can be fit with typical FC/APC, FC/UPC, SC/APC, SC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC, MPO connector types etc. Normally this 2RU 19” rackmount can install 1x24 , 1x32 , 1x48 , 1x64 or customized Optical Switches.

PRODUCT SPECIFICATIONS


			Parameter

			Unit

			OSW-1x32-U

			Wavelength Range

			nm

			850±40/1300±40

			1260~1650

			Operating Wavelength

			nm

			850/1300

			1310/1550

			Insertion Loss

			dB

			Typ. ≤0.8dB, Max.≤1.5dB

			Typ. ≤0.8dB,Max.≤1.5 dB

			Return Loss

			dB

			MM≥30 SM≥50

			Crosstalk

			dB

			MM≥35 SM≥55

			Polarization Dependent Loss

			dB

			0.05

			WDL

			dB

			≤0.25

			TDL

			dB

			≤0.25

			Repeatability

			dB

			≤±0.02

			Power Supply

			V

			AC:100～ 240 (50/60Hz)

			Lifetime

			times

			≥107

			Switch Time

			ms

			≤10

			Optical Power

			mW

			≤500

			Operating Temperature

			℃

			-20~+75 (-40~+85 available)

			Storage Temperature

			℃

			-40~+85

			Dimension

			mm

			1U:483 x 230 x 45

FEATURES AT A GLANCE
1.Low Insertion Loss and Fast Switching
2.SerialNet, High Reliability, High Stability
3.LCD Display
FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time

A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
