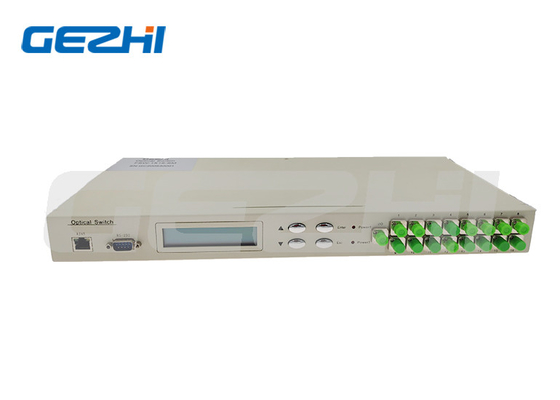

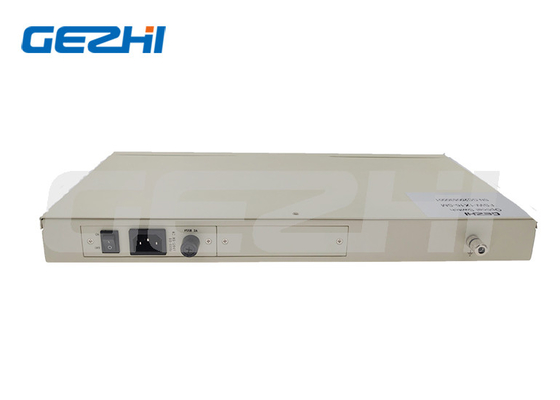

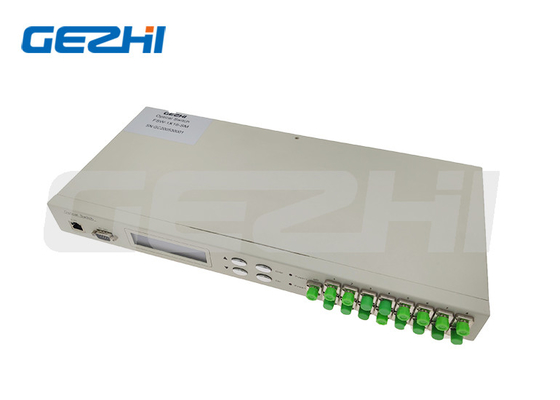

Industrial 16 Ports Fiber Optic Ethernet Switch 100M

Name: Industrial 16 Ports Fiber Optic Ethernet Switch 100M
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OSW-1x16-13/15-U
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	OSW-1x16-13/15-U
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Wavelength:

1310/1550nm

Connector:

FC/UPC Or Customized

Warranty Time:

3 Years

Control Type:

Latching Or Non-Latching

Application:

Cable Monitoring And Maintaining System

Feature:

Fast Switching Time

Interface Protocol:

RS232 And RJ45

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

fiber optic ethernet switch 100M

16 port fiber optic ethernet switch

Industrial switch fiber optic 16 port

Product Description

Product Overview

1x16 Multi Channel Optical Switches Rackmount

1×N rack-mounted optical switch is a kind of functional device,with the ability of controlling and switching optical route. It can be manually selected from front panel or controlled via RS232 port, Ethernet port and auto-scanned on certain frequency. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/ detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.

PRODUCT SPECIFICATIONS

			Parameter

			Unit

			OSW-1x8-U or OSW-1x16-U

			Wavelength Range

			nm

			850±40/1300±40

			1260~1650

			Operating Wavelength

			nm

			850/1300

			1310/1550

			Insertion Loss

			dB

			Typ. ≤0.8dB, Max.≤1.5dB

			Typ. ≤0.8dB,Max.≤1.5 dB

			Return Loss

			dB

			MM≥30 SM≥50

			Crosstalk

			dB

			MM≥35 SM≥55

			Polarization Dependent Loss

			dB

			0.05

			WDL

			dB

			≤0.25

			TDL

			dB

			≤0.25

			Repeatability

			dB

			≤±0.02

			Power Supply

			V

			AC:100～ 240 (50/60Hz)

			Lifetime

			times

			≥107

			Switch Time

			ms

			≤10

			Optical Power

			mW

			≤500

			Operating Temperature

			℃

			-20~+75 (-40~+85 available)

			Storage Temperature

			℃

			-40~+85

			Dimension

			mm

			1U:483 x 230 x 45

FEATURES AT A GLANCE
Low insertion loss, Fast switchingSerialNet, High Reliability, High Stability

LED display panel. Visual display

Transparent transmission signal
RS232 Control & RJ45 Ethernet Remote Management

Product packaging

FAQ
Q1:Can I have a sample order? What is your MOQ?A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time

A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
