Customizable Wavelength Fiber Optical Switches 1x16 Multi Channel Single Mode Multimode

Name: Customizable Wavelength Fiber Optical Switches 1x16 Multi Channel Single Mode Multimode
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OSW-1x16-13/15
Price: Negotiable USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	OSW-1x16-13/15
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Type:

FTTx Solutions

Port:

1x16

Warranty Time:

3 Years

Wavelength:

1260-1650nm

Application:

Ring Network

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

multi channel fiber optical switches

1x32 fiber optical switches

customizable fiber optic switch 16 port

Product Description

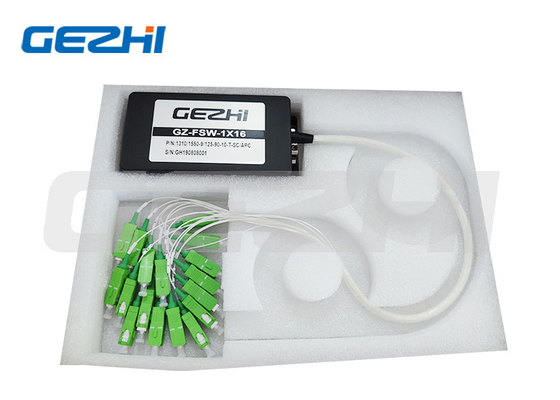

Customizable Wavelength Fiber Optical Switches 1x16 Multi Channel Single Mode Multimode

Product Overview

1x16 Multi Channel Optical Switches

The 1X16 Opto-Mechanical Optical Switches consists of 1 input and 16 output fiber ports that selectively transmits, redirects,or blocks optical power in a fiber optic transmission line.

GEZHI Photonics produce full range of optical switch with customized specifications:
1x4,1x8,1x12,1x16,1x24,1x32,1x64.....1x128 multi channel Fiber Optical Switches

FEATURES
Low Insertion Loss
More Than 128 Channels

High Stability & Reliability

Parallel Interface (TTL)
Customzied Wavelength available
Modularized Design

PRODUCT SPECIFICATIONS


			Parameter

			Unit

			OSW-1x16 or OSW-1x16

			Wavelength Range

			nm

			850±40/1300±40

			1260～1650

			Operating Wavelength

			nm

			850/1300

			1310/1550

			Insertion Loss

			dB

			<1.2

			<1.2

			Return Loss

			dB

			MM≥30 SM≥50

			Crosstalk

			dB

			MM≥35 SM≥55

			Polarization Dependent Loss

			dB

			0.05

			WDL

			dB

			≤0.25

			TDL

			dB

			≤0.25

			Repeatability

			dB

			≤±0.02

			Power Supply

			V

			3.0 or 5.0

			Lifetime

			times

			≥107

			Switch Time

			ms

			≤8

			Optical Power

			mW

			≤500

			Operating Temperature

			℃

			-20~+75 (-40~+85 available)

			Storage Temperature

			℃

			-40~+85

			Dimension

			mm

			(L)27.0×(W)12.0×(H)8.2

FAQ

Q1:Can I have a sample order? What is your MOQ?A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time

A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
