| Brand Name: | GEZHI or OEM |
| Model Number: | CWDM16CHM271 |
| MOQ: | 1 |
| Price: | Get Latest Price |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, Western Union |

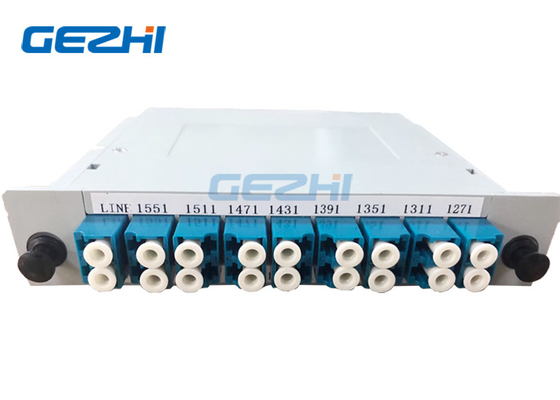

Insert type 16CH CWDM Module 1271~1571nm
GEZHI Insert type 16CH CWDM Module 1271~1571nm was developed as a way to increase the bandwidth capacity of fiber-optic data cabling. The Insert type 16CH CWDM Module 1271~1571nm multiple optical carrier signals into a single optical fiber by using different wavelengths of light to carry each individual signal. The wavelength of Insert type 16CH CWDM Module 1271~1571nm is 1260~1620nm for custom choice.
| Features | Applications |
|
|
Specification
| Parameter |
Unit |
16CH CWDM | ||
| Mux | Demux | |||
| Channel Wavelength | nm | 1271~1611nm | ||
|
Center wavelength Accuracy |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
|
Channel Passband (@-0.5dB bandwidth |
nm | >13 | ||
| Max Insertion Loss | dB | <4.5 or <3.2 with Skip | <4.5 or <3.2 with Skip | |
| Channel Ripple | dB | 0.3 | ||
| Isolation | Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ | <0.005 | ||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.1 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -5~+75 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | L120x80x18 | ||
Note: 1. Customization is available.
2. Specified with connector
|
|
