| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-CWDM System |
| MOQ: | 1 |
| Price: | Get Latest Price |
| Delivery Time: | 2~7working days |
18CH Dual Fiber CWDM Module Passive With LC / SC / FC / ST Connector

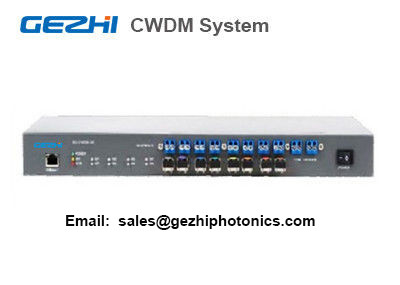

CWDM /GZ-CWDM-04 4 channel CWDM MUX system is a sort of multi-service processing and transmission device that designed especially for point-to-point applications.
Product function:
CWDM is a sort of multi-service processing and transmission device that designed especially for point-to-point applications. It provides interfaces such as ATM, Gigabit Ethernet, STM-1/4/16 and OC-3/12/48 on the basis of a transparent transmission platform constructed by virtual fiber-optic capability enhancing devices, which can fulfill upstream/downstream transmission services at various speed including 100/155/200/622/1000/1250/2500M, and entirely increase the performance/price ratio of the optical network platform.
CWDM adopts a box structure of 19" rack, of height 1U and depth 180 mm. The product can be mounted on the standard 19" rack, with the front panel providing optical interfaces for channels and lines, working and alarm indicators, 10/100M auto-negotiating network management interfaces, RS232 network management commissioning interface etc., and the rear panel providing AC 220V / DC -48V power supply socket interfaces and power switches etc.
System Interface:
| Maximum capability | 4 wavelengths (10Gbps) |
| Range of wavelength | Comply with ITU-T @G694.2 standard |
| Type of service access |
PDH/FICON/ESCON/FIBER Channel
|
| Applied network nodes | OTM |
| Supported network topology | Point-to-point |
| Network Management interface (Optional) | SNMP MIB or Telnet interface |
| Fiber quantity |
Single fiber 4 wavelengths; dual fiber for expanding to 8 wavelengths |
Optical interface:
| Transmission central wavelength | 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm or 1610nm |
| Interchannel clearance | 20nm |
| Width of optical band pass | +/- 6 nm |
| Temperature drift of central wavelength | 0.08nm~0.1nm |
| Transmission distance | 30km, 50km or 80km, optional |
| Power supply | |
|
working voltage range wide, good
|
|
| environment condition | |
| Operating temperature | 0C~+50 C |
| Storage temperature | -20 C~+70 C |
| Relative temperature | 95% (uncondensed) |
| Dimention | 1U standard 19" rack |
8channel CWDM MUX system
Application diagram
|
|
