| Brand Name: | GEZHI or OEM |
| Model Number: | CWDM8CHMD47LPLGX |
| MOQ: | 1pcs |
| Price: | Get Latest Price |
| Delivery Time: | 1~3working days after payment |
| Payment Terms: | T/T, Paypal,Western Union |

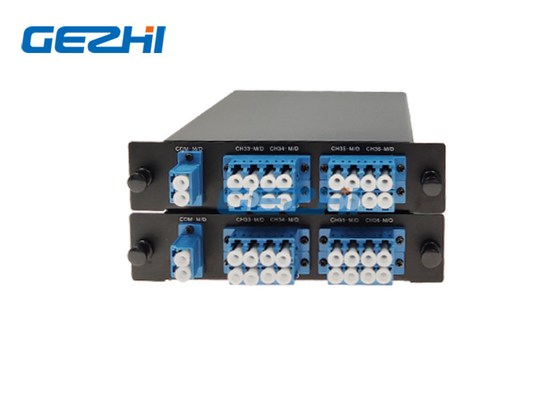

Fiber Optic Equipment 1x8 CWDM Modules
The Fiber Optic Equipment 1x8 Compact LGX WDM module performs 8ch CWDM signals mux & demux with 1470~1610nnm wavelength. This LGX has smaller size than ordinary one and takes up less space in system. Its can be customized with 1310nm Grey port , Monitor Port , or Expansion port for future development and fiber extend.
|
Features |
Applications |
|
|
Specifications
| Parameter | Value | ||
| CWDM Channels Number | 4 | 8 | |
| Operation Wavelength (nm) | 1470~1610 OR 1471~1611 | ||
| Center wavelength accuracy (nm) | ± 0.5 | ||
| Channel Spacing (nm) | 20 | ||
| Passband (@-0.5dB bandwidth)(nm) | ±7 & ±6.5 | ||
| Insertion Loss(dB) | 1.5 | 2.5 | |
| Pass band Flatness(dB) | 0.3 | ||
|
Isolation(dB)
|
Adjacent Channel | 30 | |
| Non-adjacent Channel | 45 | ||
| Insertion Loss Temperature Sensitivity (dB/°C ) | <0.005 | ||
| Wavelength Temperature Shifting (nm/ °C ) | <0.002 | ||
| PDL (dB) | <0.10 | ||
| PMD (ps) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return Loss (dB) | >45 | ||
| Rated power (mW) | 500 | ||
| Operation Temperature (°C) | -20 ~ +70 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimension (mm) | LGX Cassette | ||
GEZHI Main Products CWDM,DWDM,AWG Modules,Optical Switches
|
|
