| Brand Name: | GEZHI or OEM |
| Model Number: | CWDMO8CHWED4591LP |
| MOQ: | 1pcs |
| Price: | Get Latest Price |
| Delivery Time: | 5~8work days |
| Payment Terms: | T/T, Paypal,Western Union |

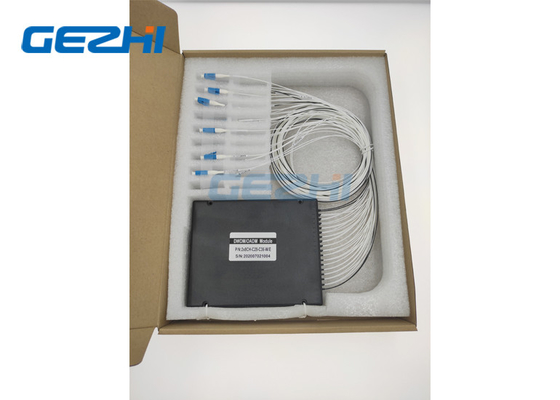

8CH CWDM OADM Modules Duplex Fiber
The 8CH CWDM OADM Modules Duplex Fiber of GEZHI is a passive optical add/drop multiplexer designed for point-to-point, ring, or bus configurations' applications that provides the ideal solution for the increasing bandwidth demand on enterprise and metro access networks and delivers dramatic cost savings to network equipment manufacturers, enabling them to develop metro access systems that are lower in cost, easier to provision and simpler to operate.
|
Features |
Applications |
|
|
Specification
| Parameter |
Unit |
8CH CWDM OADM | ||
| Add | Drop | |||
| Channel Wavelength | nm | 1470~1610nm | ||
|
Center wavelength Accuracy |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
|
Channel Passband (@-0.5dB bandwidth |
nm | >13 | ||
| Insertion Loss | dB | <2.5 | <2.5 | |
| Channel Ripple | dB | 0.3 | ||
| Isolation | Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ | <0.005 | ||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.1 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | >50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | 140x115x18 | ||
Note: 1. Customization is available.
2. Specified with connector
Ordering Information
| CWDM | XX | X | XX | X | X | XX |
| OADM | Number of Channels |
Confi -guration |
1st Channel | Fiber Type | Fiber Length | In/Out Connector |
|
04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel |
S=Single Fiber D=Dual Fiber |
27=1270nm …… 47=1470nm 49=1490nm …… 61=1610nm SS=special |
1=Bare fiber 2=900um loose tube 3=2mmCable 4=3mmCable |
1=1m 2=2m S=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
|
|
