| Brand Name: | GEZHI or OEM |
| Model Number: | 8CH CWDM Mux+Demux |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
8 Multi channel CWDM Mux&Demux Plug-in Module 4 cards LGX chassis in Rackmount
CWDM Mux Demux is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Channel: 8 Channel CWDM
Wavelength: 1470~1610nm (customized is available)
Adaptor: LC/PC Duplex
Monitoring: Available.
Packing: 8 Channel Mux&Demux CWDM in a LGX chassis, 4pcs LGX in one 19" 1U Rackmount
Features
4-Slot for MUX/DEMUX card
1U, 19-inch Rack Mount
Plug & Play Operation
Protocol transparent, no limitation
Utilizes industry standard ITU-T CWDM wavelengths
Optical connectors: LC connectors, SMF 9/ 125um
Applications
Telecom Networks
Metro Networks
Optical Add/Drosp Multiplexing
Specification
| Parameter | 8CH Mux+Demux with Monitoring & Upgrade Port | ||
| Center Wavelength (nm) | ITU, ITU+1 | ||
| Passband (nm) | ITU±6.5 | ||
| Operating Wavelength (nm) | 1470~1610nm | ||
| Channel Space (nm) | 20 | ||
| Fiber Type | SMF-28e or customer specified | ||
| IL (dB) | <2.5dB | ||
| Isolation(dB) | Adjacent Channel | 30 | |
| Non-Adjacent Channel | 45 | ||
| PDL (dB) | 0.2 | ||
| PMD (ps) | 0.1 | ||
| Return Loss (dB) | 45 | ||
| Directivity (dB) | 50 | ||
| Maximum Optical Power (mw) | 500 | ||
| Operating Temperature (℃) | -20~+70 | ||
| Storage Temperature (℃) | -40～85 | ||
| BOX Package (mm) | LGX chassis, 4pcs LGX box in a 19" 1U Rackmount | ||
Detail Picture

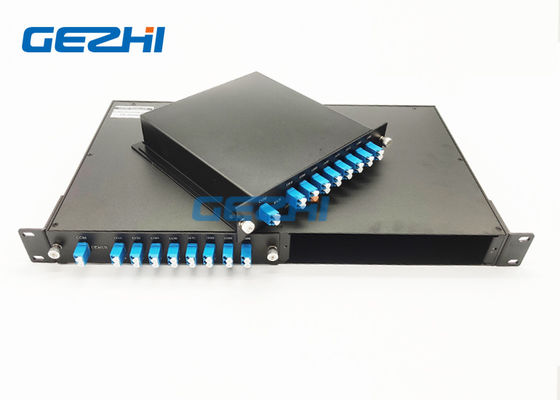

4cards LGX chassis pack into 19" 1U Rackmount
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer Of CWDM Mux Demux. We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
|
|
