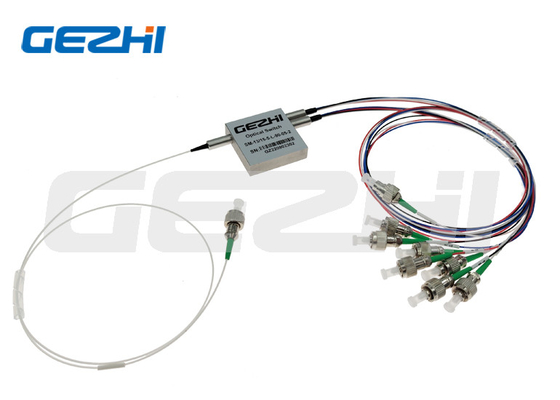

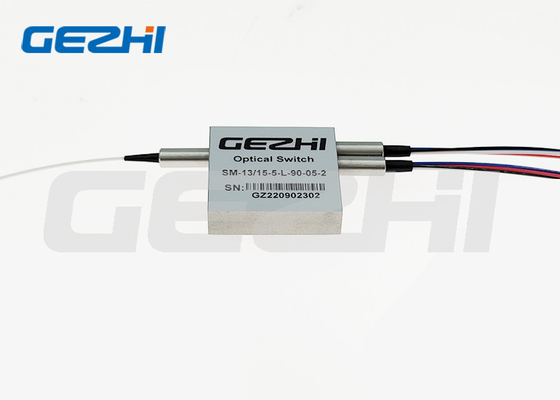

1x8T 1310/1550nm Opto-Mechanical Optical Switches for Channel blocking
GEZHI Photonics ’ 1x8T 1310/1550nm Opto-mechanical optical switches is single mode fiber which support wide wavelength 1260~1650nm and with FC/APC pigtailes. This 1x8T Opto-mechanical optical switches is bidi-rectional working. With Low insertion loss and high stability and reliability.
We supply various type of optical switches like 1x1, 1x2, 2x2 Bypass, 2x2 Full, Dual 1x2, D2x2, 2x2A, 1x4, 1x8 and 4x4 configurations for single mode or multimode fibers. GEZHI Photonics can offer customized specification of opto-mechancial optical switches.
|
Features Miniature size Short switching time Bi-directionalLow optical distortions Low Insertion Loss, Low cross talk |
Applications System monitoring R&D in Laboratory Metropolitan Area Network Network protection and restoration Instrumentation, testing, and measurement |
Specification of 1x8T 1310/1550nm Opto-machanical optical switches
| 1×8 Optical Switch T-type | Unit | Typical |
| Operation Wavelength | nm | 1310&1550nm |
| Insertion Loss | dB | <1.2 |
| Wavelength Dependent Loss | dB | <0.30 |
| Polarization Dependent Loss | dB | <0.1 |
| Return Loss | dB | >55 |
| Cross Talk | dB | >55 |
| Switching Time | ms | Typical: 4 Max:10 |
| Repeatability | dB | <±0.02 |
| Durability | Cycles | >10 Million |
| Switching Type | Latching / Non-Latching | |
| Optical Power Handling | mW | <500mW |
| Operating Voltage | VDC | 3V or 5V |
| Operating Temperature | ℃ | 0~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Fiber Type | / | SM/MM Fiber |
| Package Dimension | mm | 35L x 35W x 9H |
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
Ordering Information of 1x8T 1310/1550nm Opto-machanical optical switches
GZ-FSW-1x8T-x-xx-x-x-xx-xx-x
| X | XX | X | X | XX | XX | X |
| Mode | Wavelength | Voltage Type | Control Model | Fiber Diameter | Fiber Length | Connector |
|
S=SM 9/125 M5=MM 50/125 M6=MM 62.5/125 |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
25=250um 90=900um |
05=0.5m 10=1.0m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
Pins of 1x8T 1310/1550nm Opto-machanical optical switches
Electric of 1x8T 1310/1550nm Opto-machanical optical switches
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 V | 22.2(±10%) mA | 202.5(±10%) Ω |
| 5V non-latching | 4.5~5.5 V | 31(±10%) mA | 145(±10%) Ω |
| 3V latching | 2.7~3.3 V | 33.3(±10%) mA | 90(±10%) Ω |
| 3V non-latching | 2.7~3.3 V | 46.7(±10%) mA | 64.2(±10%) Ω |
Dimension of 1x8T 1310/1550nm Opto-machanical optical switches
