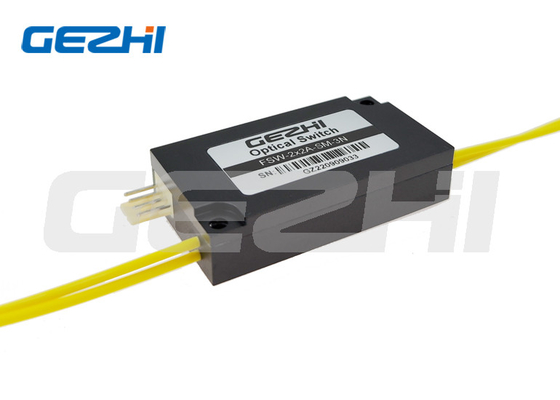

4 pins 2x2A Opto-Mechanical Optical Switches in aluminum black box
The 2x2A Opto-Mechanical Optical Switches with 4 pins in a aluminum black box. The 4 pins 2x2A opto-mechanical optical switches connects optical channels by redirecting 2 incoming optical signals into 2 output fibers. This is achieved using a opto-mechanical configuration and activated via an electrical control signal. The 2x2A Optical switches with low insertion loss and high stablility and reliability.
GEZHI Photonics offers most affordable high performance Opto-Mechanical Fiber Optic Switches. Our Mechanical Fiber Optic Switches are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Currently configurations includes 1x1, 1x2, 2x2 Bypass, 2x2 Full, Dual 1x2, D2x2, 2x2A, 1x4, 1x8 and 4x4 configurations for single mode or multimode fibers. GEZHI Photonics can offer customized specification of opto-mechancial optical switches.
|
Features Compact design, Miniature size Low cross talk, Low Insertion Loss Single mode or Multimode optional |
Applications Network switching Module and System Integration |
Specification of 2x2A Signal VCC GND Optical Switches
|
Parameters
|
4pins 2x2A Optical Switches | ||
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.7 Max:1.0 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Dimension | mm | (L)55.0×(W)30.0×(H)12.8 customization is available. | |
Order Information 4pins 2x2A Opto-Mechanical Optical Switches
GZ-FSW-2×2A-X-xx-x-x-x-xx-x-x
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None X=Others |
Optical Route of 4pins 2x2A Opto-Mechanical Optical Switches
