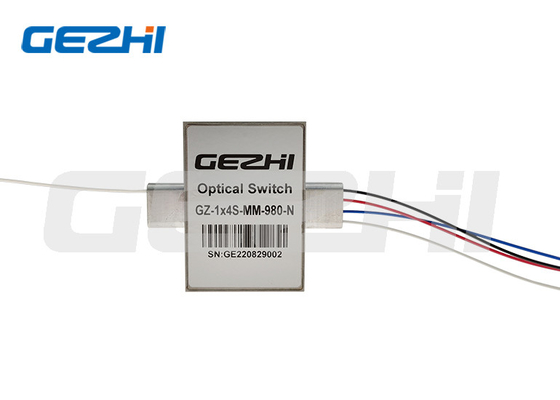

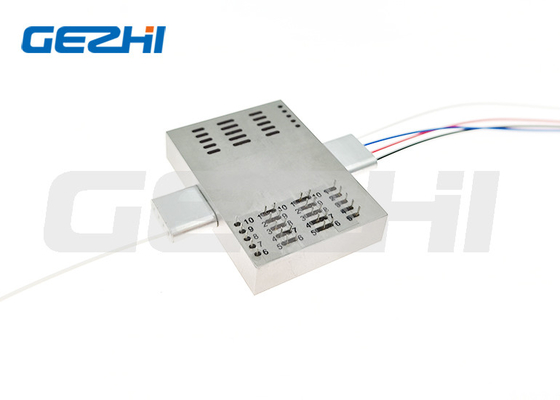

FSW-1x4T Optical Switches for Channel Switching of laser / medical equipment
This 1x4 T Optical switches is support 750nm, 780nm , 980nm or customized wavelength. Its with S105/125um big core fiber. Its widely used in channel switching of laser, medical equipment, system monitory, R&D in laboratory. GEZHI Photonics can support customized wavelength, fiber and channel number etc. The 1x4 T Optical switches with high stablity and reliability.
|
Features |
Applications |
|
|
Specification of 1x4 T Optical Switches
| 1x4 T Type Switch | Unit | Typical |
| Operation Wavelength | nm | 750nm 780nm or 980nm |
| Insertion Loss 1 | dB | <1.5 |
| Wavelength Dependent Loss | dB | <0.2 |
| Polarization Dependent Loss | dB | <0.2 |
| Return Loss | dB | SM: >55 MM:>35 |
| Cross Talk | dB | SM: >55 MM:>35 |
| Switching Time | ms | Typical: 4 Max:10 |
| Repeatability | dB | <±0.02 |
| Durability | Cycles | >10 Million |
| Switching Type | Latching / Non-Latching | |
| Optical Power Handling | mW | <500mW |
| Operating Voltage | VDC | 3V or 5V |
| Operating Temperature | ℃ | -5~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Fiber Type | / | SM/MM Fiber |
| Package Dimension | mm | 27L x 23W x 8.2H |
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
GZ-FSW-1x4T-x-xx-x-x-xx-xx-x
| X | XX | X | X | XX | XX | X |
| Mode | Wavelength | Voltage Type | Control Model | Fiber Diameter | Fiber Length | Connector |
|
S=SM 9/125 M5=MM 50/125 M6=MM 62.5/125 S105/125=S105/125um |
780=780nm 980=980nm 1060=1060nm S=Specify |
3=3V 5=5V |
L=Latching N=Non- Latching |
25=250um 90=900um |
05=0.5m 10=1.0m X=Others |
00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LC/APC X=Others |
| Type |
Sta te |
Optical Route |
Electric Drive | Status Sensor | ||||||||||||||
| Relay 1 (Pin) | Relay 2 (Pin) | Relay 1 (Pin) | Relay 2 (Pin) | |||||||||||||||
| 1 | 5 | 6 | 10 | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | 2-3 | 3-4 | 7-8 | 8-9 | |||
| 1x4 | A | COM-P1 Black | - | - | GND | V+ | V+ | GND | - | - | close | open | open | close | open | close | clsoe | open |
|
Latch ing |
B | COM-P2 Red | V+ | GND | - | - | - | - | GND | V+ | open | close | close | open | close | open | open | close |
| C | COM-P3 Blue | - | - | GND | V+ | - | - | GND | V+ | close | open | open | close | close | open | open | close | |
| D | COM-P4 White | V+ | GND | - | - | V+ | GND | - | - | open | close | close | open | open | close | close | open | |
|
Non- Latch ing |
A | COM-P1 Black | - | - | - | - | V+ | - | - | GND | close | open | open | close | open | close | close | open |
| B | COM-P2 Red | V+ | - | - | GND | - | - | - | - | open | close | close | open | close | open | open | close | |
| C | COM-P3 Blue | - | - | - | - | - | - | - | - | close | open | open | close | close | open | open | close | |
| D | COM-P4 White | V+ | - | - | GND | V+ | - | - | GND | open | close | close | open | open | close | close | open | |
Optical Route Of 1x4 T Optical switches with S105/125um fiber
Dimension Of 1x4 T Optical switches with S105/125um fiber
