| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-1x4-mini |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

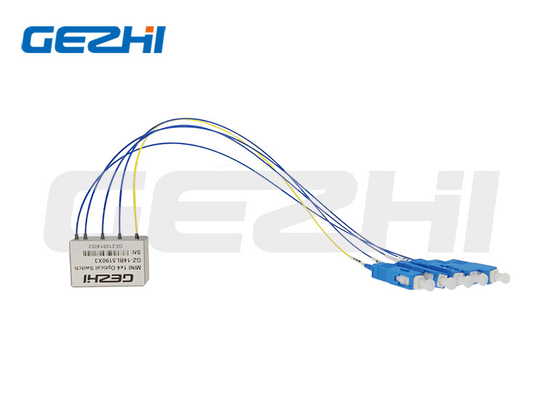

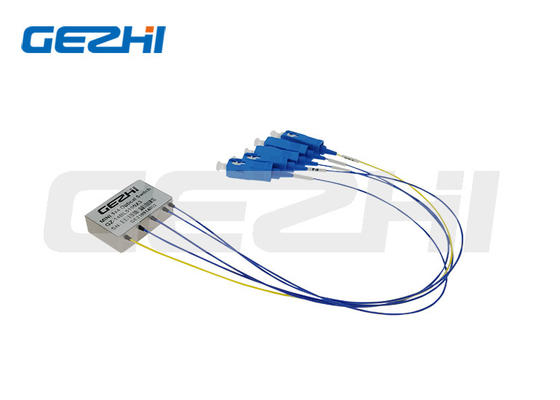

1x4 mini Optical Switches
Gezhi fiber-optic switches are designed based on refraction optical principle which reduces moving part position sensitivity. It featuresexcellent mechanical and optical performance and unify different switch configuration of Mini 1x4 and Mini 1x8 onto the same compact package. The products are Telcordia GR-1073-CORE qualified, and RoHS complaint.
|
Features Fail-Safe Latching
Unmatched Low Cost
Low Optical Distortions Epoxy-Free Optical Path
High Reliability
|
Applications Channel Blocking Configurable Add/Drop
System Monitoring
Instrumentation
|
Specification
| Parameters | Specifications | Unit |
| Operating Wavelength | 1260~1620(SM) | nm |
| Insertion Loss | ≤1.0 | dB |
| Wavelength Dependent Loss | ≤0.25 | dB |
| Polarization Dependent Loss | ≤0.05 | dB |
| Temperature Dependent Loss | ≤0.20 | dB |
| Return Loss | SM≥50 | dB |
| Cross Talk | SM≥55 | dB |
| Switch Time | ≤8 | ms |
| Repeatability | ≤±0.02 | dB |
| Durability | ≥107 | times |
| Operating Voltage | 3 or 5 | V |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | －20~＋70 | ℃ |
| Storage Temperature | －40~＋85 | ℃ |
| Optical Power | ≤500 | mW |
| Dimension | 27.0L×12.5W×8.4H | mm |
Pins
1x4 Optical Switch Order Information
GZ-1x4-1550nm
Order Information
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None X=Others |
Video
|
|
