| Brand Name: | GEZHI or OEM |
| Model Number: | Dual 1x2 Optical Switch |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

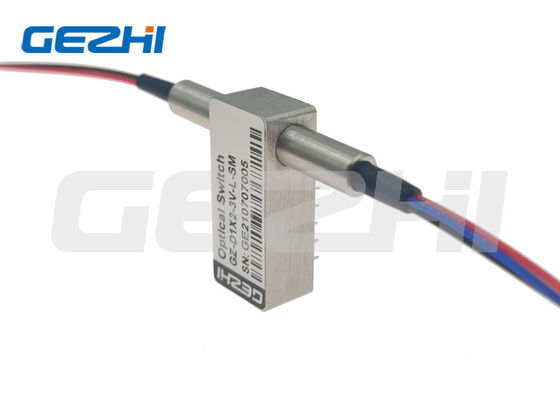

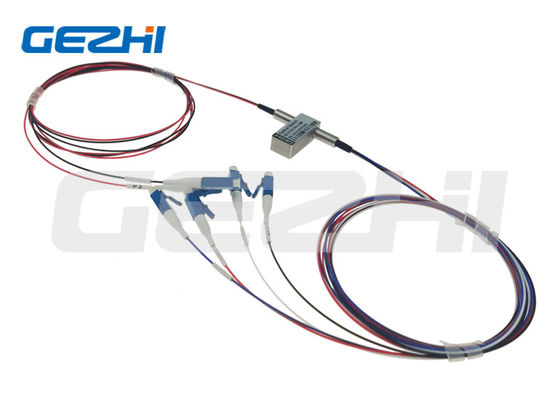

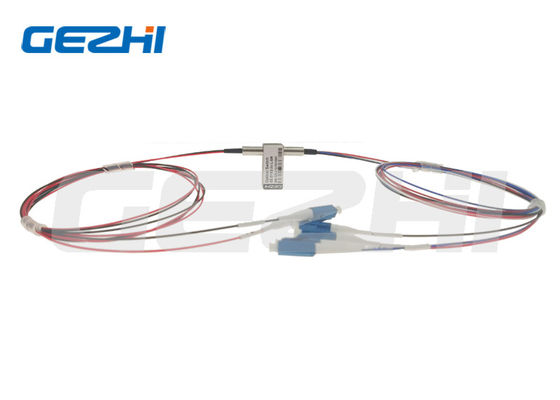

Dual Relay Switch D1x2 Mechanical Optical Switches Double Pole Double Throw
GEZHI Dual 1x2 Optical Switches configurate by Six fibers and two states also called 2x4 Fiber Optical Switch. It connect with LC/UPC connector and with Non-latched type. GEZHI Duplex 1x2 Opto-mechanical switches connects optical channels by redirecting an incoming optical signal into a selected output fiber. The D1x2 mechanical Optical Switches is apllication in R&D in laboratory, Metropolitan Area Network and Configurable OADM.
Features
Low Insertion Loss
Wide Wavelength Range
Long Lifetime
High Stability, High Reliability
Epoxy-free on Optical Path
Applications
System Monitoring
Configurable OADM
R&D in Laboratory
MAN (Metropolitan Area Network)
Specification
| Model | Unit | GZ-FSW-D1x2 | |
| Operatingwavelength | nm | 850±40/1300±40 | 1260～1620 |
| wavelength | nm | 850&1300 | 1310&1550 |
| Insertion loss | dB | Typ:0.7 Max:1.0 | |
| Return loss | dB | MM≥30 SM≥50 | |
| Cross talk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Voltage | v | 3.0 or 5.0±0.5 | |
| Operating life | Time | ≥107 | |
| Switch time | ms | ≤8 | |
| Power handling | mW | ≤500 | |
| Operating temperature | ℃ | -20～+70 | |
| Storage temperature | ℃ | -40～+85 | |
| Size | mm | 27.0×12×8.2 | |
| Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. | |||
Customization is available.
Dual 1x2 Optical Switch Order Information
GZ-FSW-D1x2-x-xx-x-x-x-xx-x-xx
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LP/APC X=Others |
Optical Route
Pins
| Type | State | Pin definition | Power | Condition monitoring | ||||||
| D1x2 | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | ||
| Non-latching | A | P1- P3’,P2-P4’ | -- | -- | -- | -- | Close | Open | Open | Close |
| B | P1-P1’,P2-P2’ | V+ | -- | -- | GND | Open | Close | Close | Open | |
| Latching | A | P1- P3’,P2-P4’ | -- | -- | GND | V+ | Close | Open | Open | Close |
| B | P1-P1’,P2-P2’ | V+ | GND | -- | -- | Open | Close | Close | Open | |
Video
|
|
