| Brand Name: | GEZHI or OEM |
| Model Number: | 1x2 PM Optical Switch |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

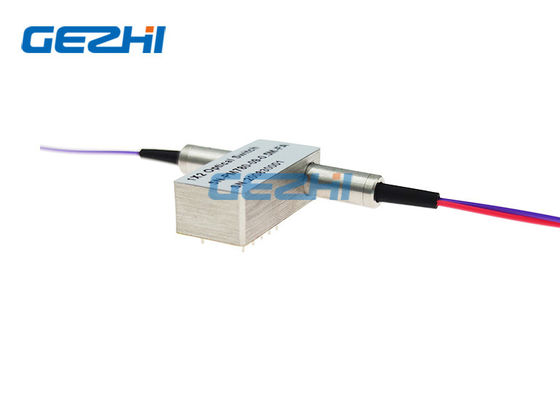

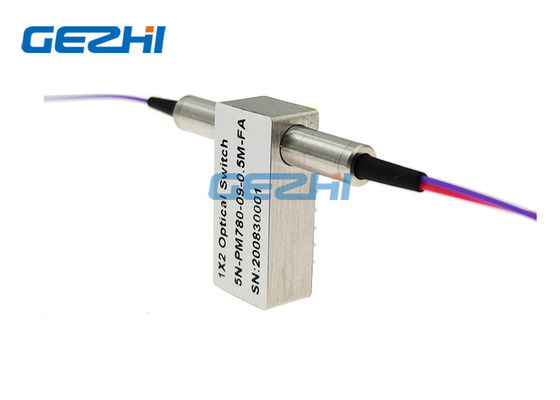

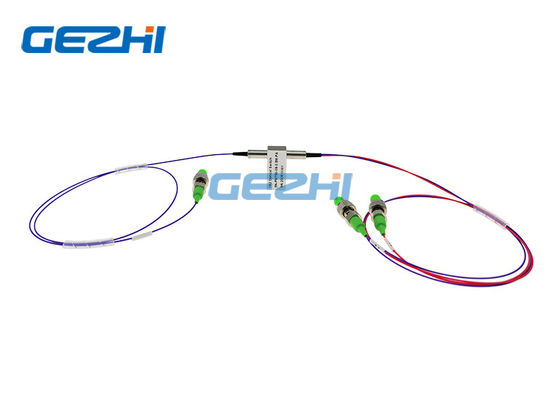

780nm Polarization Maintaining 1x2 PM Fiber Optical Switches
GEZHI Photonics Co.,Ltd’s PM Optical Switches series of polarization maintaining Fiber Optic switches are 1X1 port and 1×2 ports micro optic devices built with PM Panda fiber. These devices can switch the optical input to one of two outputs while maintaining the polarization of the signal.The PM Optical Switches series enables bi-directional operation. And widely used in the field of optical cross, PON networks and connection system, optical fiber ring protection and network monitor . For a variety of applications, latching as well as non-latching variants are available. The Optical Switches series is characterized with a low insertion loss, wide operating wavelength range, high extinction ratio and excellent stability and reliability.
Features
Low insertion loss
High extinction ratio
Wide Wavelength Range
Bi-directional Operation
Excellent stability and reliability
Applications
Polarization maintaining optical system
Re-Configurable OADM
Optical network protection & restoration
Optical Cross and connector system
Instrumentation,Testing & Measurement
Specification
|
Parameters |
GZ-FSW-1×2-PM | |||
| Operating Wavelength | nm | 780±10 / 850 ±10 | 980±10 /1064±10 | 1310,1480,1550±30 |
| Insertion Loss | dB | Typ:1.2 Max:1.5 | Typ:1.0 Max:1.2 | Typ:0.6 Max:1.0 |
| Return Loss | dB | ≥40 | ≥50 | ≥55 |
| Crosstalk | dB | ≥40 | ≥55 | ≥55 |
| Repeatability | dB | ≤±0.02 | ||
|
Power Supply |
V | 3.0 or 5.0 | ||
| Lifetime | Time | ≥107 | ||
| Switch Time | ms | ≤8 | ||
| Transmission Power | mW | ≤500 | ||
| Operating Temperature | ℃ | -20~+70 | ||
| Storage Temperature | ℃ | -40~+85 | ||
| Dimension | mm | (L)27×(W)12.0×(H)8.2 | ||
Note: 1. Customization is available.

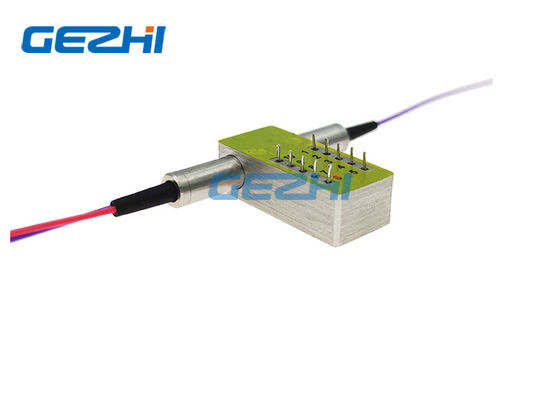

Pins
| Type | Pin | Electric Drive | Status sensor | ||||||
| 1×2 | channel | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Latching | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
Optical Route
| Status One | Status Two |
|
|
|
1x2 Optical Switch Order Information
GZ-FSW-1x2-xx-x-x-x-xx-x-xx
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
|
1x1 1x2 |
780=780nm 850=850nm 980=980nm 1064=1064nm 1310=1310nm 1480=1480nm 1550=1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
PM=PM fiber X=Others |
25=250um 90=900um X=Others |
1=1m 2=1.5m X=Others |
00=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC STP=ST/PC STA=ST/APC LP=LC/PC LA=LP/APC X=Others |
Video
|
