| Brand Name: | GEZHI or OEM |
| Model Number: | GZ-FSW-2x2F |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

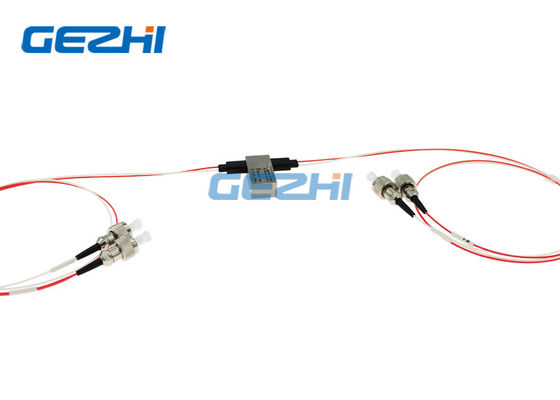

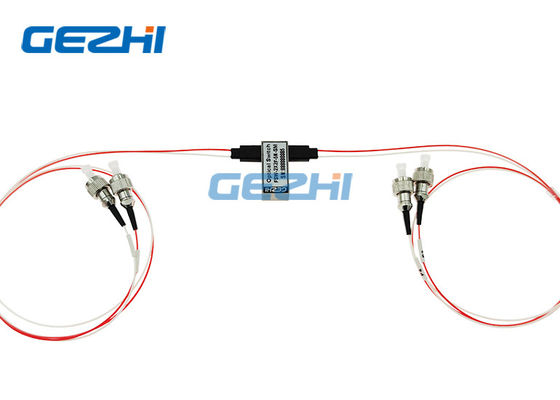

Blocked Dual 1x1 Optical Switches for Channel Blocking
The Dual 1x1 Optical Switches of GEZHI Photonics Co.,Ltd also means 2x2 Full mechanical Fiber optical switch, its with Through and Cross optical state. Its used in Configuration add/drop solution, Channel Blocking, wth high reliability and low optical distortions .
|
Features Fail-Safe Latching
Unmatched Low Cost
Low Optical Distortions Epoxy-Free Optical Path
High Reliability
|
Applications Channel Blocking Configurable Add/Drop
System Monitoring
Instrumentation
|
Specification
| Parameters | Specifications | Unit |
| Operating Wavelength | 1260~1620(SM) | nm |
| Insertion Loss | ≤1.0 | dB |
| Wavelength Dependent Loss | ≤0.25 | dB |
| Polarization Dependent Loss | ≤0.05 | dB |
| Temperature Dependent Loss | ≤0.20 | dB |
| Return Loss | SM≥50 | dB |
| Cross Talk | SM≥55 | dB |
| Switch Time | ≤8 | ms |
| Repeatability | ≤±0.02 | dB |
| Durability | ≥107 | times |
| Operating Voltage | 3 or 5 | V |
| Switch Type | Non-Latching/Latching | |
| Operating Temperature | －20~＋70 | ℃ |
| Storage Temperature | －40~＋85 | ℃ |
| Optical Power | ≤500 | mW |
| Dimension | 27.0L×12.5W×8.4H | mm |
Pins
| Type | Optical Route | Electric Drive | State Sensor | ||||||
| Full 2×2 | Pin 1 | Pin 5 | Pin 6 | Pin 10 | Pin 2-3 | Pin 3-4 | Pin 7-8 | Pin 8-9 | |
| Latching | P1-P4,P2-P3 | -- | -- | GND | V＋ | Close | Open | Open | Close |
| P1-P3,P2-P4 | V＋ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | P1-P4,P2-P3 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P3,P2-P4 | V＋ | -- | -- | GND | Open | Close | Close | Open | |
Order Information
GZ-FSW-2×2F
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None X=Others |

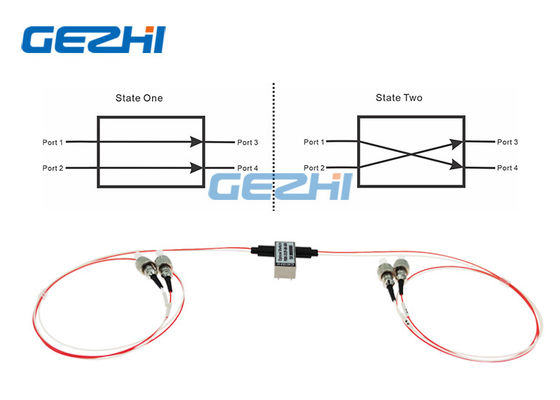

Optical Route
Mechanical Drawing
Video
|
|
