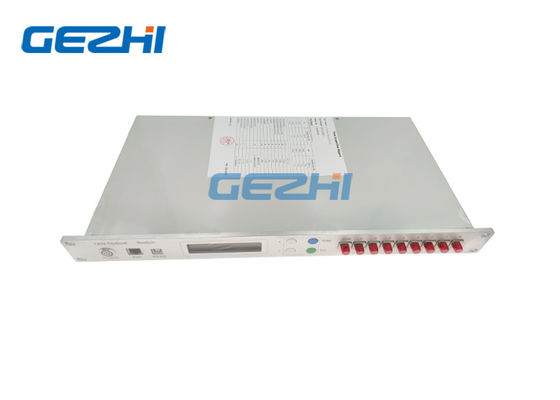

1064nm 1x8 Fiber Optical Switch Module Kits
The multichannel of 1x8 Fiber Optical Switch module kits from GEZHI Photonics provides channel selection between a single input and N output fibers. The output channel number is customer specified and it can be 1x8, 1x16, 1x32 up to 1x64. It comes with a turn-key solution with USB interface and software controlled operation via computer. This 1x8 optical switch can be OEM or bench top model.
|
Features Low insertion loss |
Applications System testing |
Specification
| Parameters | Unit | Indicators |
| Unit Type | FSW-1x8-MM-FP | |
| Wavelength Range | nm | 800~1100nm |
| Test Wavelength | nm | 850 nm |
| Insertion Loss | dB | Typ. ≤0.8dB,Max.≤1.5 dB |
| Repeatability | dB | ≤ 0.02 |
| Return Loss | dB | ≥ 35 |
| Crosstalk | dB | ≥ 70 |
| WDL | dB | ≤ 0.25 |
| PDL | dB | ≤ 0.05 |
| Optical Power | mW | ≤ 500 |
| Switching Time | ms | ≤10 ms(adjacent channel) |
| Fiber Type | um | 9/125 |
| Connector | FC/PC | |
| Monitoring Port | RJ45 & RS-232 | |
|
Working Power Supply (Plug-type) |
V |
AC:100～ 240 (50/60Hz) |
| Power Consumption | W | ＜ 10 |
| Operating Temperature | ℃ | -10 ～ 60 |
| Size | mm | 1U:483 x 230 x 45 |
1064nm 1x8 Fiber Optical Switch Module Kits

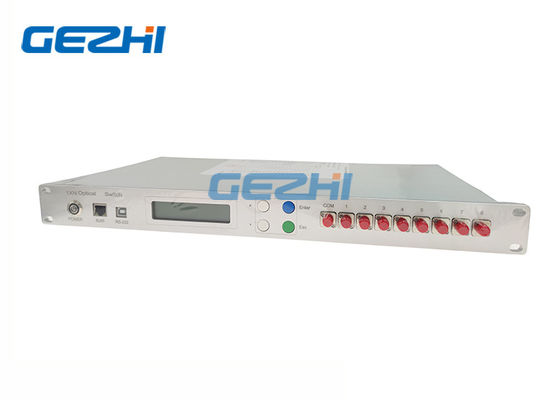

Panel to Explain:
◆Power: Master switch of power supply
◆LCD:Devices that display information directly;
◆RS-232: Rs- serial interface ; RS232 serial communication interface;
◆RJ45:Communications network management interface ;
◆▲: Key to move up; ▼: Key to move down; Enter: Key to determine; Esc: Key to cancel;
◆com,1~8:Fiber interface;
1064nm 1x8 Fiber Optical Switch Module Kits

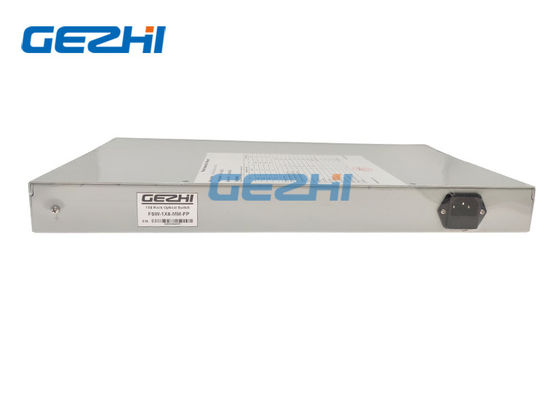

Back Panel
◆AC:100~240V: Power cord interface;
|
|
