| Brand Name: | GEZHI or OEM |
| Model Number: | FSW-1x4T-1742nm |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 2-7 work days |
| Payment Terms: | T/T, Western Union |

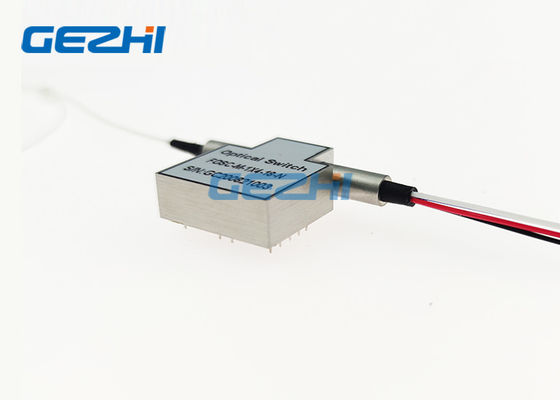

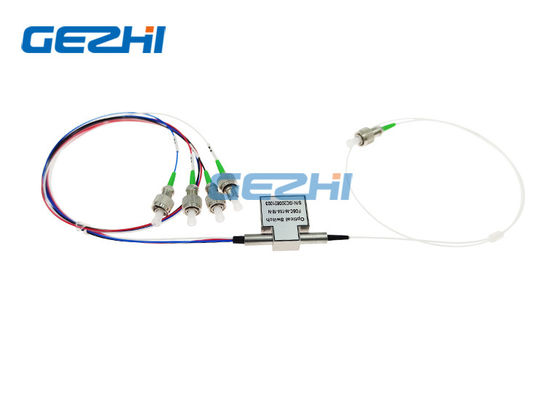

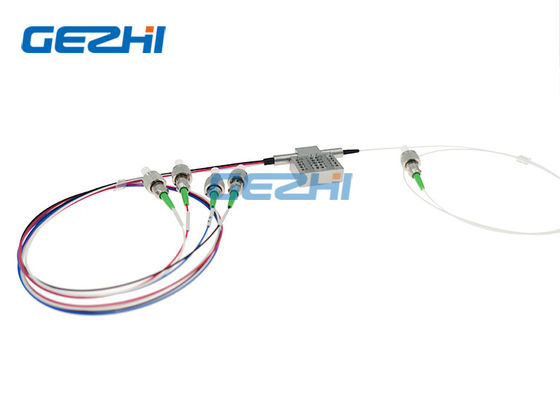

1742nm wavelength 1x4 optical switch for Gas detection sensor
The 1x4 Optical Switch of GEZHI Photonics Co.,Ltd , which with 1742nm wavelength. Its feature high level of performance required for Gas detection sensor. They are also highly suitable for applications in telecommunications, R&D in laboratory, and test environments, because of their low IL and excellent repeatability.
The 1x4 optical switch is bi-directional connects optical channel by directing or blocking an incoming optical signal into the output fiber. In addition to the many standard options available, we also customize switches to meet the customer’s specific needs.
|
Features |
Applications |
|
|
Specification
| 1x4 T Type Switch | Unit | Typical |
| Operation Wavelength | nm | 1742nm |
| Insertion Loss | dB | <0.8 |
| Wavelength Dependent Loss | dB | <0.2 |
| Polarization Dependent Loss | dB | <0.2 |
| Return Loss | dB | >50 |
| Cross Talk | dB | >55 |
| Switching Time | ms | Typical: 4 Max:10 |
| Repeatability | dB | <±0.02 |
| Durability | Cycles | >10 Million |
| Switching Type | Non-Latching | |
| Optical Power Handling | mW | <500mW |
| Operating Voltage | VDC | 5V |
| Operating Temperature | ℃ | -5~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Package Dimension | mm | 27L x 23W x 8.2H |
Note: 1. Customization is available.
GZ-FSW-1x4T-x-xx-x-x-xx-xx-x
| X | XX | X | X | XX | XX | X |
| Mode | Wavelength | Voltage Type | Control Model | Fiber Diameter | Fiber Length | Connector |
|
S=SM 9/125 M5=MM 50/125 M6=MM 62.5/125 |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm 760=760nm 1742=1742nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
25=250um 90=900um |
05=0.5m 10=1.0m X=Others |
0=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/PC LA=LC/APC X=Others |
1x4 optical switch Optical Route
Dimension
Video
|
|
