| Brand Name: | GEZHI or OEM |
| Model Number: | 16CH-CWDM-M-1RU |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
1x16 CWDM Unit Mux Demux Equipment Bi-directional over Single Fiber
1x16 CWDM Unit Mux Demux Equipment Bi-directional over Single Fiber is an optical multiplexer that can multiplex up to 16 CWDM sources on a single optical fiber for the CWDM wavelength range with only 3.5dB link insertion loss. Its with an express port for future development and fiber extend.
The CWDM Mux Demux standlone equipment has high channel isolation and can therefore be used in a bi-directional system. The 1x16 CWDM Unit Mux Demux Equipment Bi-directional over Single Fiber consist of a multiplexer and a de-multiplexer which transmit 16 signals over a single fiber.
|
Features |
Applications |
|
|

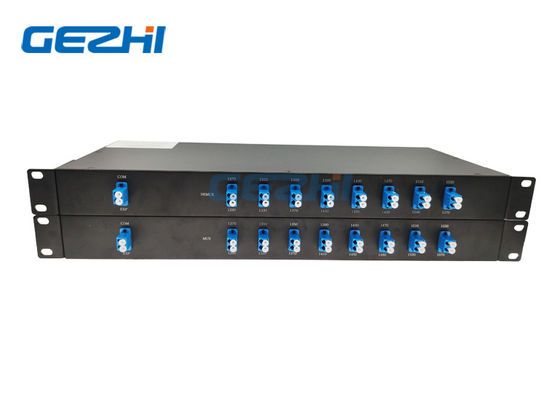

Standlone 16CH CWDM Mux Demux one pair Equipment
Specification
|
Parameter |
Unit |
16CH CWDM | ||
| Mux | Demux | |||
| Channel Wavelength | nm | 1270~1590nm | ||
|
Center wavelength Accuracy |
nm | ±0.5 | ||
| Channel Spacing | nm | 20 | ||
|
Channel Passband (@-0.5dB bandwidth |
nm | >14 | ||
| Max Insertion Loss | dB | <4.5 or with Skip <3.5 | <4.5 or with Skip <3.5 | |
| Channel Ripple | dB | 0.3 | ||
|
Isolation |
Adjacent | dB | >30 | |
| Non-adjacent | dB | >40 | ||
|
Inertion Loss Temperature Sensitivity |
dB/℃ |
<0.005 |
||
|
Wavelength Temperature Shifting |
nm/ ℃ |
<0.002 | ||
|
Polarization Dependent Loss |
dB | <0.1 | ||
|
Polarization Mode Dispersion |
dB | <0.1 | ||
| Directivity | dB | .>50 | ||
| Return Loss | dB | >45 | ||
| Maximum Power Handling | mW | 300 | ||
| Opterating Temperature | ℃ | -5~+75 | ||
| Storage Temperature | ℃ | -40~85 | ||
| Package dimension | mm | 19" 1U Rack Mount | ||
Note: 1. Customization is available.
2. Specified with connector
Standlone 16CH CWDM Mux Demux one pair Equipment Filter Cascading

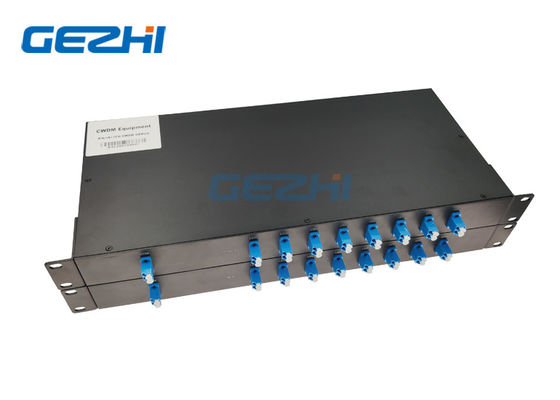

1x16 CWDM Unit Mux Demux Equipment Bi-directional Standlone Rackmount
16 Channel CWDM Mux and Demux Rack Mount Modules over Single FiberSolution

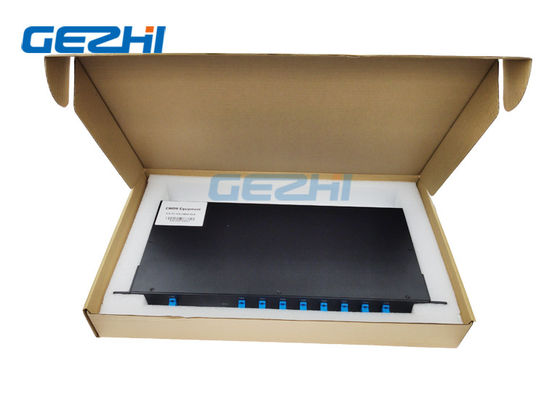

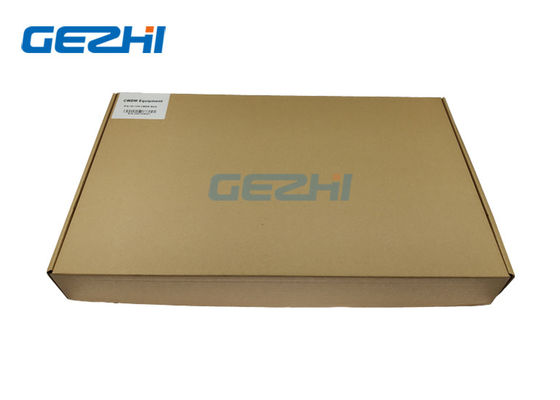

More Pictures of 1x16 Passive CWDM Modules
|
|
