| Brand Name: | GEZHI or OEM |
| Model Number: | 16CH-DWDM-MD-1U |
| MOQ: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union |
Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network
GEZHI’ Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network is a low loss, high density and standalone passive optical module. It is based on the thin film coating technology. The Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network offers an high channel isolation WDM solution for data centers and Metro access applications. The Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network packed a mux and demux into 19" 1U Rack Mount with LC/UPC adaptor. The operating wavelenght is C21~C36. The Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network is ideal for long-haul transport of fiber optic singals all over a dual fiber.
|
Features |
Applications |
|
|
Specification
| Parameter | Unit | 16 Channel Optical DWDM | |
| Channel Number | -- | 16CH | |
| Operation Wavelength | nm | C21~C36 | |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM | |
| Channel Passband | nm | 0.8 (100Ghz) | |
| Insertion Loss @PB | dB | <4.8 or <3.5 with Skip | |
| Isolation @Adjacent Channel | dB | >30 | |
| Isolation @Non-adjacent Channel | dB | >40 | |
| Isolation @Reflect Channel | dB | >15 | |
| Passband Ripple | dB | <0.5 | |
| Polarization Dependent Loss | dB | <0.15 | |
| Polarization Mode Dispersion | ps | <0.1 | |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 | |
| Power Handling | mW | <500 | |
| Connector | -- | LC/UPC | |
| Fiber Type | -- | SMF-28e or Customized | |
| Operating Temperature | ℃ | -5 ~ +75 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Package Dimension | mm | 19" 1U Rackmount | |
GEZHI's Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network offers high-capacity terminal DWDM solutions for network expansion. This Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network is used for long-haul transmission where wavelengths are packed tightly together over the C-band, up to 48 wavelengths in 100GHz grid (0.8nm). The Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network is protocol transparent and suited for applications including 10/1G Ethernet, SDH/SONET, 16/8/4/2/1G , CATV, Fibre Channel, FTTx, etc.

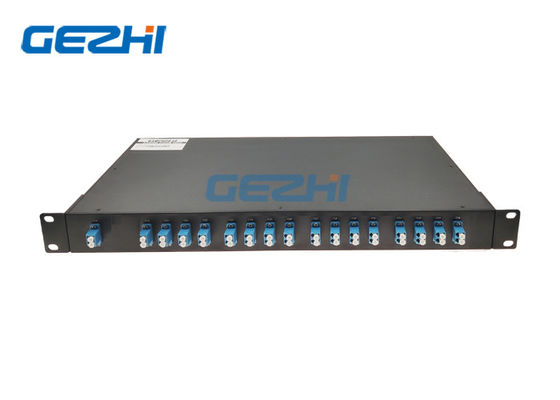

16 Channels Optical DWDM Mux Demux splitter 1U Frame
Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network
Dual Fiber DWDM
|
|
